0.5 H.P. 1 Gallon / Electric Pump with Pendant Switch
- Quiet operation meets OSHA regulations (80dBA)
- 2 speed operation allows for faster cylinder advance
- Full load starting capacities
- Internal filter keeps contamination from damaging pump
- 10 foot hand held remote control allows user to control cylinder in up or down position
| Used with Cylinder | Single Acting |
| Motor Size, (hp) | .5 |
| Usable Oil Capacity (Gal.) | 1 |
| Pressure Rating, 1st Stage (PSI) | 350 |
| Pressure Rating, 2nd Stage (PSI) | 10,000 |
| Oil Output Flow Rate, 1st Stage (In.3/Min.) | 293 |
| Oil Output Flow Rate, 2nd Stage (in3/min) | 18 |
| Valve Type | 3-way, 3-position |
| Valve Function | Advance/Hold/Return |
| Current Draw, (amps) | 9 |
| Motor Voltage, (Volts) | 115 |
| Weight, (Lbs.) | 59.5 |

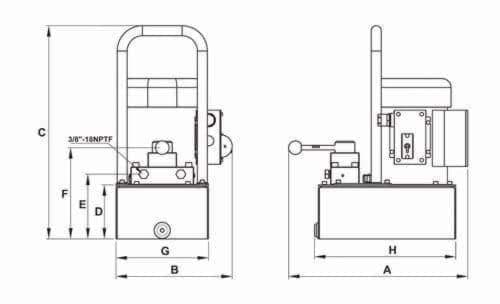

| Dimensions (In.), A | 14.92 |
| Dimensions (In.), B | 10.28 |
| Dimensions (In.), C | 19.1 |
| Dimensions (In.), D | 4.72 |
| Dimensions (In.), E | 5.67 |
| Dimensions (In.), F | 7.99 |
| Dimensions (In.), G | 8.07 |
| Dimensions (In.), H | 12.36 |
