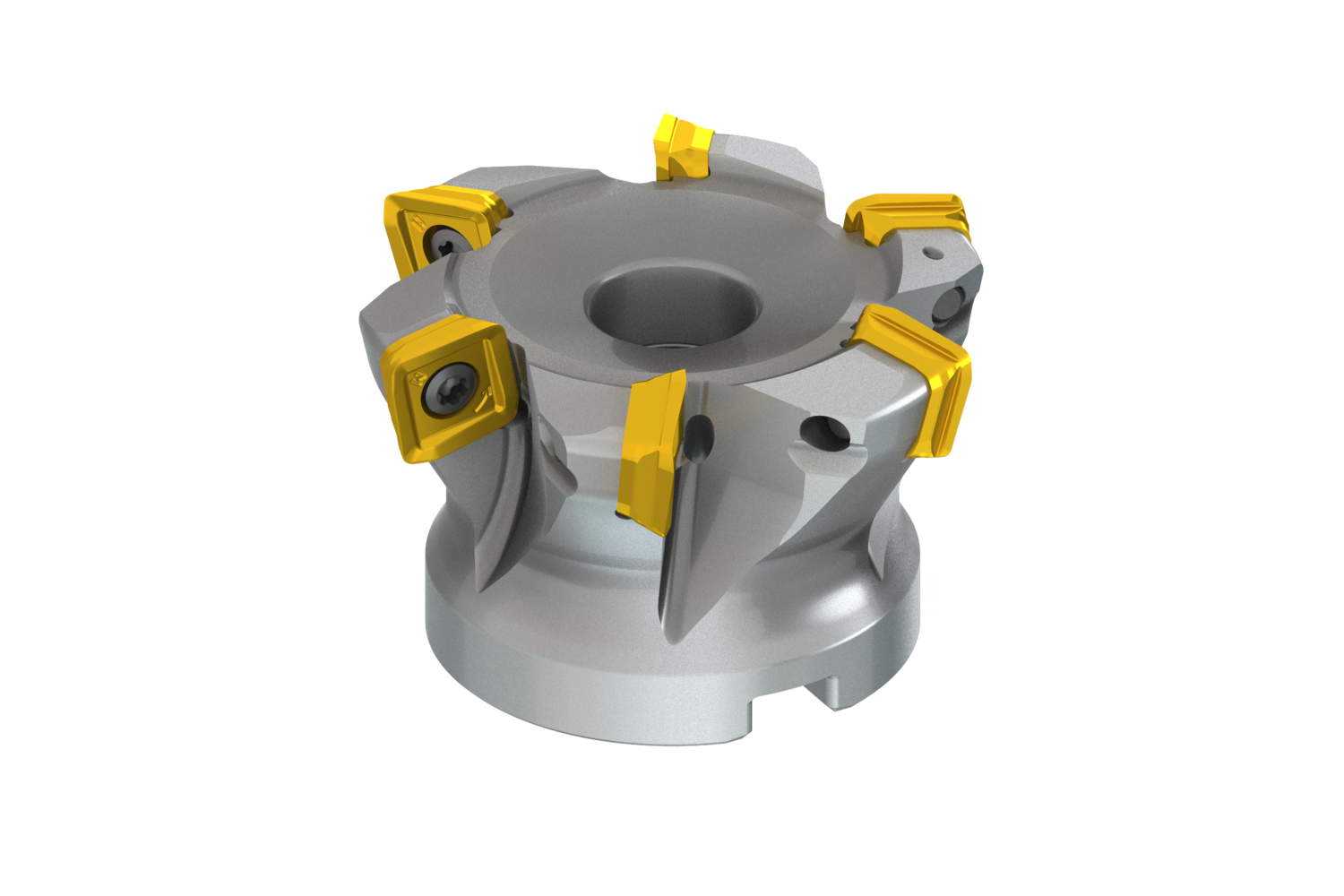

Highly versatile 12° high feed mill utilising single sided SO.. 12 style inserts with APMX of 1,9 mm Cutting diameter 1.803 inch with 12° approach angle and 0.75 inch connection bore according to DIN 8030-C, 1.575 inch functional length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Product Name ISO: 250A06R-ISMOSO12-C
- Ordering Code ANSI: 250A06R-ISMOSO12-C
- EDP Number: 8551881
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 45.8 |
| Cutting Diameter (In.) | 1.803 |
| Connection Diameter (Mm.) | 19.05 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 A |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
