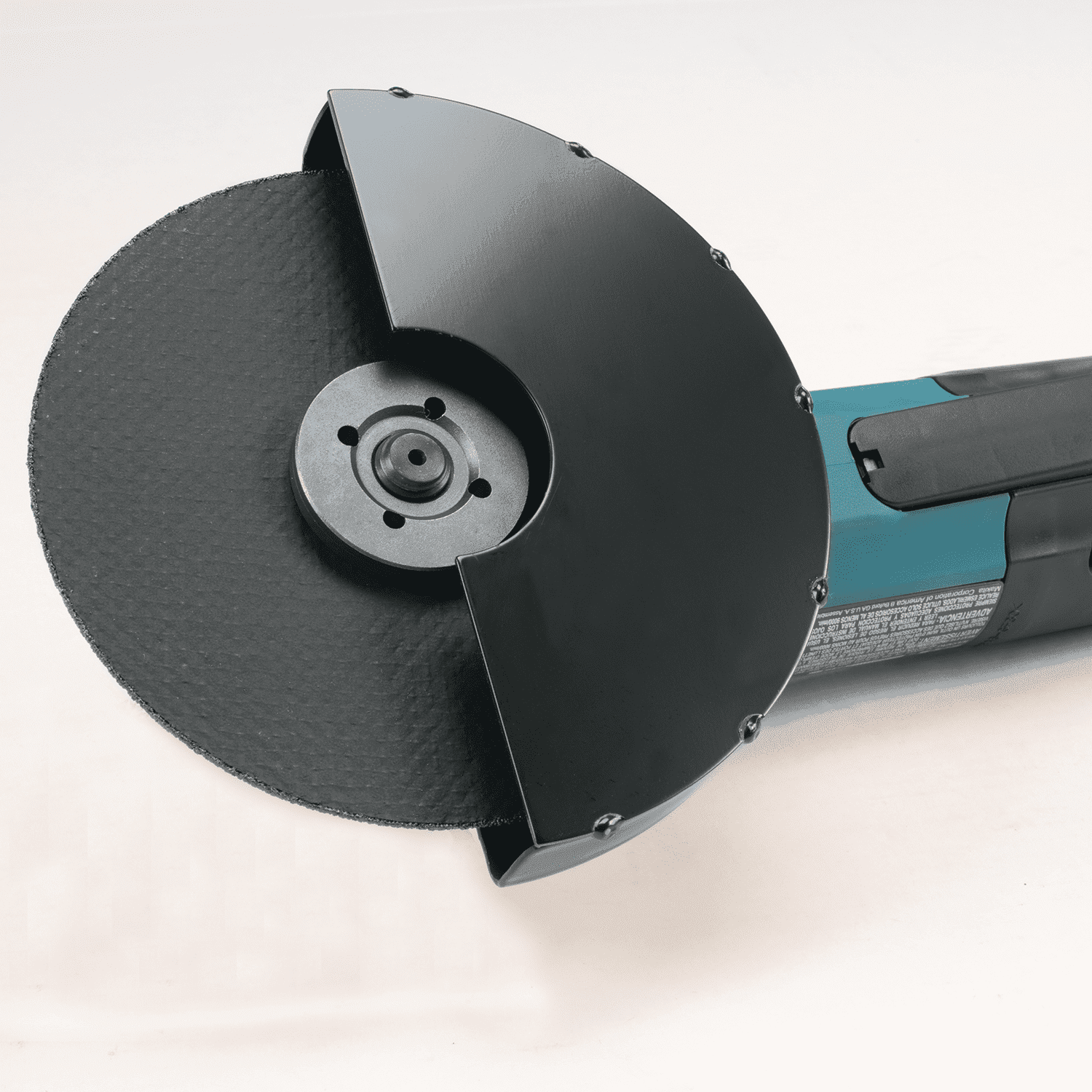

Makita’s 6” SJS Cut-Off/Angle Grinder combines 13 AMP power with comfort and motor-protection features for longer-lasting industrial performance. The 9566PC is engineered with Makita’s innovative SJS™ mechanical clutch system to protect the gears for longer tool life. The 9566PC is powered by a 13 AMP motor that delivers 9,000 RPM, with soft start for smooth start-ups. Labyrinth construction protects the motor with a complex set of channels, prohibiting dust and contamination. In addition, the protective zig-zag varnish seals the motor and bearings from dust and debris by creating a barrier under rotation. (includes both cutting/grinding wheels & guards) Powerful 13.0 AMP motor delivers more output and 9,000 RPM for the most demanding applications. SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop. Constant speed control automatically applies additional power to the motor to maintain speed under load. Soft start suppresses start-up reaction for smooth start-ups and longer gear life. Electronic current limiter helps protect the motor from overload. Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life. Large no-lock on paddle switch with lock-off for comfortable operation. Spiral bevel gears for less vibration and a more efficient transfer of power. Two position adjustable side handle for operator covenience. "Tool-less" grinding wheel guard for more convenient adjustments. Includes both cutting/grinding wheels and guards.
- POWER - 13 AMP motor delivers 9,000 RPM
- PERFORMANCE - SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage
- DURABILITY - Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
- COMFORT - Large paddle switch for easy operation; weighs only 5.5 lbs.
- INCLUDES - Both cutting/grinding wheels & guards, side handle, inner flange, lock-nut and wrench
- INCLUDES w/ DETAILS - 6" x 7/8" x 1/16" Super Thin Cut-off Wheel, Metal (724117-A), 6" Cut-Off Wheel Guard (165486-6), 6" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95978), 6" Tool-less Wheel Guard (Tall) (135172-3), Lock Nut (224574-9), Lock Nut Wrench (782424-9), Inner Flange (224390-9), Side Handle (153489-2)
Wheel Diameter (In.) | 6 |
Spindle Thread (UNC) | 5/8 - 11 |
Overall Length (In.) | 12-1/8 |
Switch Type | Body grip/paddle |
Power Type | Corded |
There are no reviews yet
- 91384cf0-e05c-473c-a252-6b7f7cb80d1b_9566PC_PB-1.pdf (Parts List)
