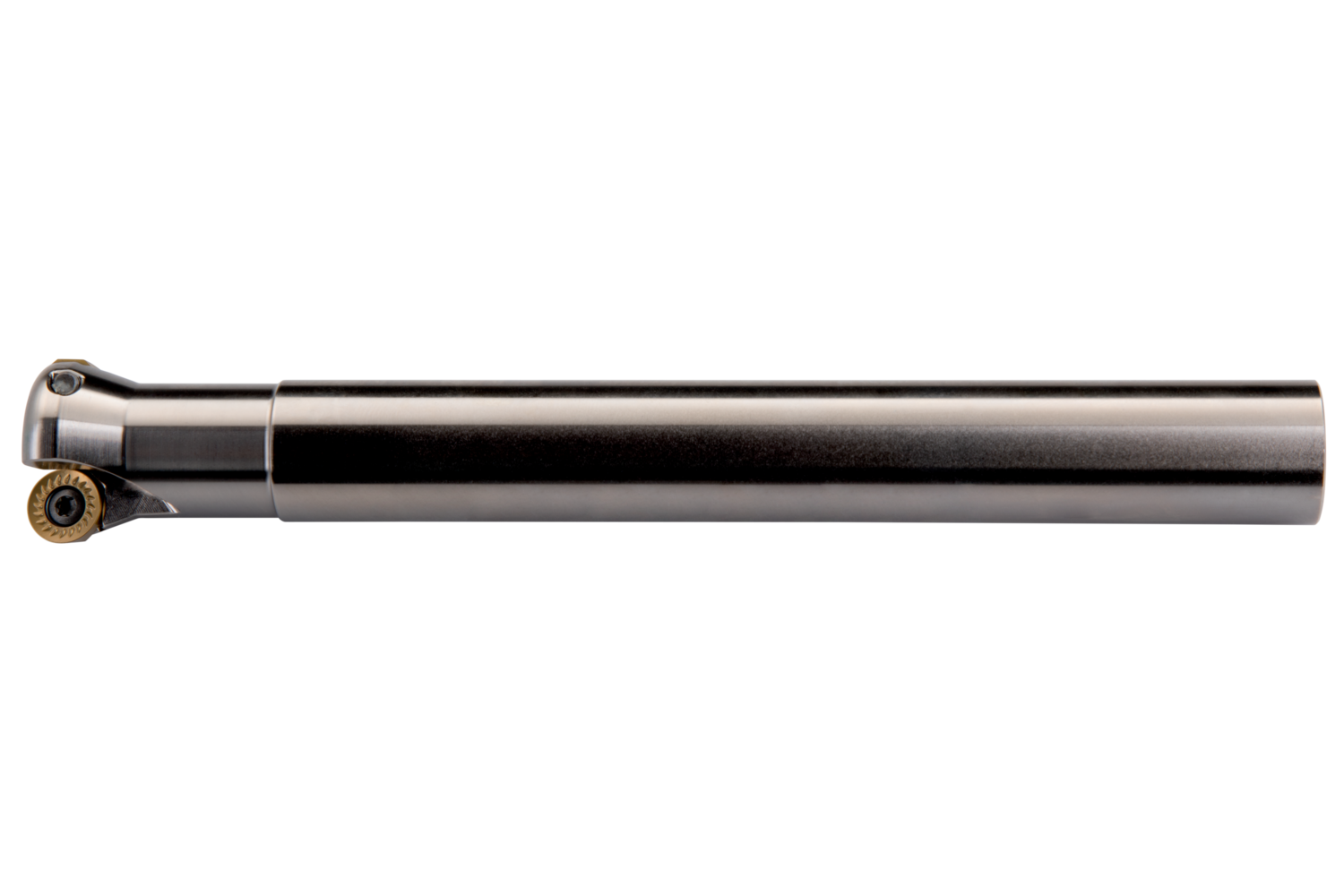

Copy face mill with double negative geometry which utilises 2 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.000'' with .750'' parallel shank according to DIN 1835A, 6.700'' overall length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
- Product Name ISO: 100E2R134C075-ISRC10-C
- Ordering Code ANSI: 100E2R134C075-ISRC10-C
- EDP Number: 7455328
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

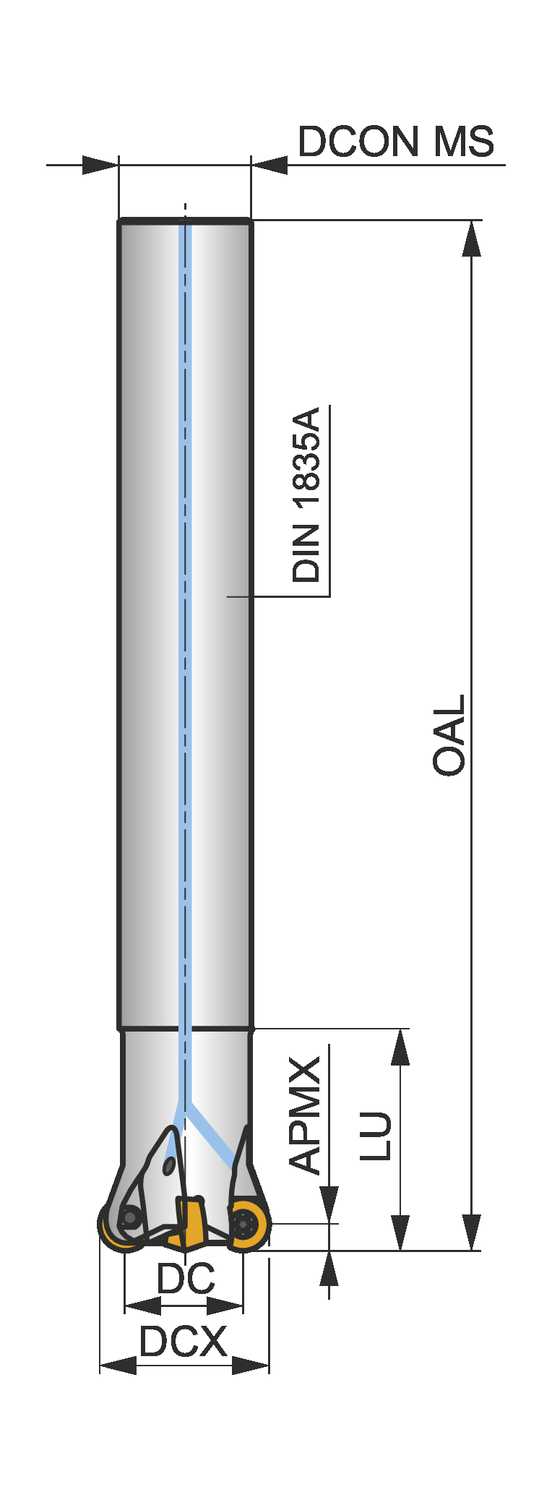

Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 15.4 |
Cutting Diameter (In.) | 0.606 |
Connection Diameter (Mm.) | 19.1 |
Overall Length (Mm.) | 170 |
Connection Diameter (In.) | 0.75 |
Overall Length (In.) | 6.7 |
Shank | Cylindrical Shank DIN 1835A |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
