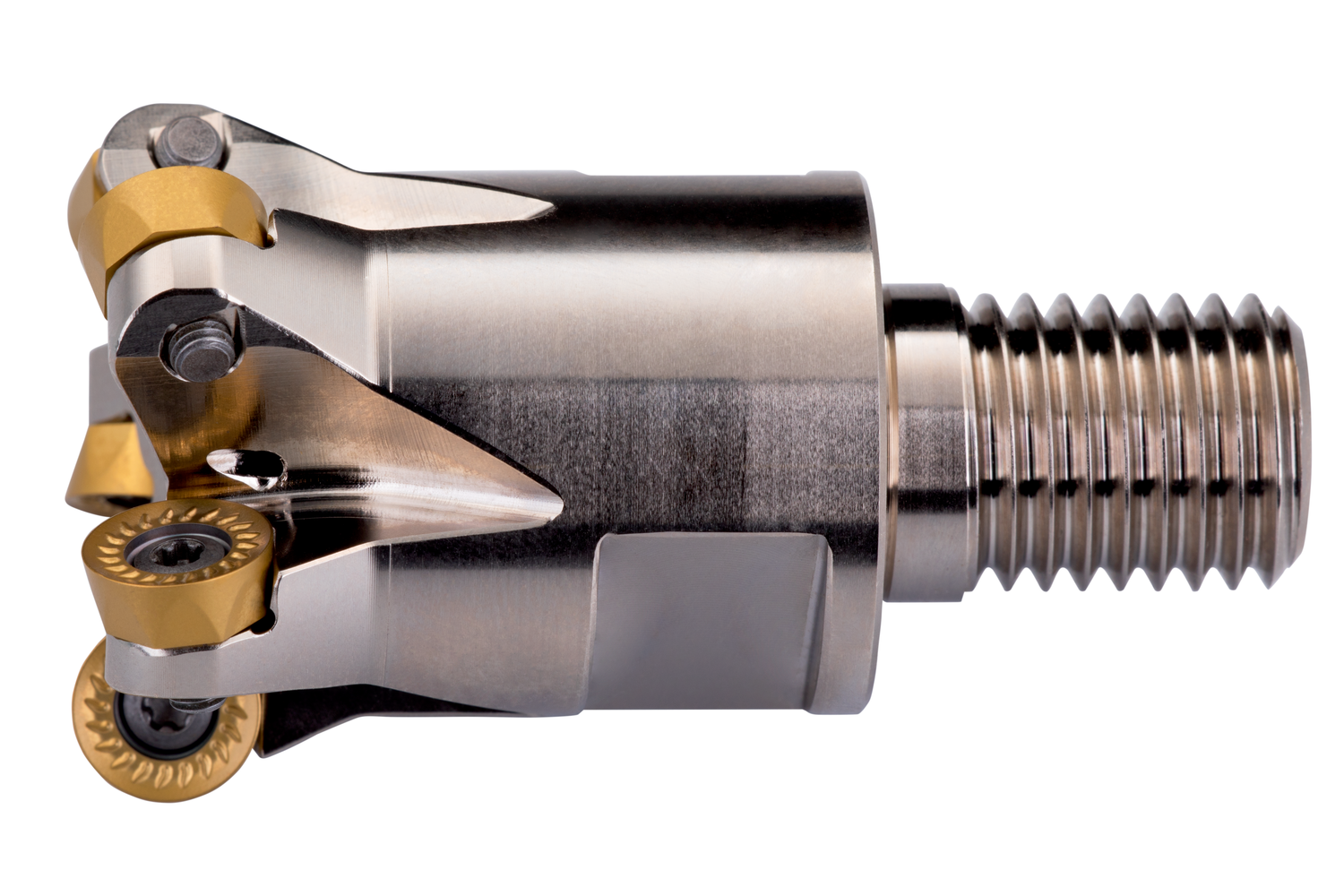

Copy face mill with double negative geometry which utilises 5 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.500'' with M16 threaded shank for standard modular tool-holders, 1.654'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
- Product Name ISO: 150E5R165M16-ISRC10-C
- Ordering Code ANSI: 150E5R165M16-ISRC10-C
- EDP Number: 7455367
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

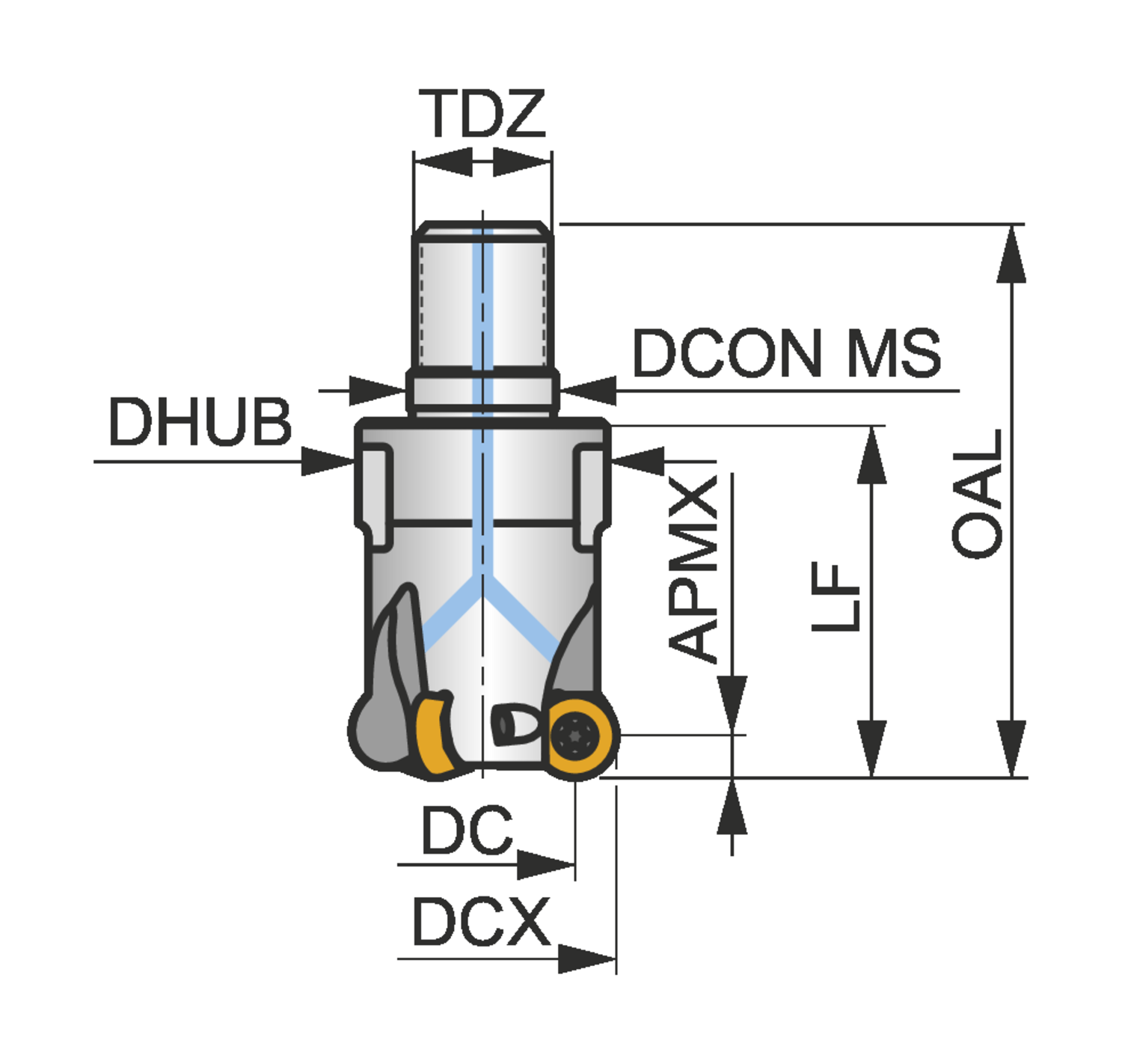

Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 28.1 |
Cutting Diameter (In.) | 1.106 |
Connection Diameter (Mm.) | 17 |
Overall Length (Mm.) | 65 |
Connection Diameter (In.) | 0.669 |
Overall Length (In.) | 2.559 |
Shank | Threaded Coupling |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
Thread Diameter Size | M16 |
