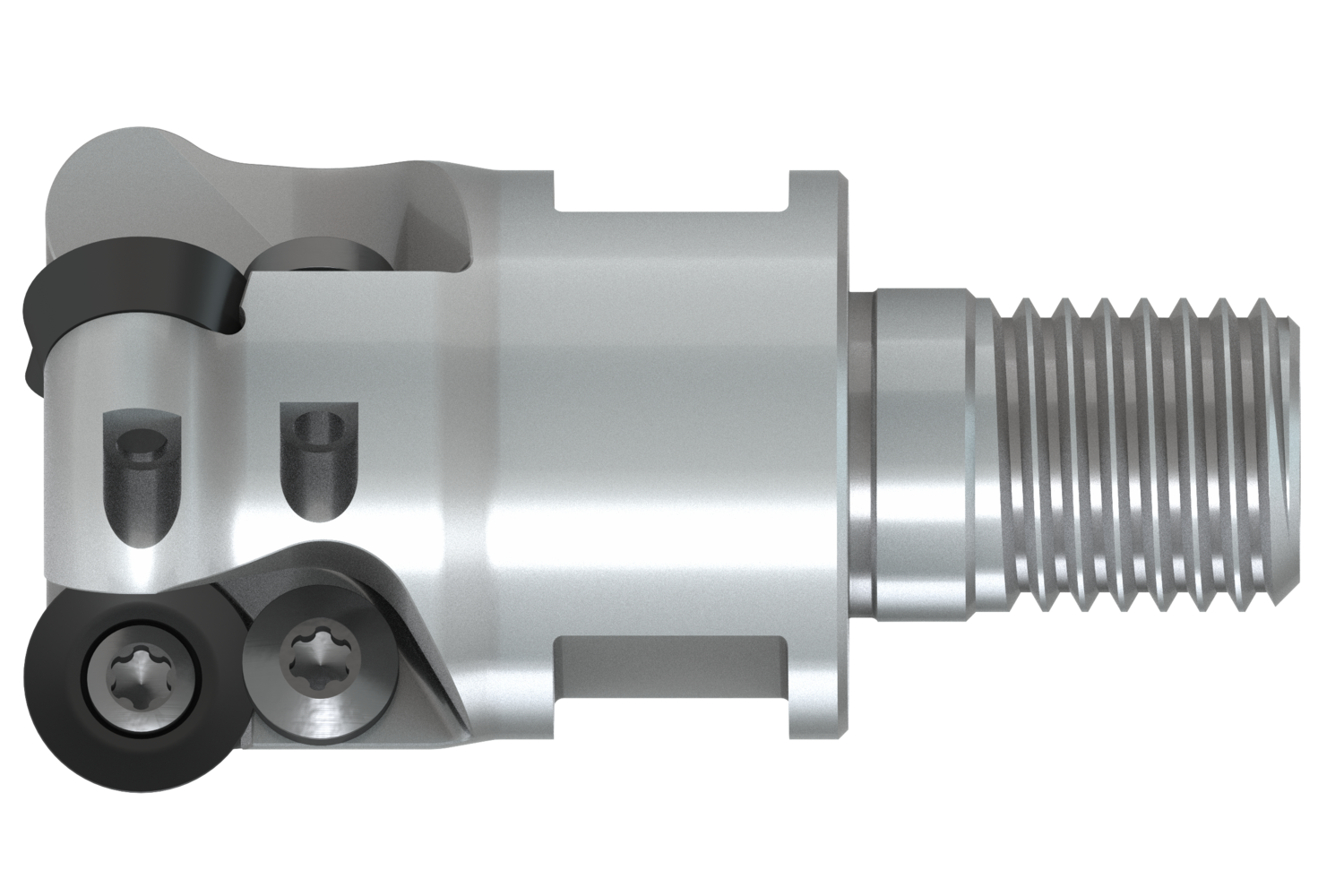

Copy face mill with double negative geometry which utilises 3 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 1.500" with M16 threaded shank for standard modular tool-holders, 1.693" functional and 2.598" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.118"
- Product Name ISO: 150E3R169M16-ISCRD12-CF
- Ordering Code ANSI: 150E3R169M16-ISCRD12-CF
- EDP Number: 7979737

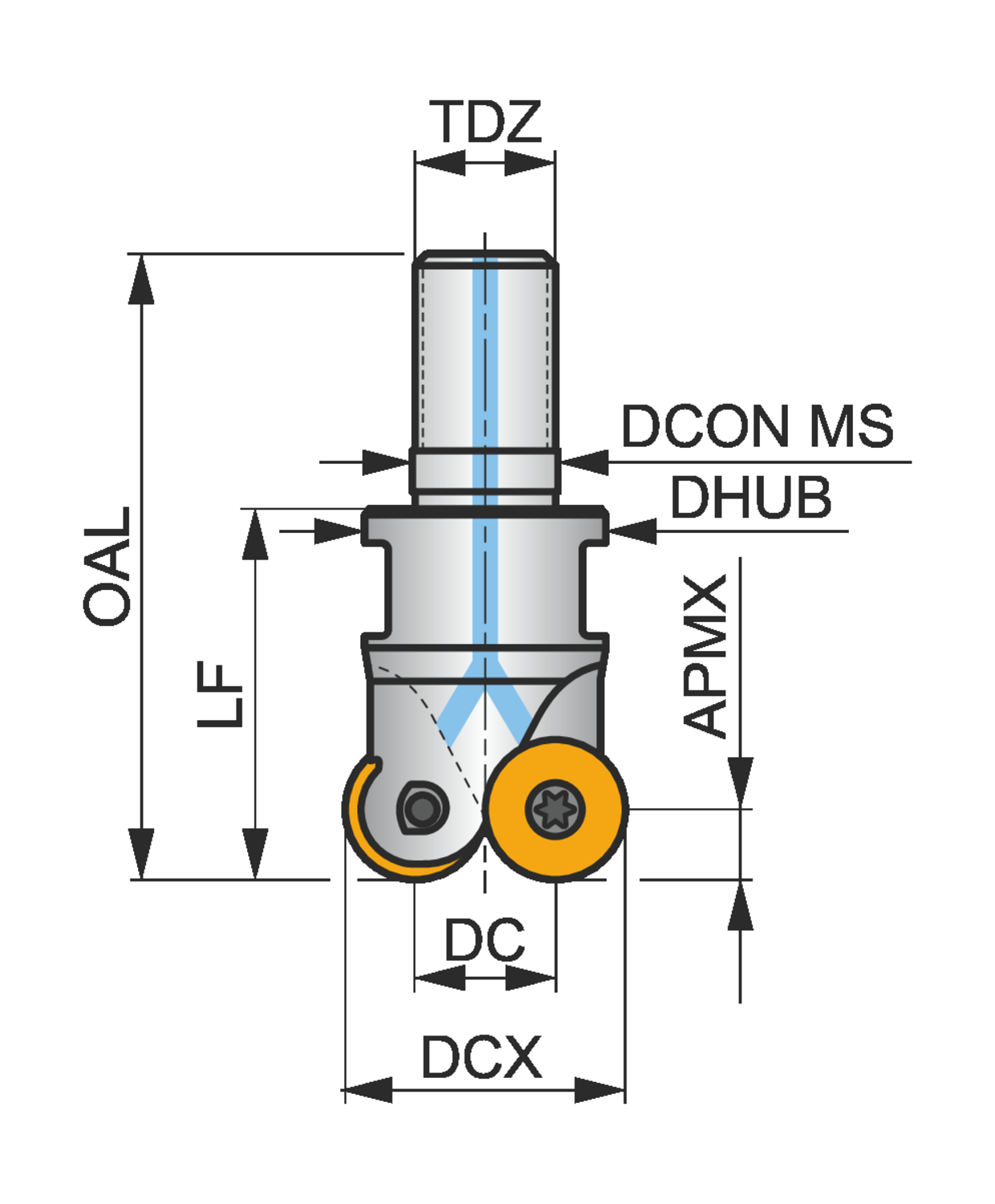

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 1.028 |
| Connection Diameter (Mm.) | 17 |
| Overall Length (Mm.) | 66 |
| Max Depth of Cut (In.) | 0.118 |
| Connection Diameter (In.) | 0.669 |
| Overall Length (In.) | 2.598 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | System SC |
| Cooling | 1 |
| Thread Diameter Size | M16 |
