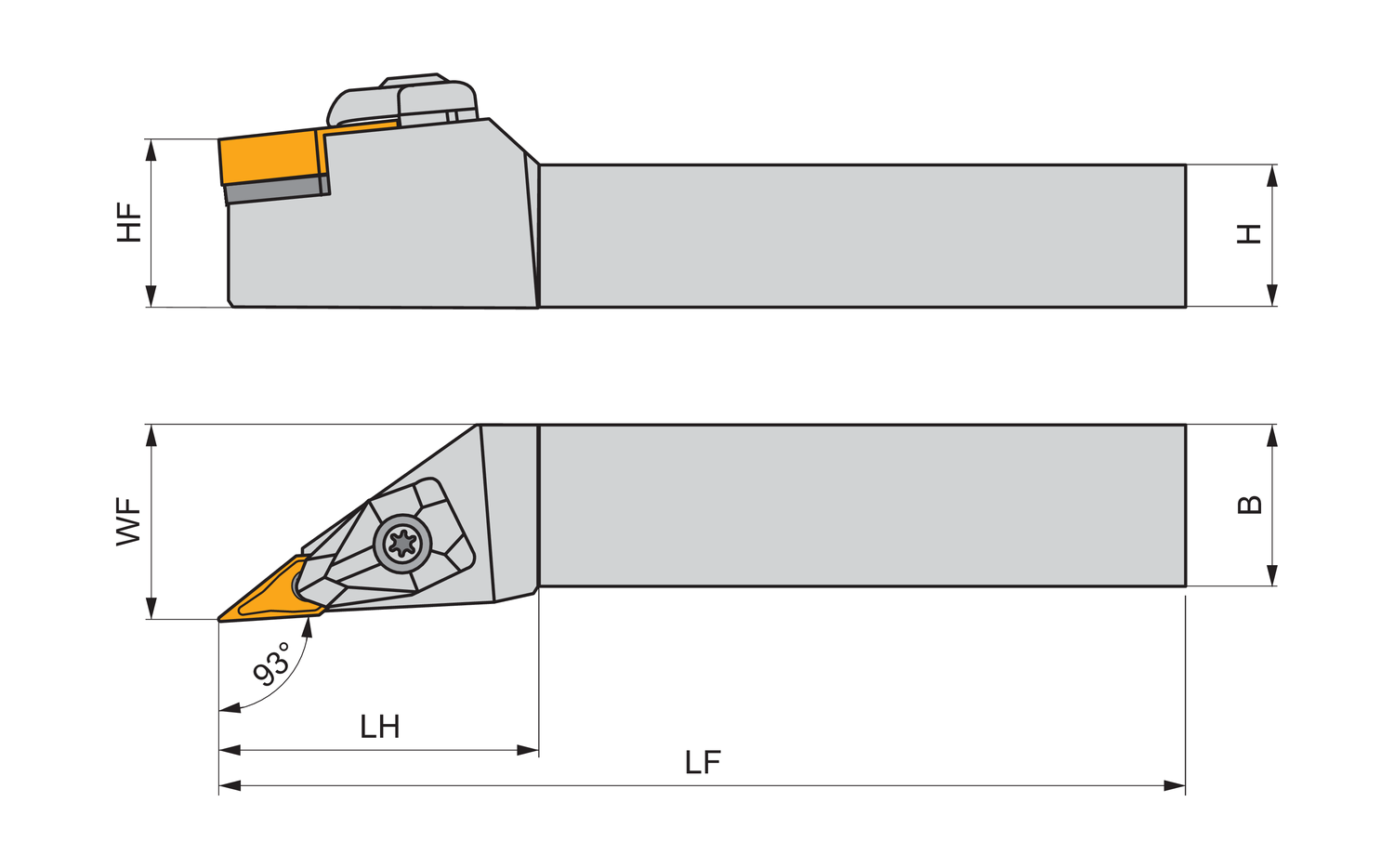

Double clamp turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation VN.. 33. ), right hand 93° side cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
- Product Name ISO: DVJNR 20 3D
- Ordering Code ANSI: DVJNR 20 3D
- EDP Number: 6788531
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Inch |
Clamping Type | System D |
