Double-sided disc milling insert, for a cutting width of .5512" to maximum .7283" with cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90CN(XN)
- Product Name ISO: CNHQ 1005AZTN:M8340
- Ordering Code ANSI: CNHQ 1005AZTN:M8340
- EDP Number: 6800827
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

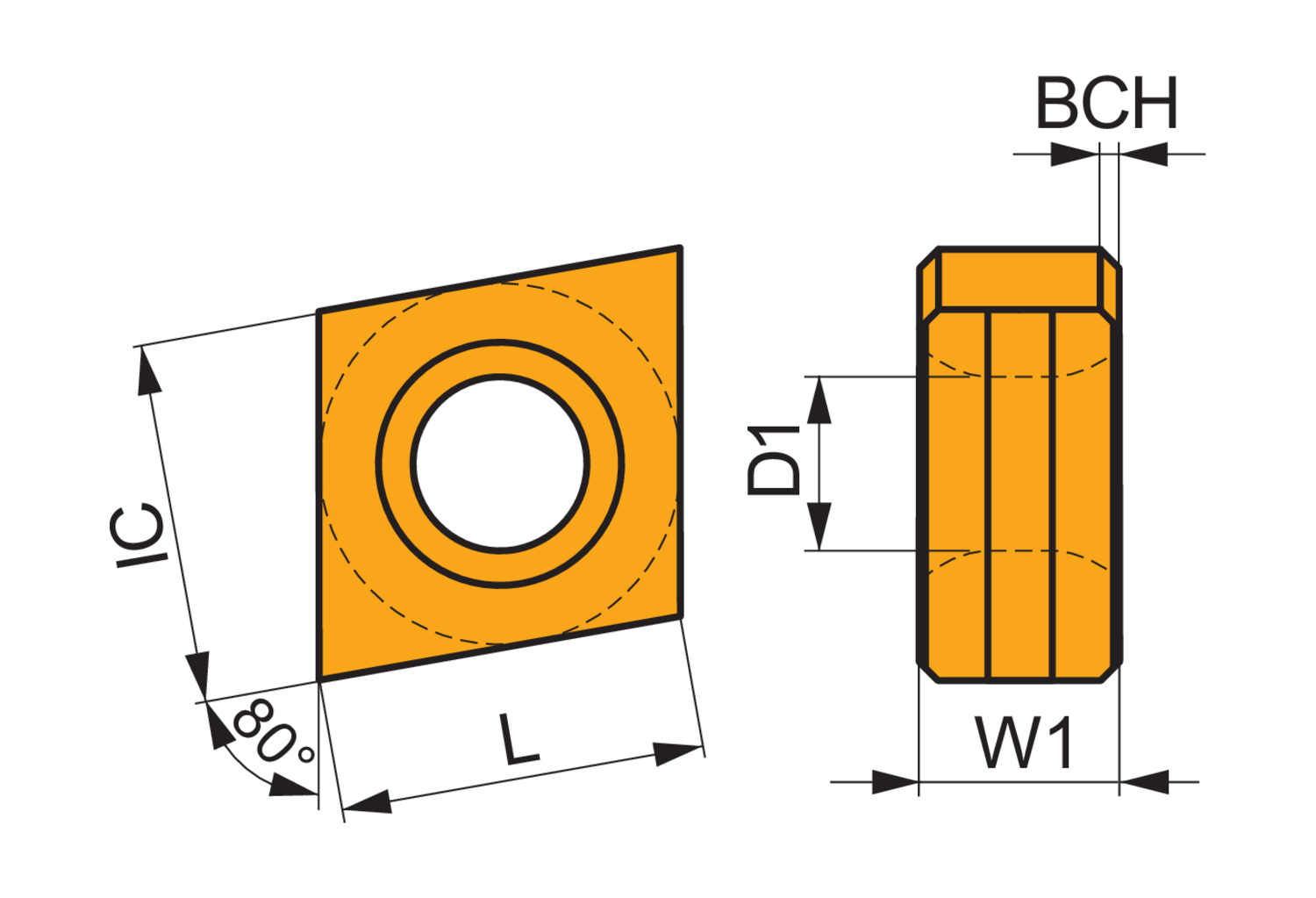

| Product Measurement Standard | Metric |
| Fixing Hole Diameter (Mm.) | 4.7 |
| Inscribing Circle Dia. (Mm.) | 10 |
| Insert Width (Mm.) | 5.4 |
| Coating | M8340 |
