Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills SHN06C
- Product Name ISO: HNGX 0604ANSN-R:M5315
- Ordering Code ANSI: HNGX 0604ANSN-R:M5315
- EDP Number: 6753656
- Coating: M5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 3 |

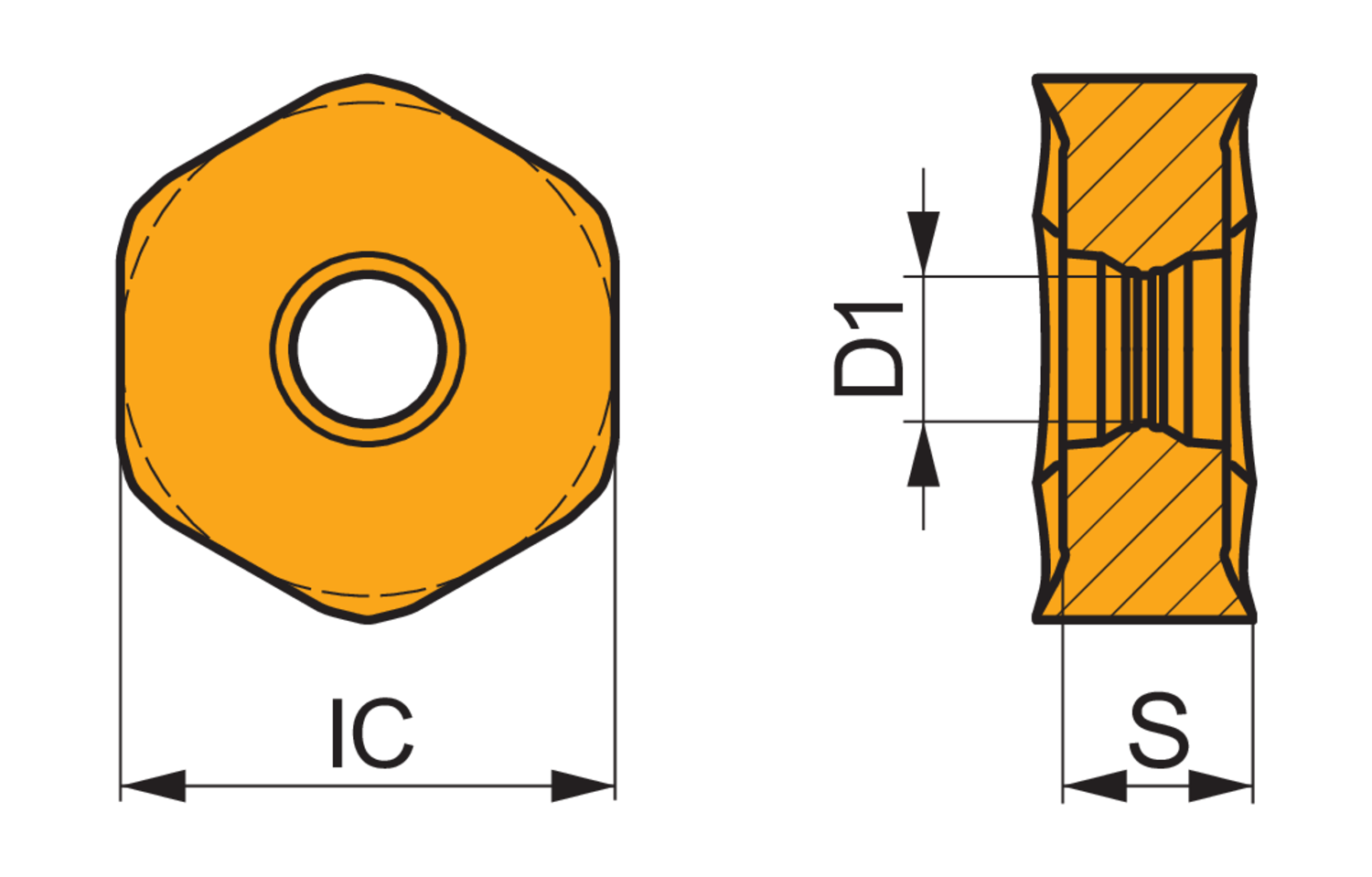

Fixing Hole Diameter (Mm.) | 3.7 |
Inscribing Circle Dia. (Mm.) | 10.5 |
Insert Thickness (Mm.) | 4.76 |
Max Depth of Cut (In.) | 0.118 |
Coating | M5315 |
