Double-sided milling insert XNGX 0906, special shape and wiper design for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel and cast-iron with face mills SHN09C
- Product Name ISO: XNGX 0906ANSN:8215
- Ordering Code ANSI: XNGX 0906ANSN:8215
- EDP Number: 6753568
- Coating: 8215
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |

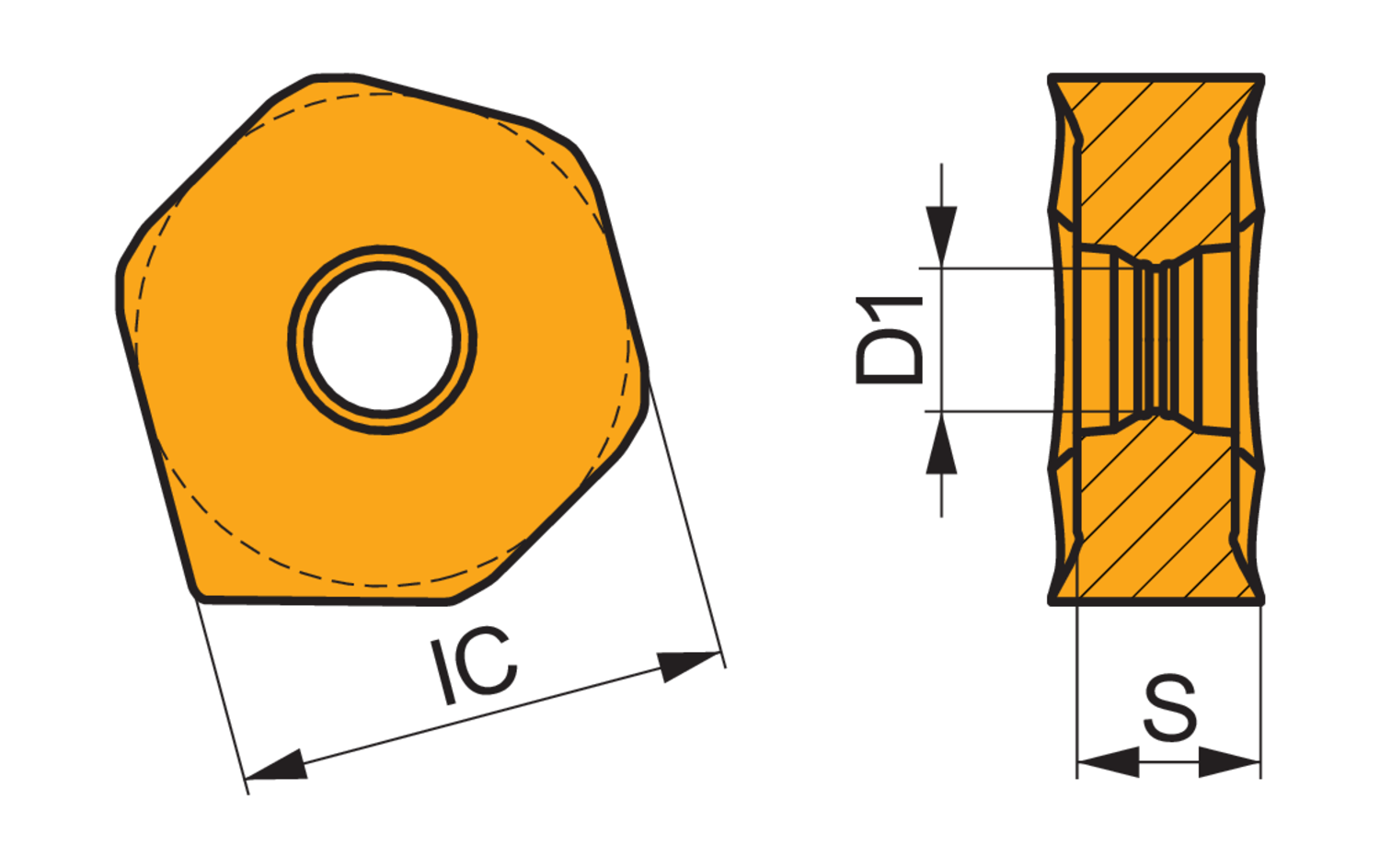

| Fixing Hole Diameter (Mm.) | 4.9 |
| Inscribing Circle Dia. (Mm.) | 16.5 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | 8215 |
