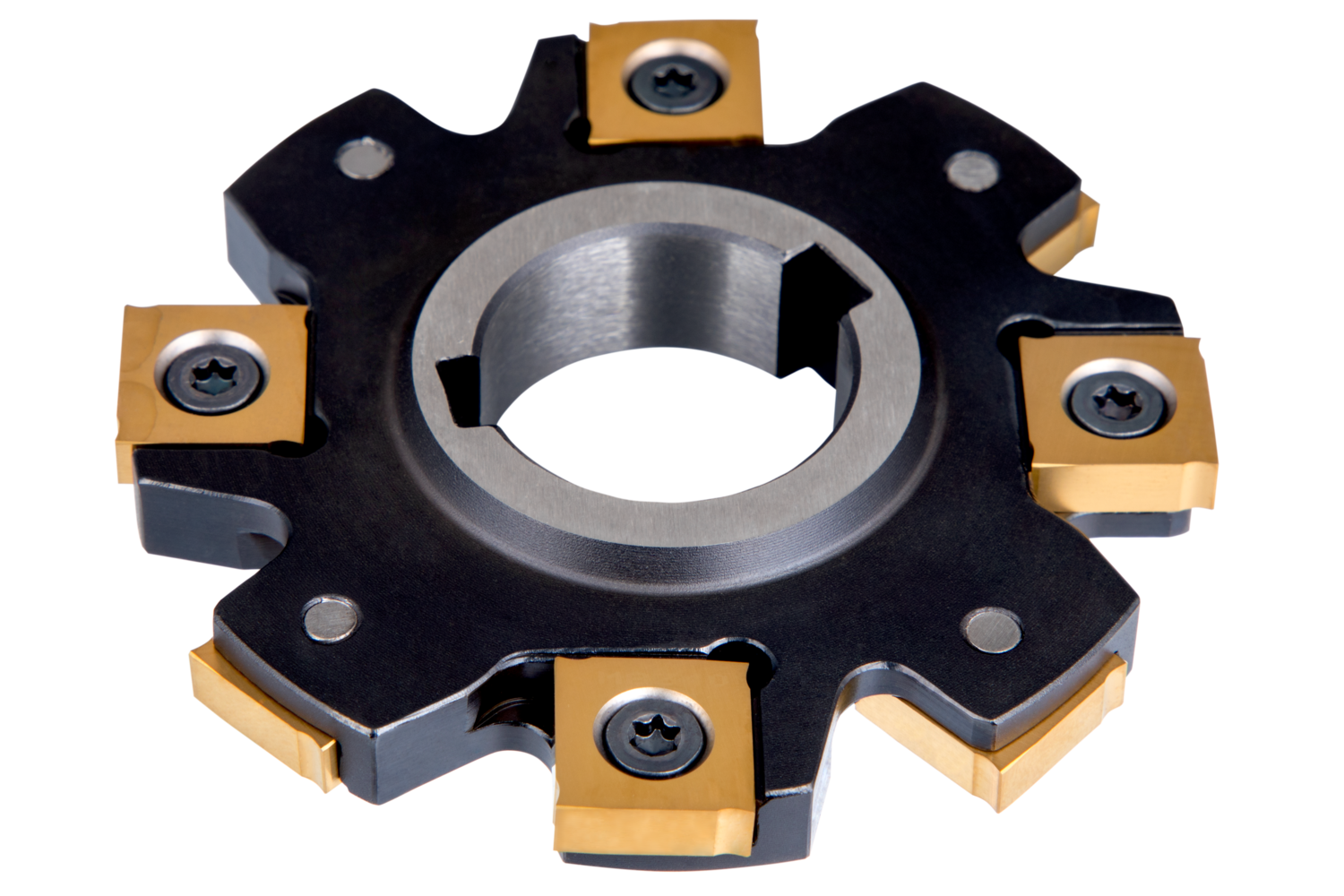

Disc mill with double negative geometry which utilises 4 off SNHQ 1102.. double-sided inserts, cutting diameter 3.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .313''
- Product Name ISO: 300F04N-IS90SN12N5
- Ordering Code ANSI: 300F04N-IS90SN12N5
- EDP Number: 6789674
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 3 |
| Shank | Shell Mill DIN 8030 – Disc Mill |
| Cutting Direction | Neutral |
| Clamping Type | Screw Clamping Through Hole |
