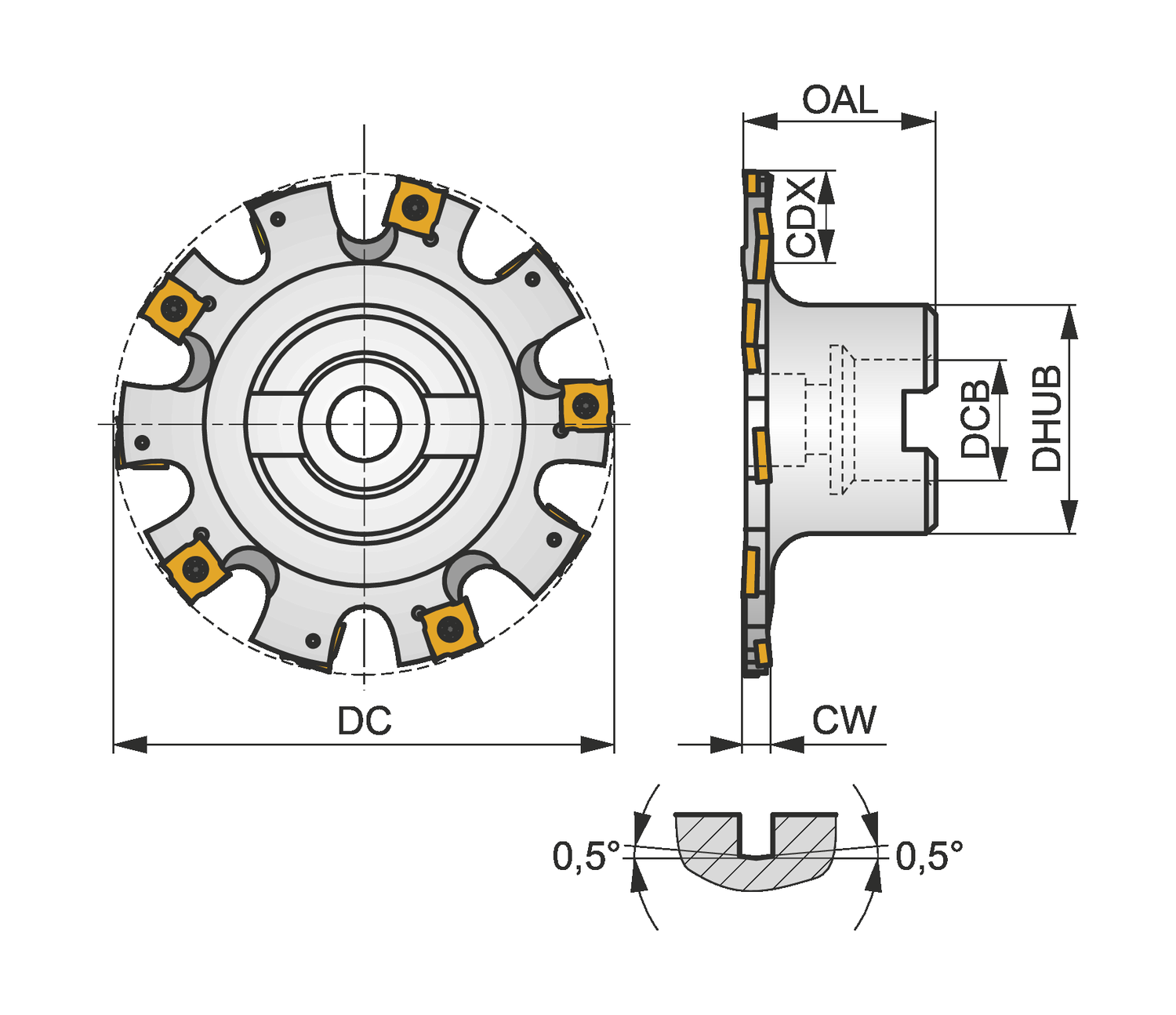

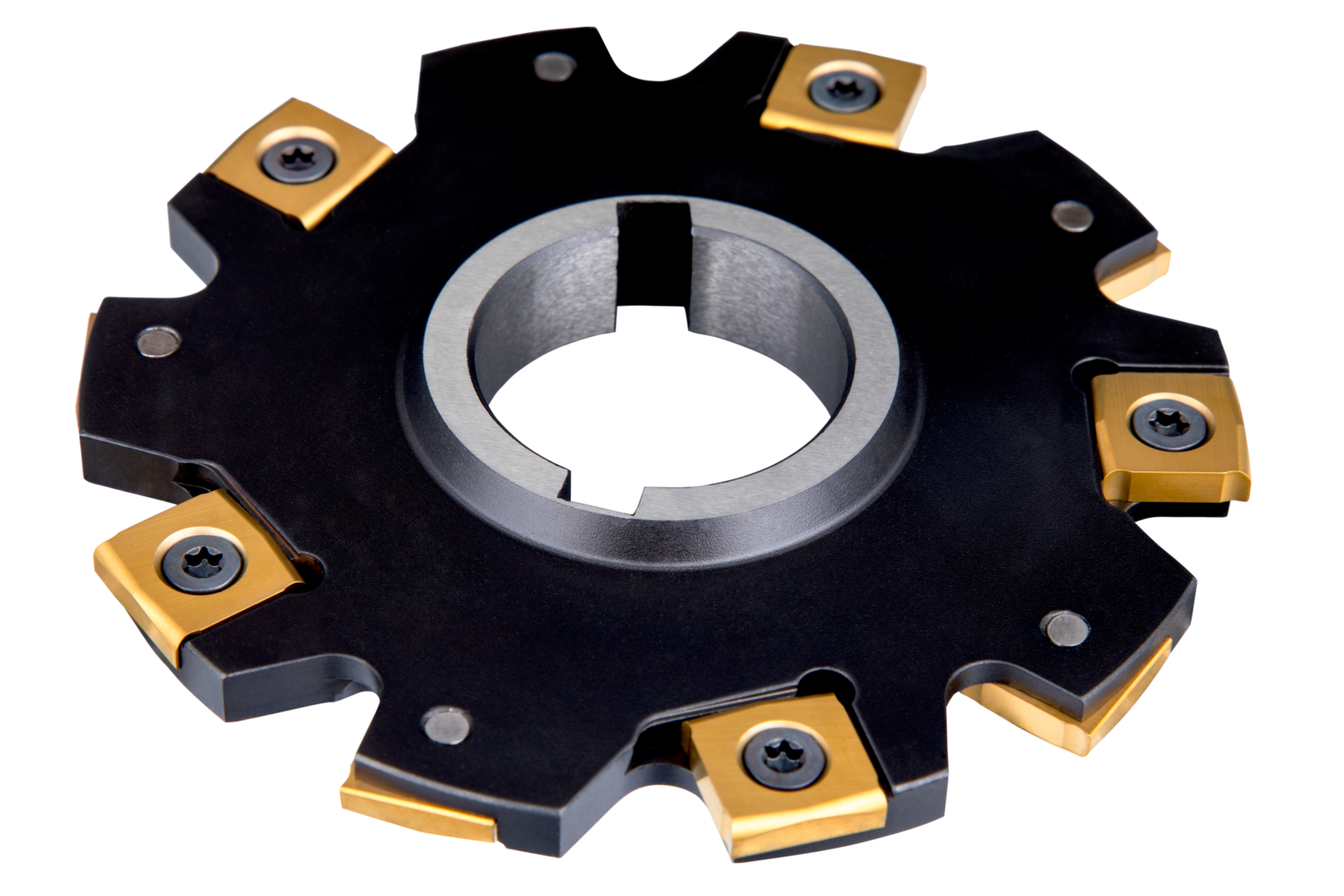

Disc mill with double negative geometry which utilises 5 off SNHQ 1102.. double-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.250'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .250''
- Product Name ISO: 400G05N-IS90SN12N4
- Ordering Code ANSI: 400G05N-IS90SN12N4
- EDP Number: 6789676
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Inch |
Cutting Diameter (In.) | 4 |
Shank | Shell Mill DIN 8030 – Disc Mill |
Cutting Direction | Neutral |
Clamping Type | Screw Clamping Through Hole |
