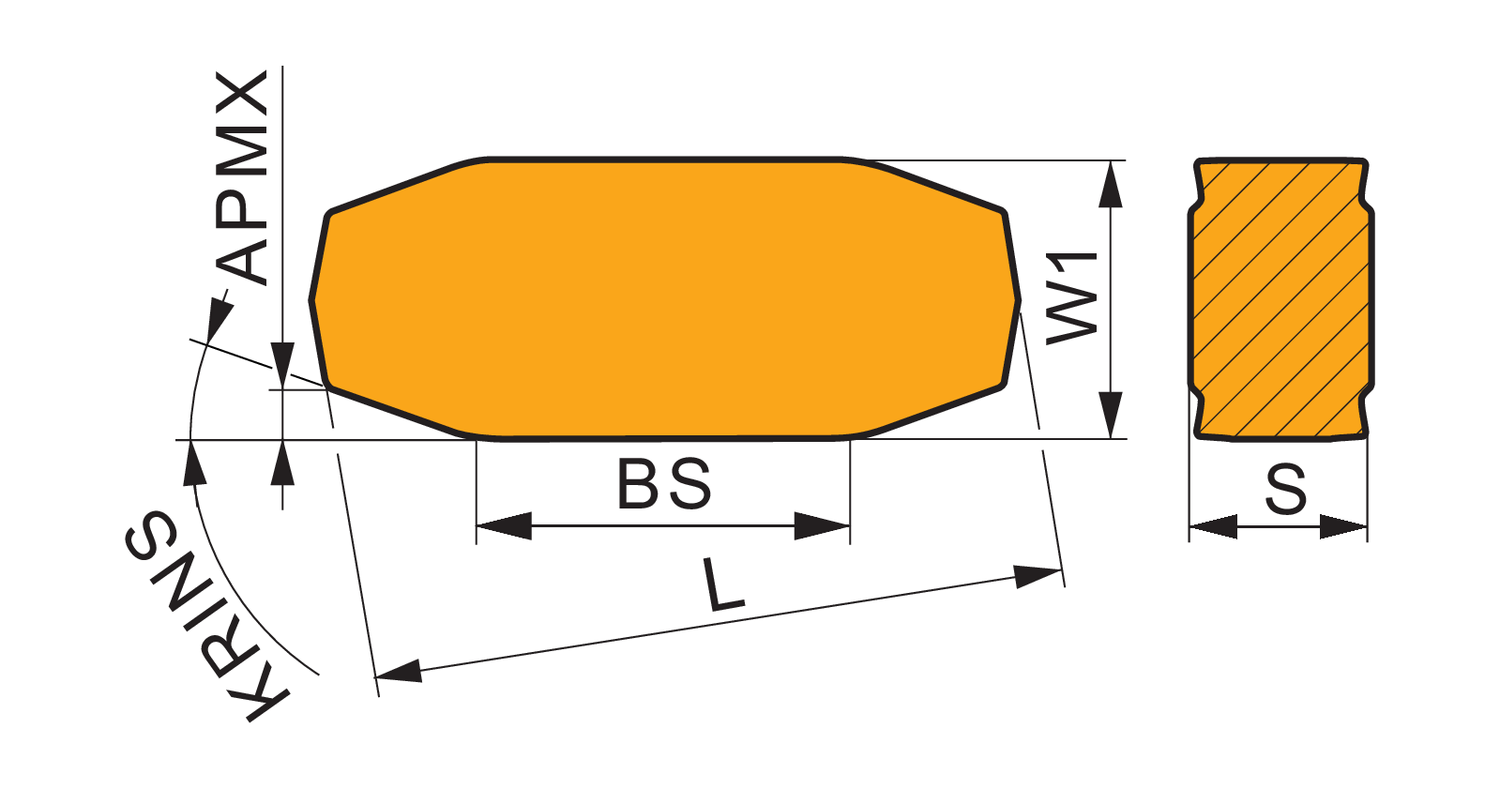

Double-sided negative barpeeling insert, rectangular with a length of 30.12mm, 7.94mm thick for 1.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM, in grade T6310, a PVD coated extra fine grained WC-Co carbide
- Product Name ISO: LNGF 300715-PM:T6310
- Ordering Code ANSI: LNGF 300715-PM:T6310
- EDP Number: 7346979
- Coating: T6310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.5 |
| Insert Thickness (Mm.) | 7.54 |
| Insert Width (Mm.) | 12 |
| Max Depth of Cut (In.) | 0.059 |
| Coating | T6310 |
