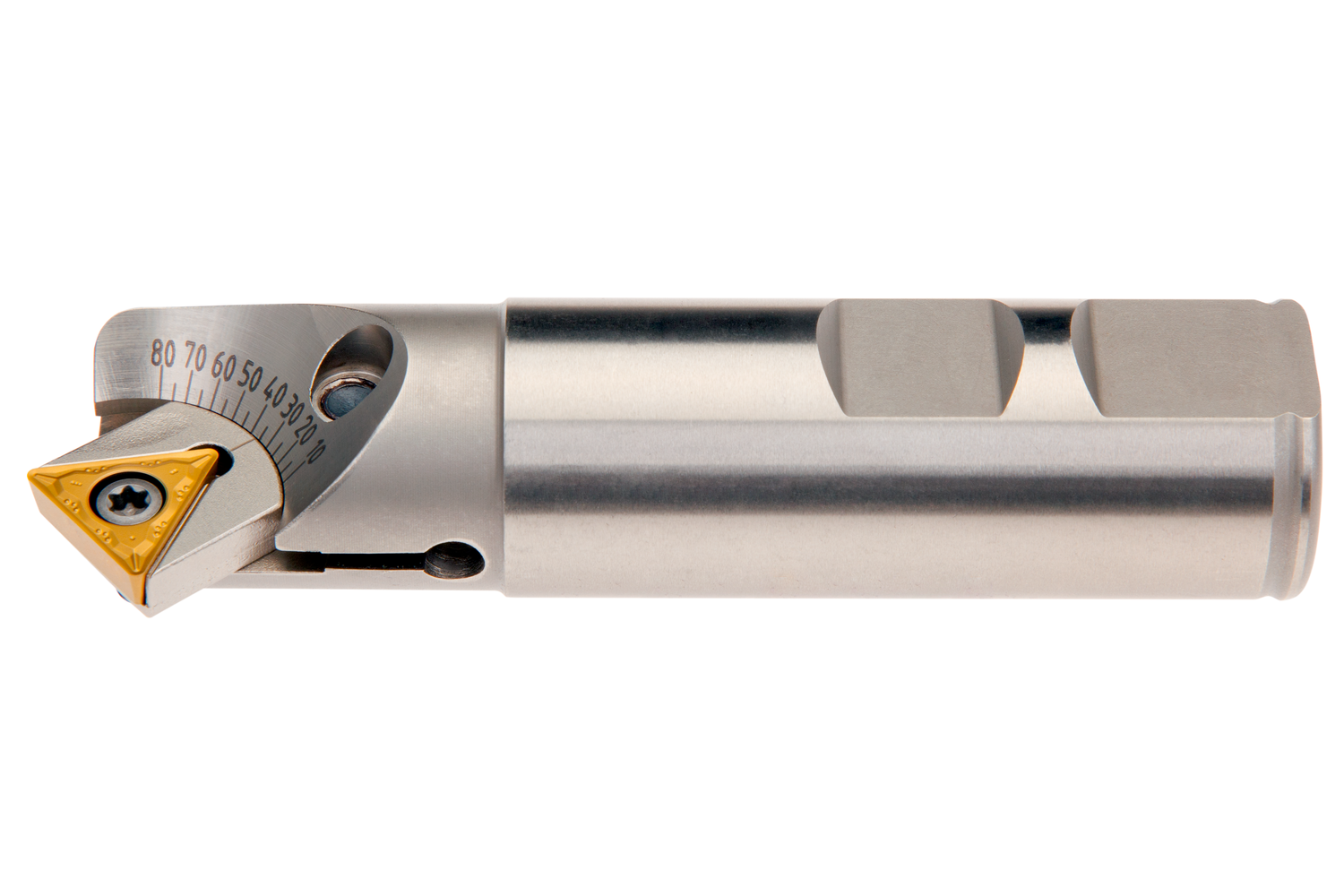

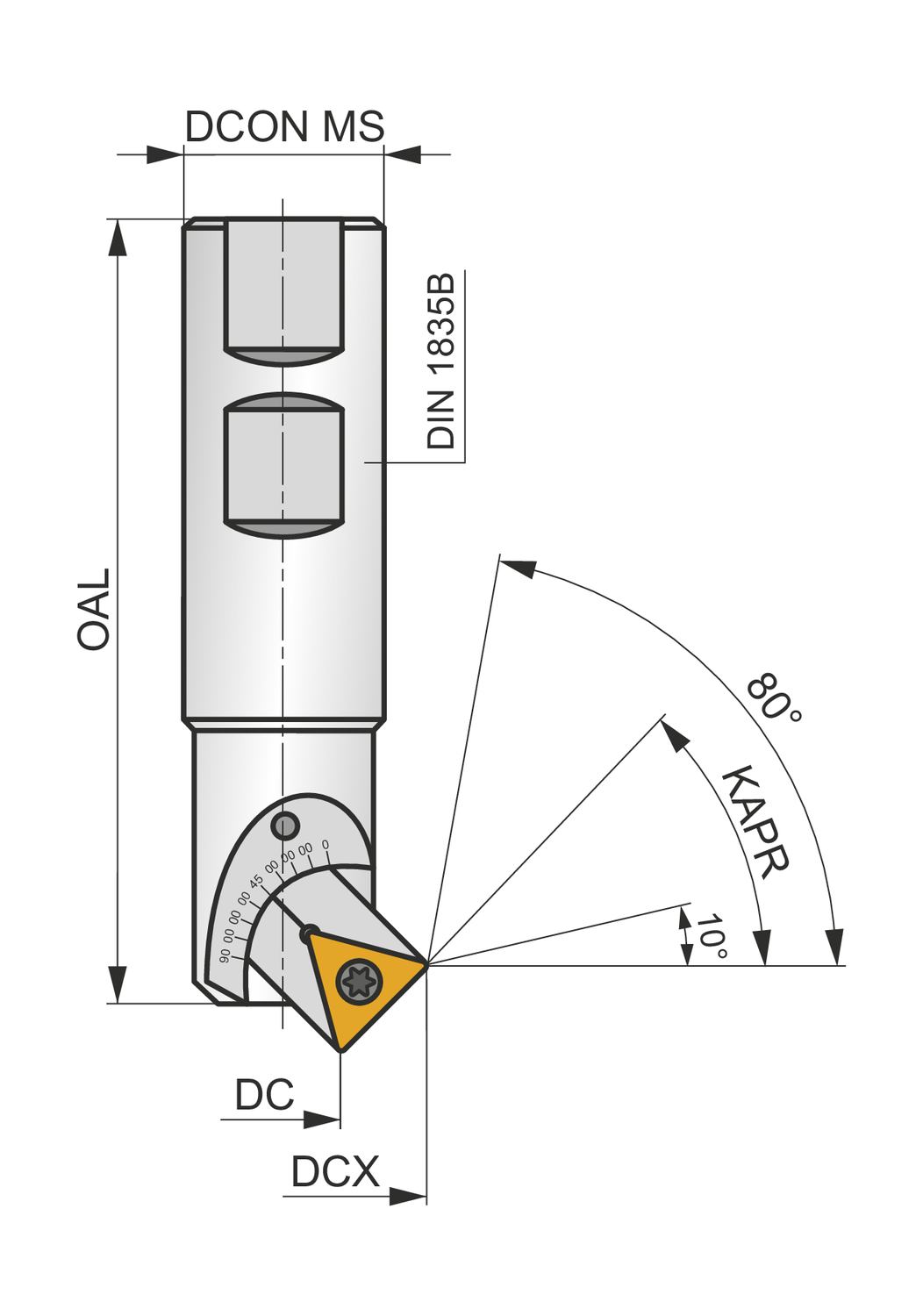

Chamfer mill with double negative geometry which utilises 1 off TCMT 16T304E-FM:T83.. or TCMT 16T308E-FM:T83.. single-sided insert, cutting diameter 5 to maximum 31mm with 10 -80° approach angle and 25mm Weldon shank according to DIN 1835B, 100mm overall length for chamfering with a maximum depth of cut of 8.5mm

• Product Name ISO: 2636-05-25
• Ordering Code ANSI: 2636-05-25
• EDP Number: 6827937
• Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
