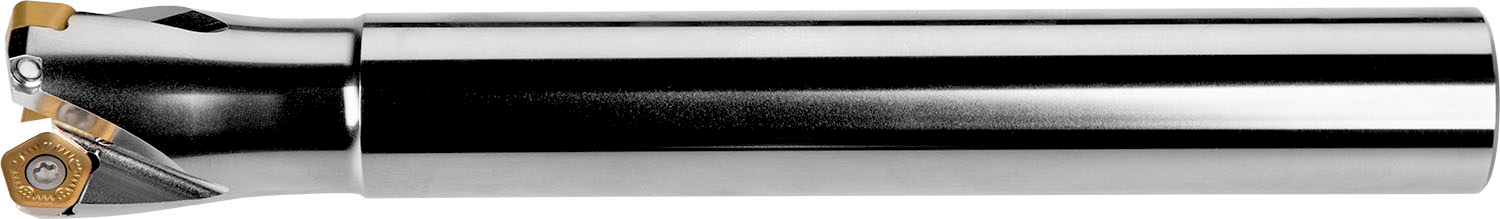

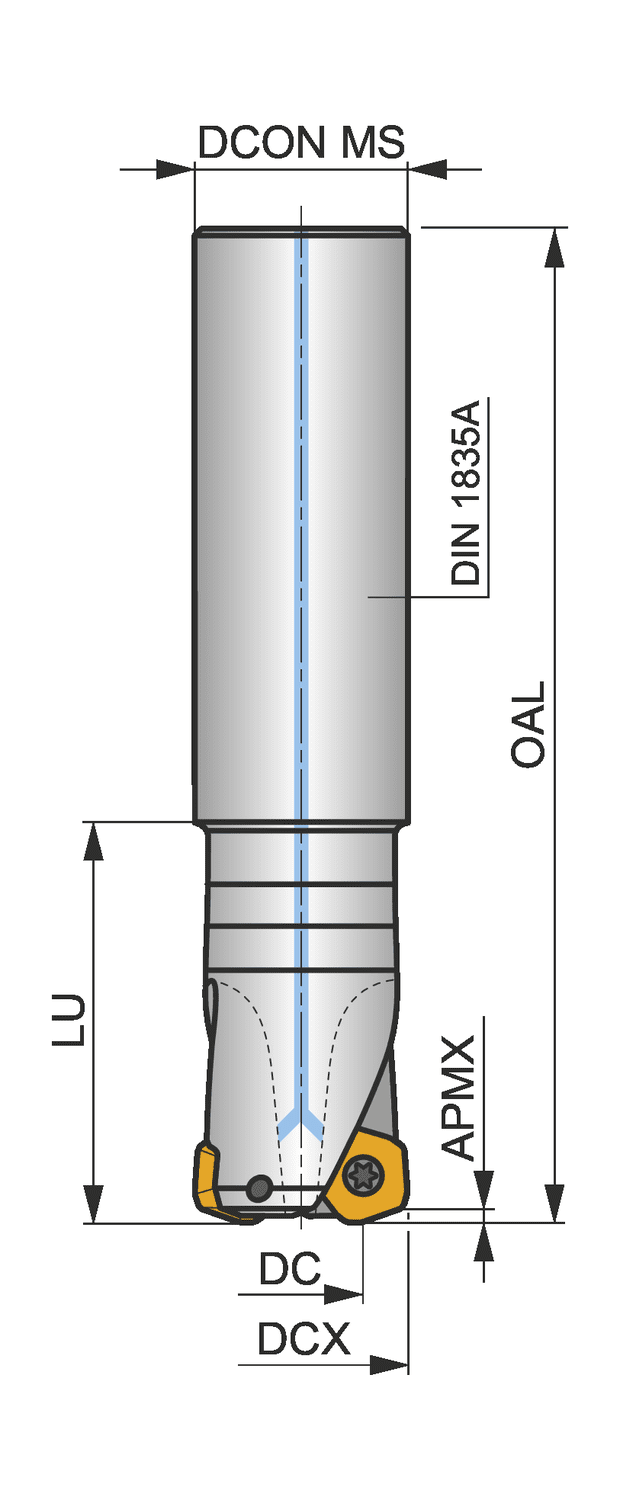

High feed cutter with positve/negative geometry which utilises 3 off PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 1.500'' with 19° approach angle and 1.250'' parallel shank according to DIN 1835A, 2.362'' functional and 9.843'' overall length, through coolant for face milling with a maximum depth of cut of .079''
- Product Name ISO: 150E3R236C125-ISPD09-C
- Ordering Code ANSI: 150E3R236C125-ISPD09-C
- EDP Number: 6792949
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 25.5 |
| Cutting Diameter (In.) | 1.004 |
| Connection Diameter (Mm.) | 31.8 |
| Overall Length (Mm.) | 250 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 9.843 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
