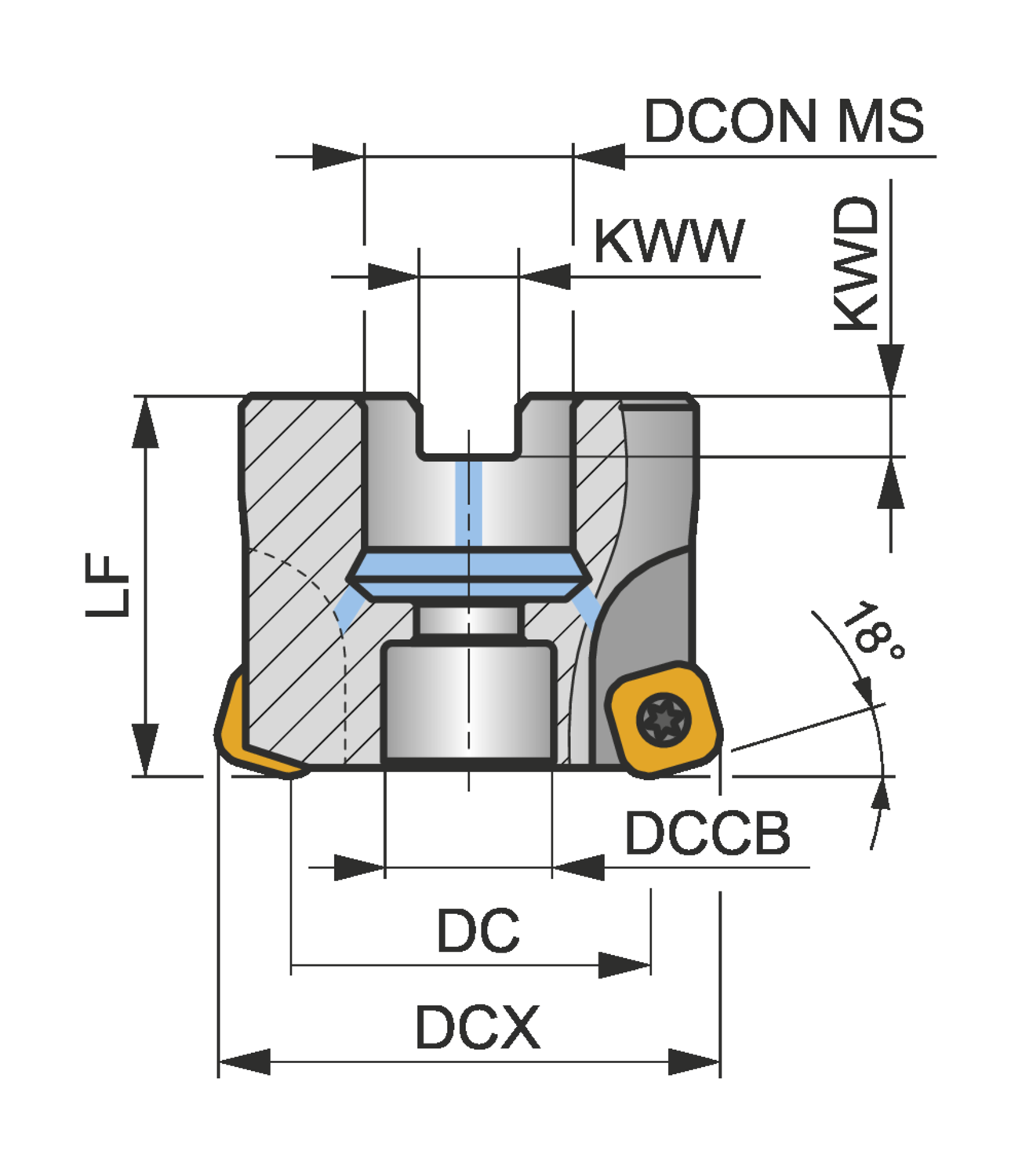

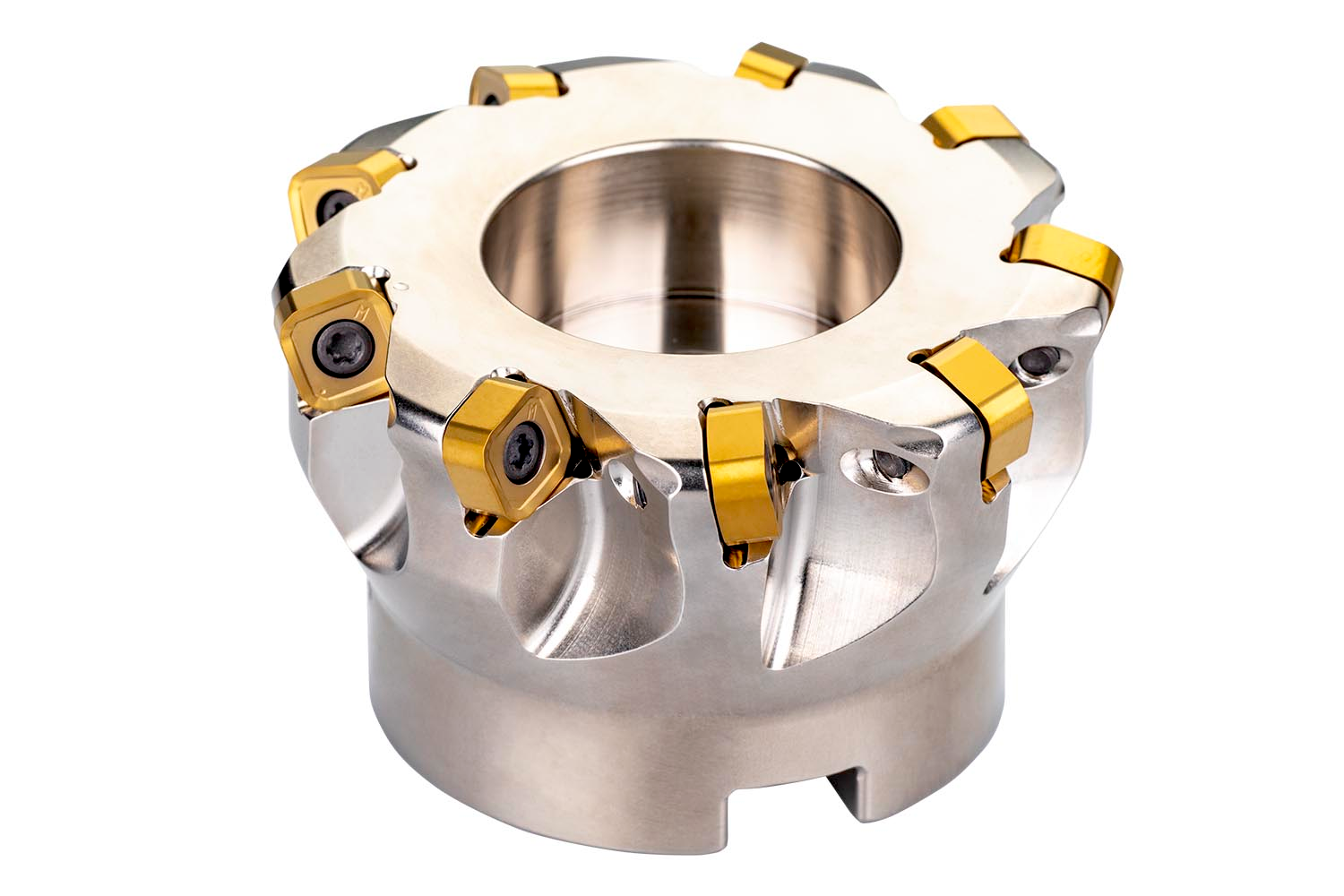

High feed cutter with double negative geometry which utilises 9 of SNGX 1104.. double-sided inserts, cutting diameter 3.000" with 18° approach angle and 1.000" connection bore according to DIN 8030-C, 1.969" protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .067"
- Product Name ISO: 300A09R-ISMOSN11-C
- Ordering Code ANSI: 300A09R-ISMOSN11-C
- EDP Number: 7800657
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 62.3 |
| Cutting Diameter (In.) | 2.453 |
| Connection Diameter (Mm.) | 25.4 |
| Connection Diameter (In.) | 1 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
