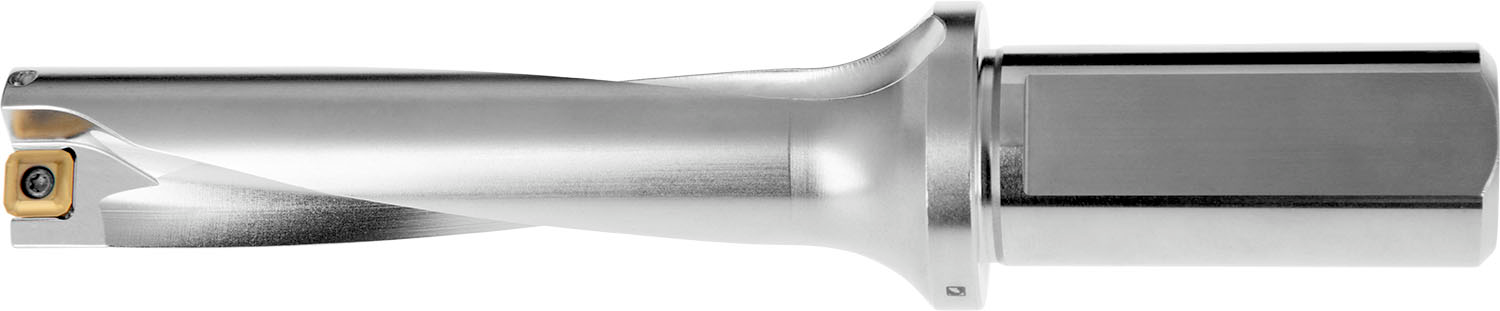

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0502.. insert in the peripheral pocket, cutting diameter 18mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D
- Product Name ISO: 804D-18-72-S25
- Ordering Code ANSI: 804D-18-72-S25
- EDP Number: 6758990
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

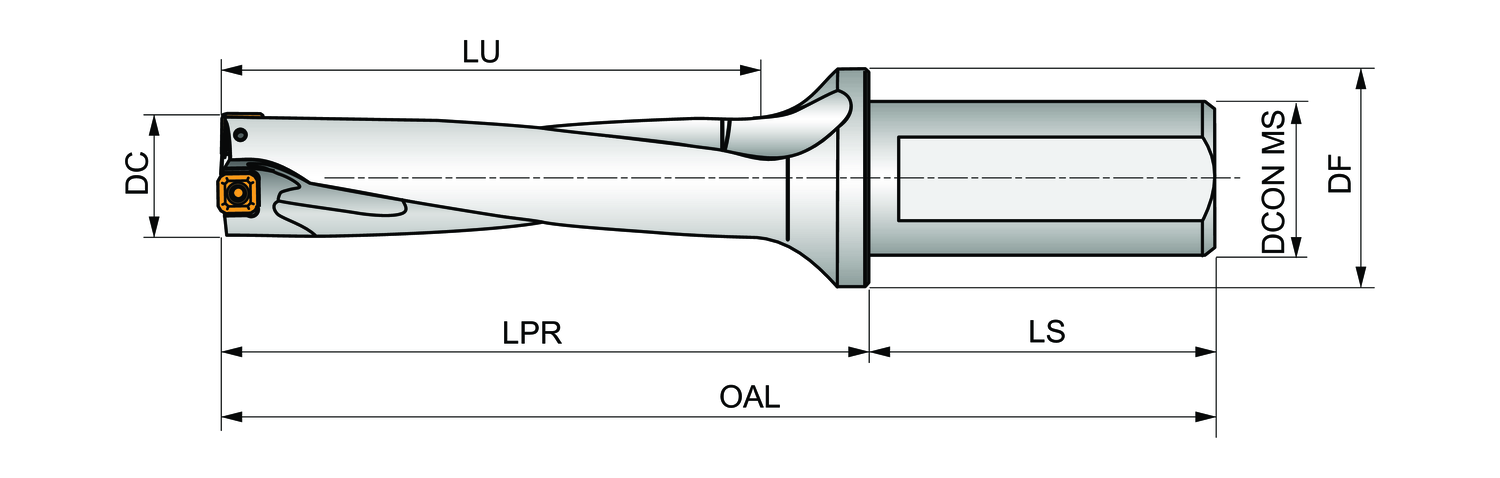

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 18 |
| Cutting Diameter (In.) | 0.709 |
| Depth of Cut Maximum (Mm.) | 72 |
| Connection Diameter (Mm.) | 25 |
| Overall Length (Mm.) | 153 |
| Usable Length (Mm.) | 77 |
| Shank Length (Mm.) | 56 |
| Max Depth of Cut (In.) | 2.8346 |
| Connection Diameter (In.) | 0.984 |
| Overall Length (In.) | 6.024 |
| Shank | Cylindrical Shank ISO 9766 |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
