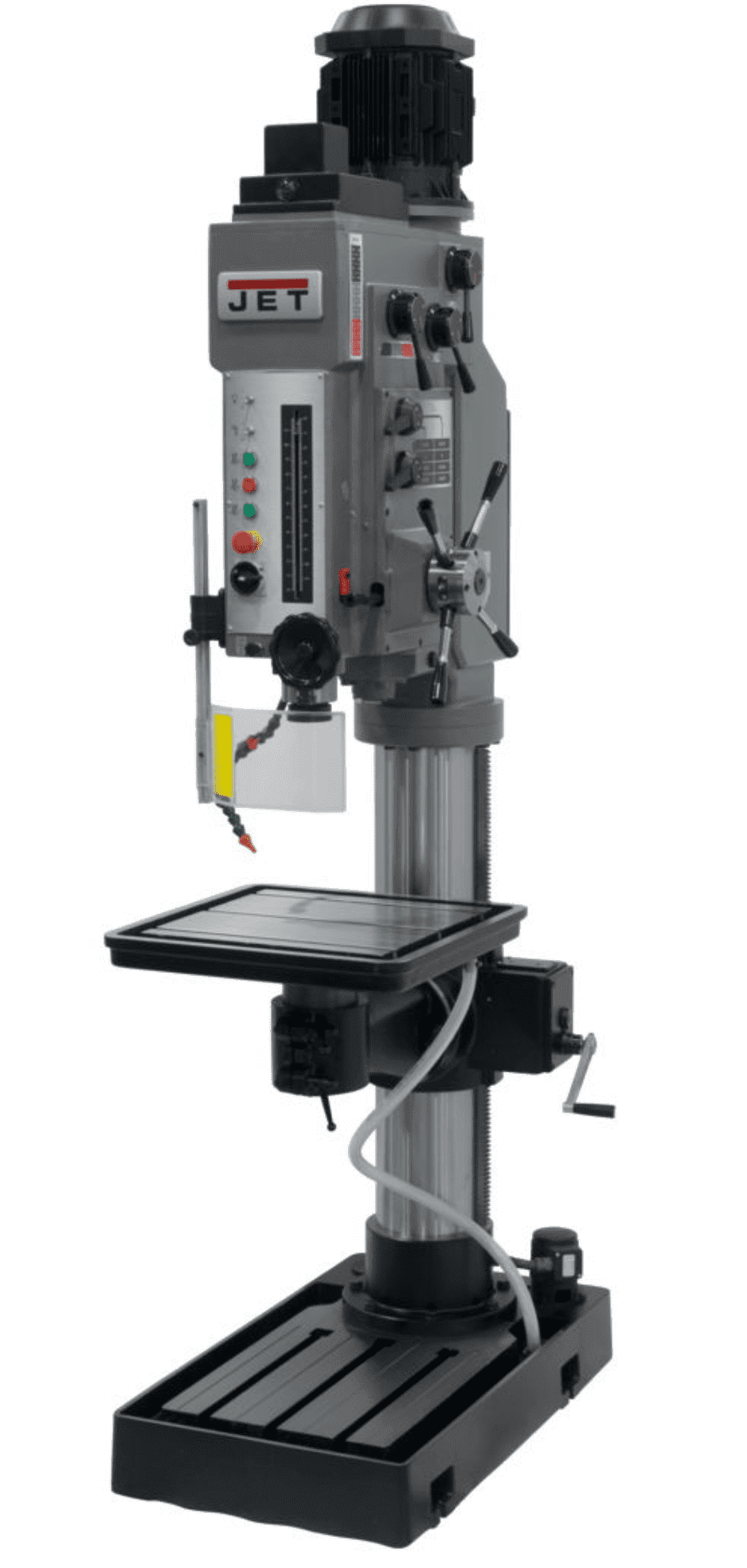

J-2380, 33" 7-1/2HP Direct Drive Drill Press
- Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection
- Speed and feed selectors are located on one side of the drill head for convence and ease of operation
- Oversized base is precision ground with T-slot for added versatility and stability
- Mechanical powerfeed clutch engagement
- Two-speed forward and reverse switch
- Automatic tool ejector
- Heavy-duty quill
- Low voltage controls
- Manual quill lock
- Coolant system
| Column Diameter (In.) | 6-7/8 |
| Style (Type) | Direct Drive |
| Motor (HP) | 7-1/2 HP, 230/460V, 3Ph |
| Range of Spindle Speeds (RPM) | 42, 58, 86, 116, 154, 249, 304, 412, 554, 748, 1,098, 1,458 |
| Weight (Lbs.) | 3,065 |
| Table Size (LxW)(In.) | 23-1/2 x 23-1/2 |
| Quill Diameter (In.) | 3-7/9 |
| Spindle Distance to Table (Max.)(In.) | 30-1/2 |
| Spindle Distance to Base (In.) | 51 |
| Work Table Weight Capacity (Lbs.) | 400 |
| Prewired (V.) | 230V |
| Overall Dimensions (LxWxH)(In.) | 55 x 33 x 110 |
| Drills to Center of Circle (In.) | 33 |
| Drilling Capacity Cast Iron (In.) | 2-7/8 |
| Base Slots Number & Size (In.) | 3 x 5/8 |
| Base Dimensions (In.) | 55 x 33 |
| Spindle Travel (In.) | 11 |
| Spindle Taper (In.xTPI) | MT-5 |
| Distance Column to Spindle (In.) | 16-1/2 |
| Quill Feed | Manual |
| Drilling Capacity Mild Steel (In.) | 2-3/4 |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| Number of Spindle Speeds | 12 |
