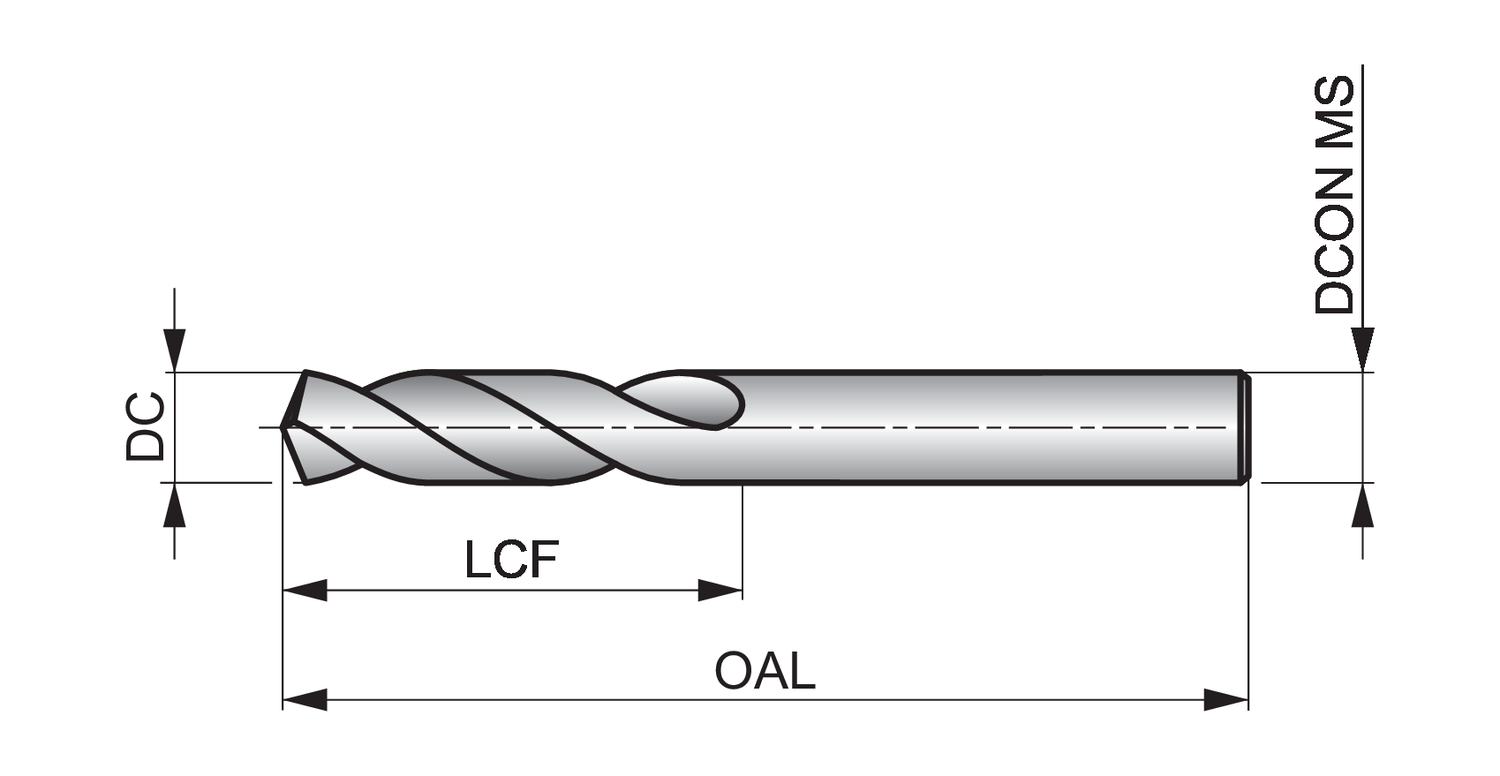

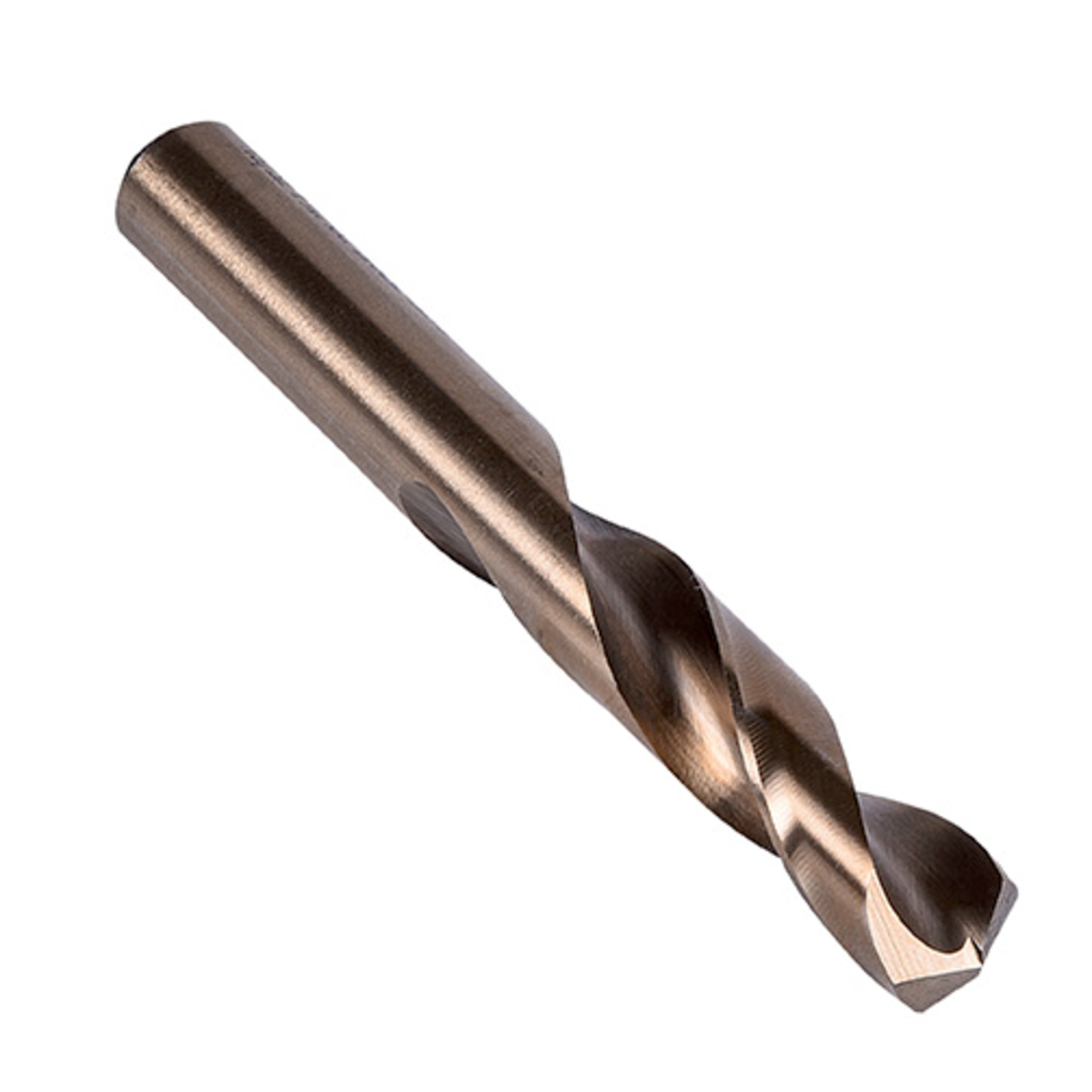

Stub length drill with straight shank, diameter 0.1250" (1/8) with an overall length of 1.7/8" and flute length of 7/8" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

• Product Name ISO: M40CO1/8
• Ordering Code ANSI: M40CO1/8
• EDP Number: 040308
• Coating: Bronze
• Material Code (BMC): HSS-E
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
