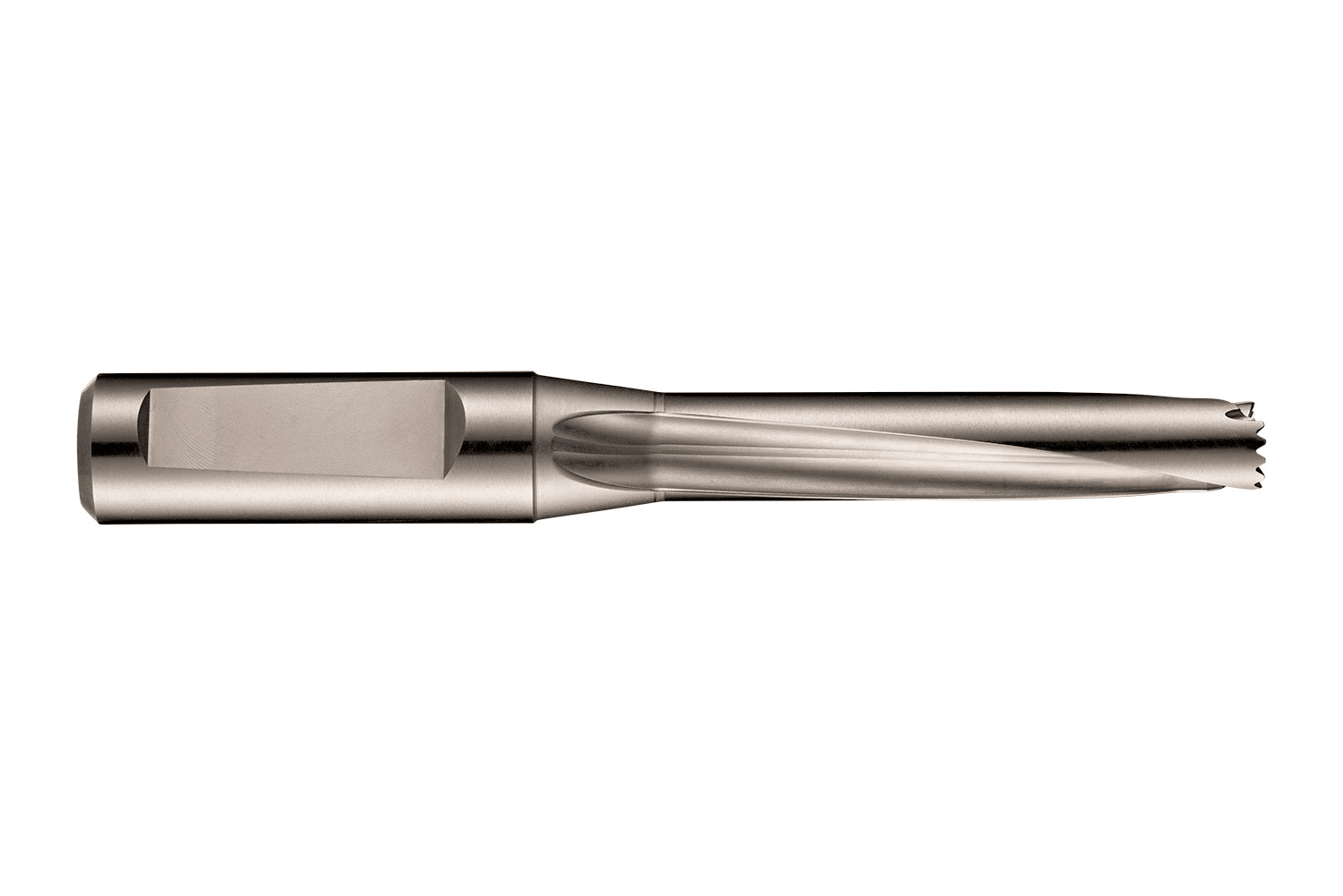

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 1.3/16" with an overall length of 255mm and flute length of 167mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 1.1811 up to 1.2008"
- Product Name ISO: H8551.3/16
- Ordering Code ANSI: H8551.3/16
- EDP Number: 0034965
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

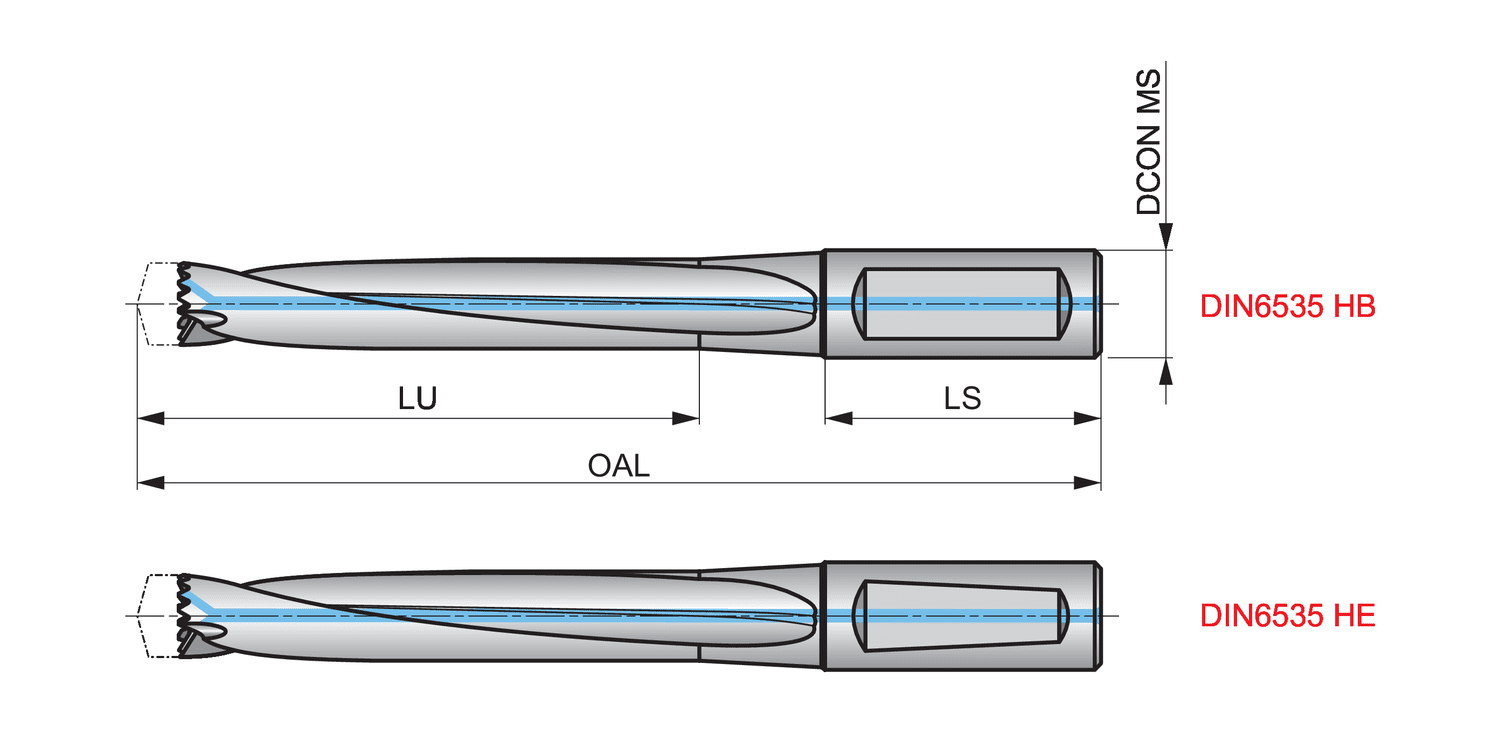

| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 255 |
| Usable Length (Mm.) | 167 |
| Shank Length (Mm.) | 60 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 10.0394 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
