Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 16mm diameter 74mm protrusion length for cone boring and longitudinal boring with and without shoulder
- Product Name ISO: S16J SCLCR 09-B
- Ordering Code ANSI: S16J SCLCR 09-B
- EDP Number: 6760722

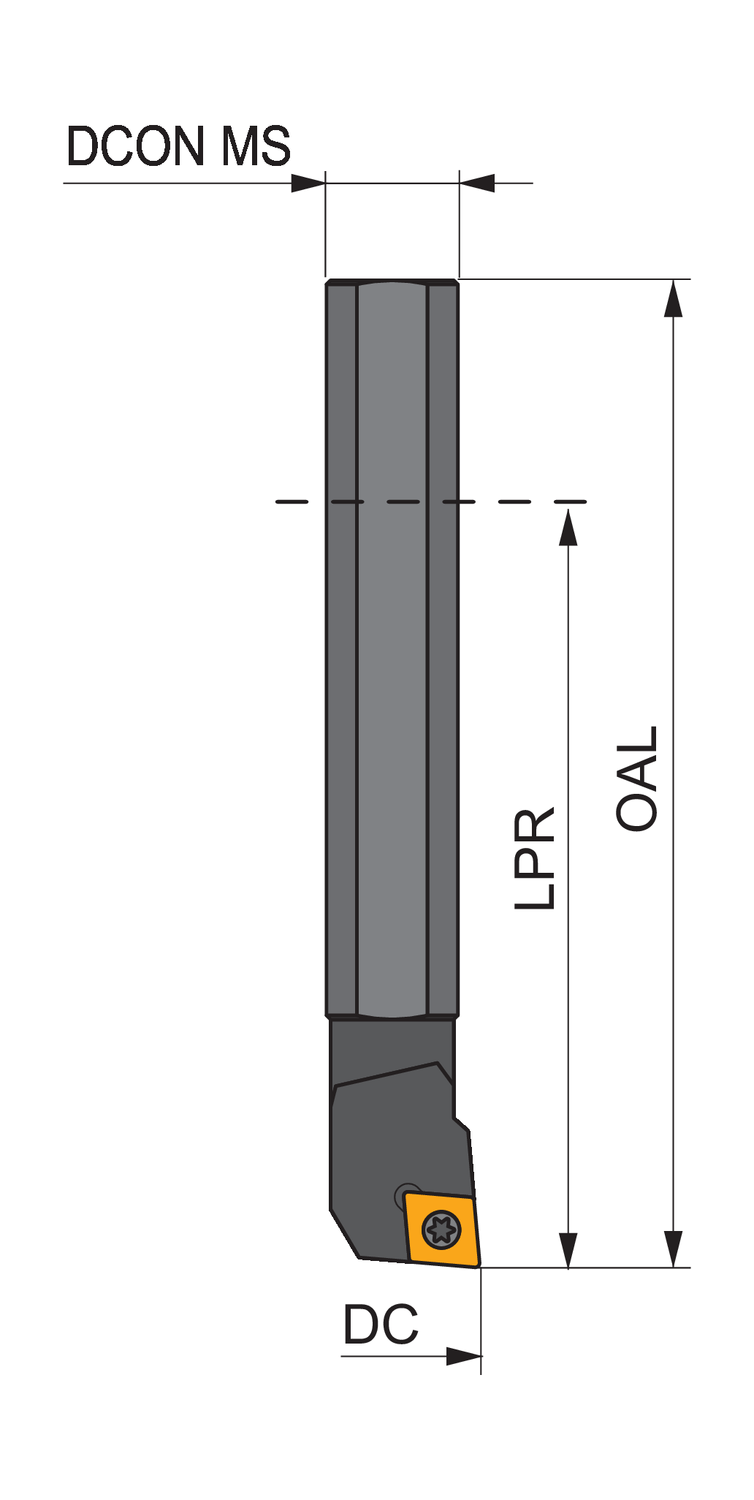

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 20 |
| Cutting Diameter (In.) | 0.787 |
| Connection Diameter (Mm.) | 16 |
| Overall Length (Mm.) | 110 |
| Connection Diameter (In.) | 0.63 |
| Overall Length (In.) | 4.331 |
