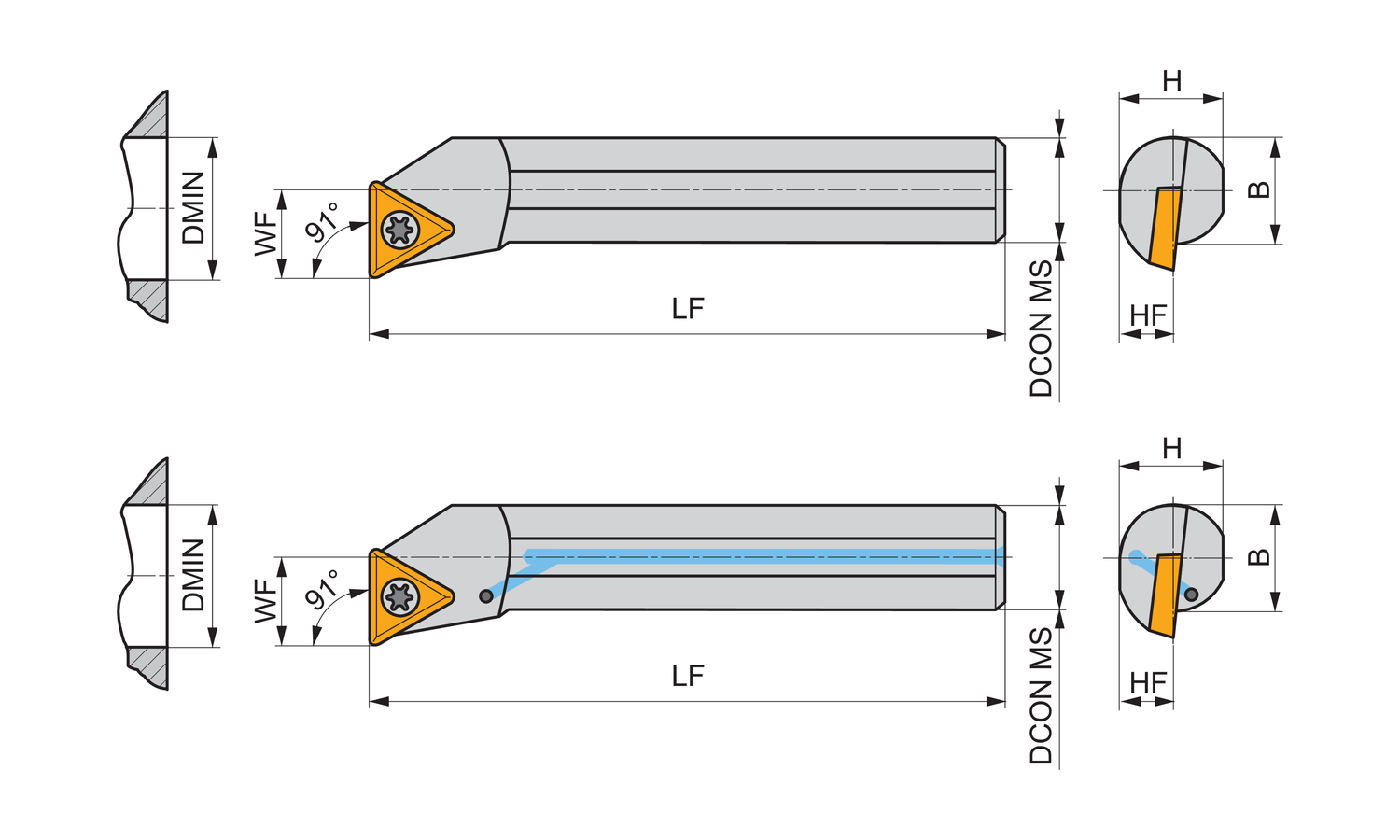

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation TC.. 16T3.. ), right hand 90° end cutting with off-set shank, steel without coolant hole, 32mm diameter x 350mm long for taper boring and longitudinal boring with and without shoulder
- Product Name ISO: S32U-STFCR 16-A
- Ordering Code ANSI: S32U-STFCR 16-A
- EDP Number: 6756657
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Connection Diameter (Mm.) | 32 |
Connection Diameter (In.) | 1.26 |
Direction of Tool | Right |
Clamping Type | Screw Clamping Through Hole |
