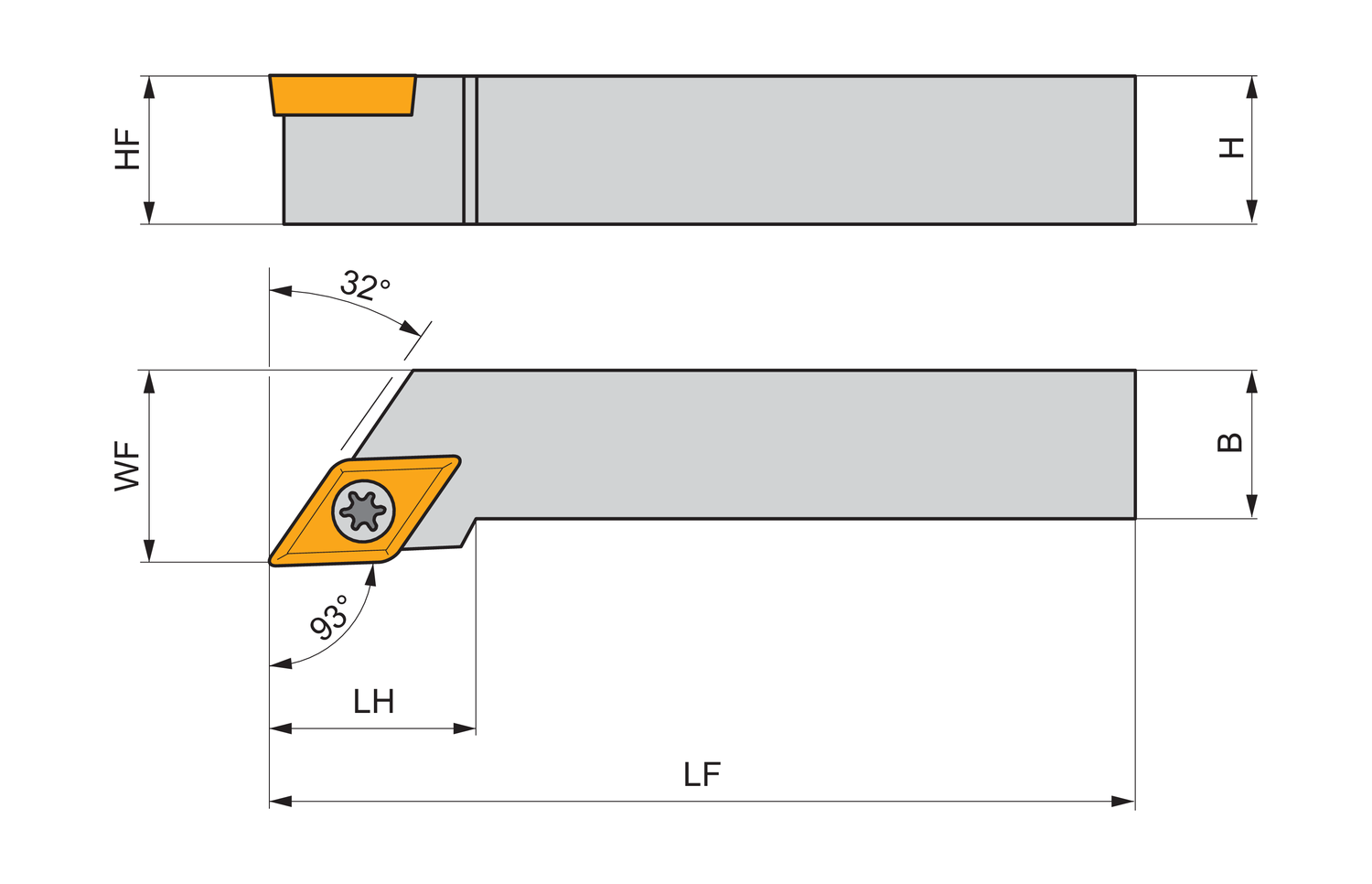

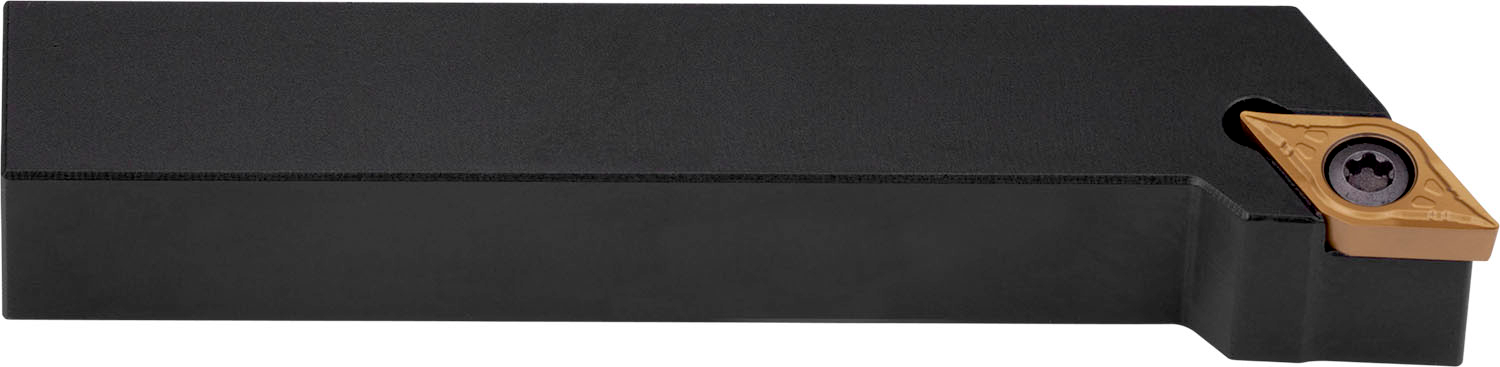

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation DC.. 1504.. ), left hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
- Product Name ISO: SDJCL 2525 M 15
- Ordering Code ANSI: SDJCL 2525 M 15
- EDP Number: 6761038
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Metric |
Head Length (Mm.) | 28 |
Direction of Tool | Left |
Clamping Type | Screw Clamping Through Hole |
