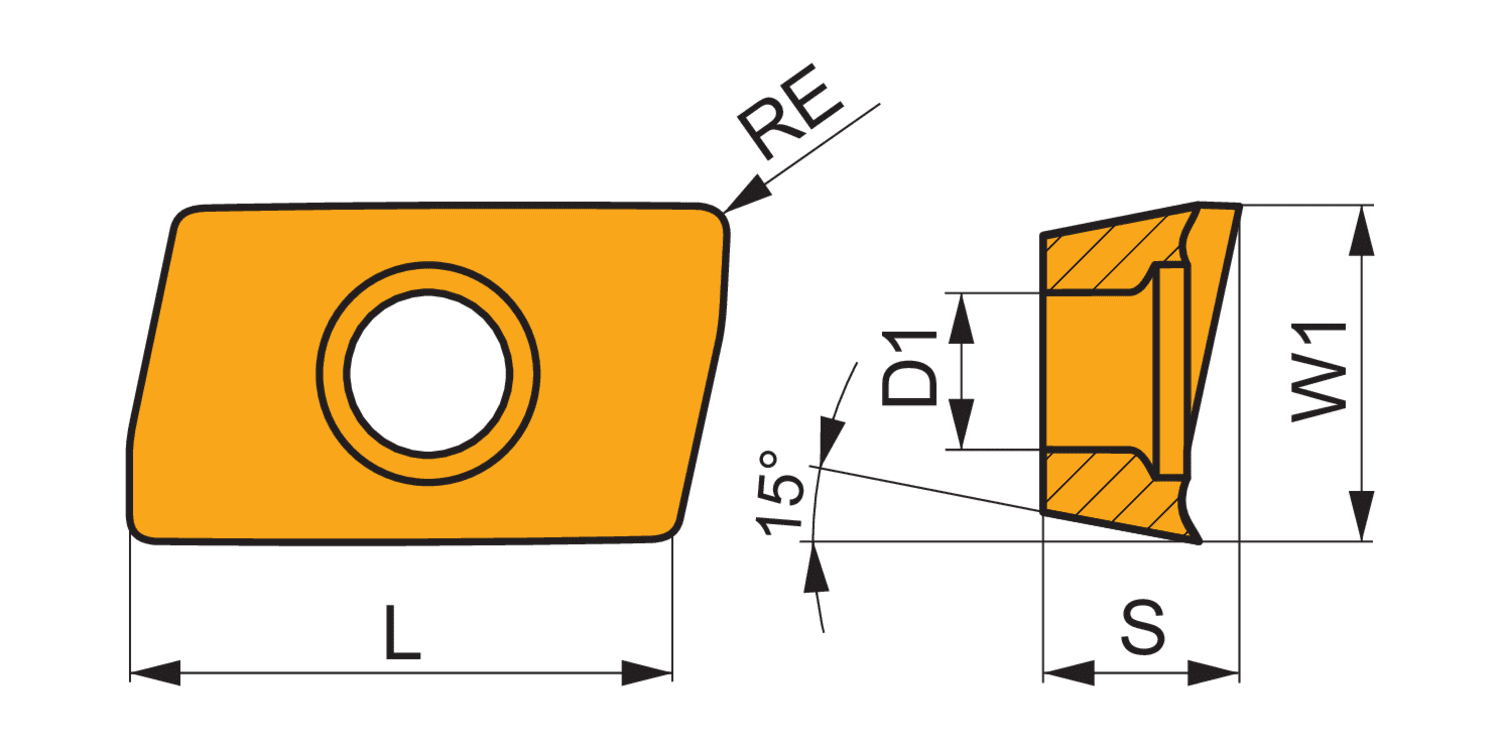

Single-sided milling insert ADEX 1606, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E
- Product Name ISO: ADEX 160608FR-FA:HF7
- Ordering Code ANSI: ADEX 160608FR-FA:HF7
- EDP Number: 6752632
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 6.17 |
| Insert Width (Mm.) | 9.95 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | HF7 |
There are no reviews yet
Customers who bought this item also bought

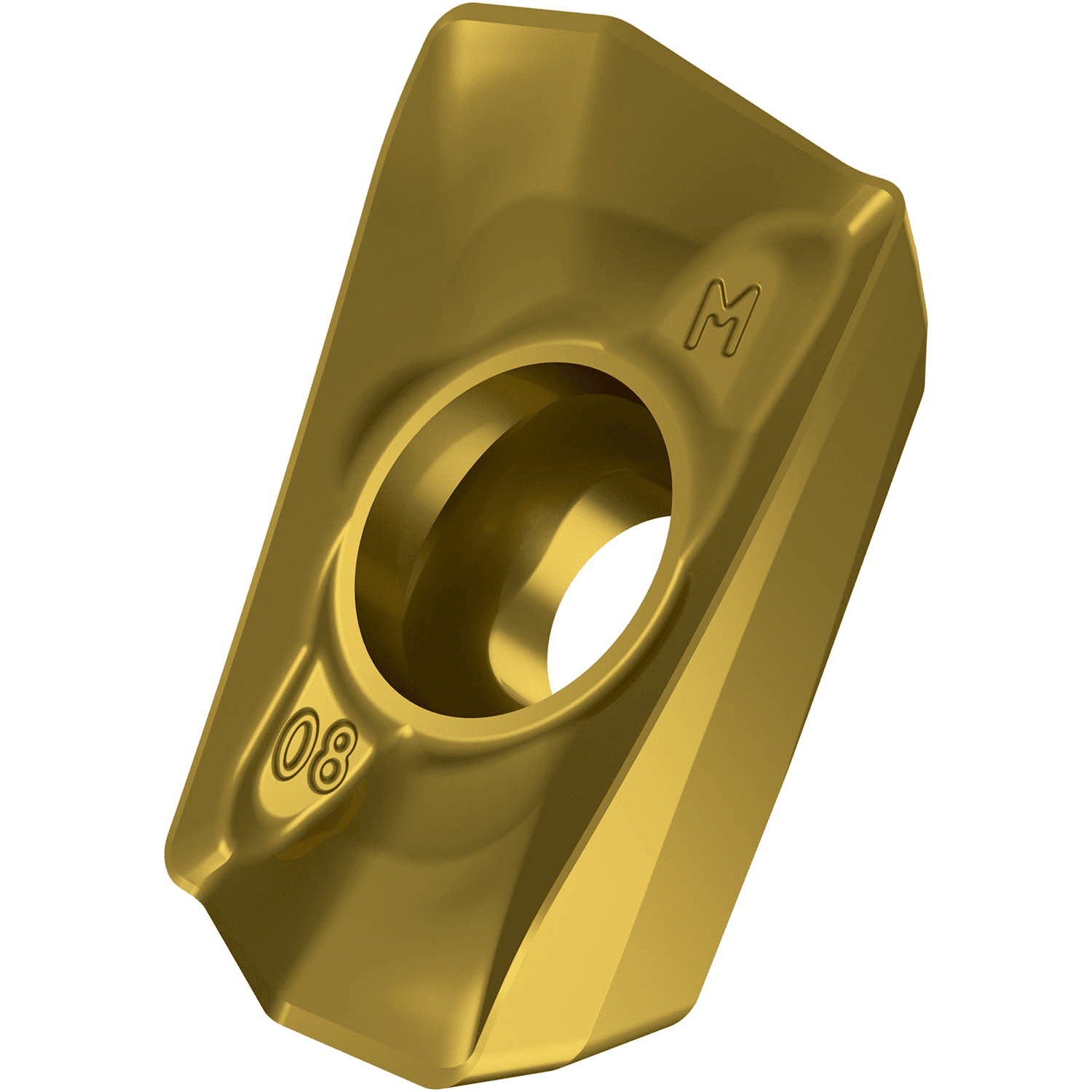

Milling Insert - Square Shoulder - ADMX 160608SR-M:M8340
$19.45 excl tax

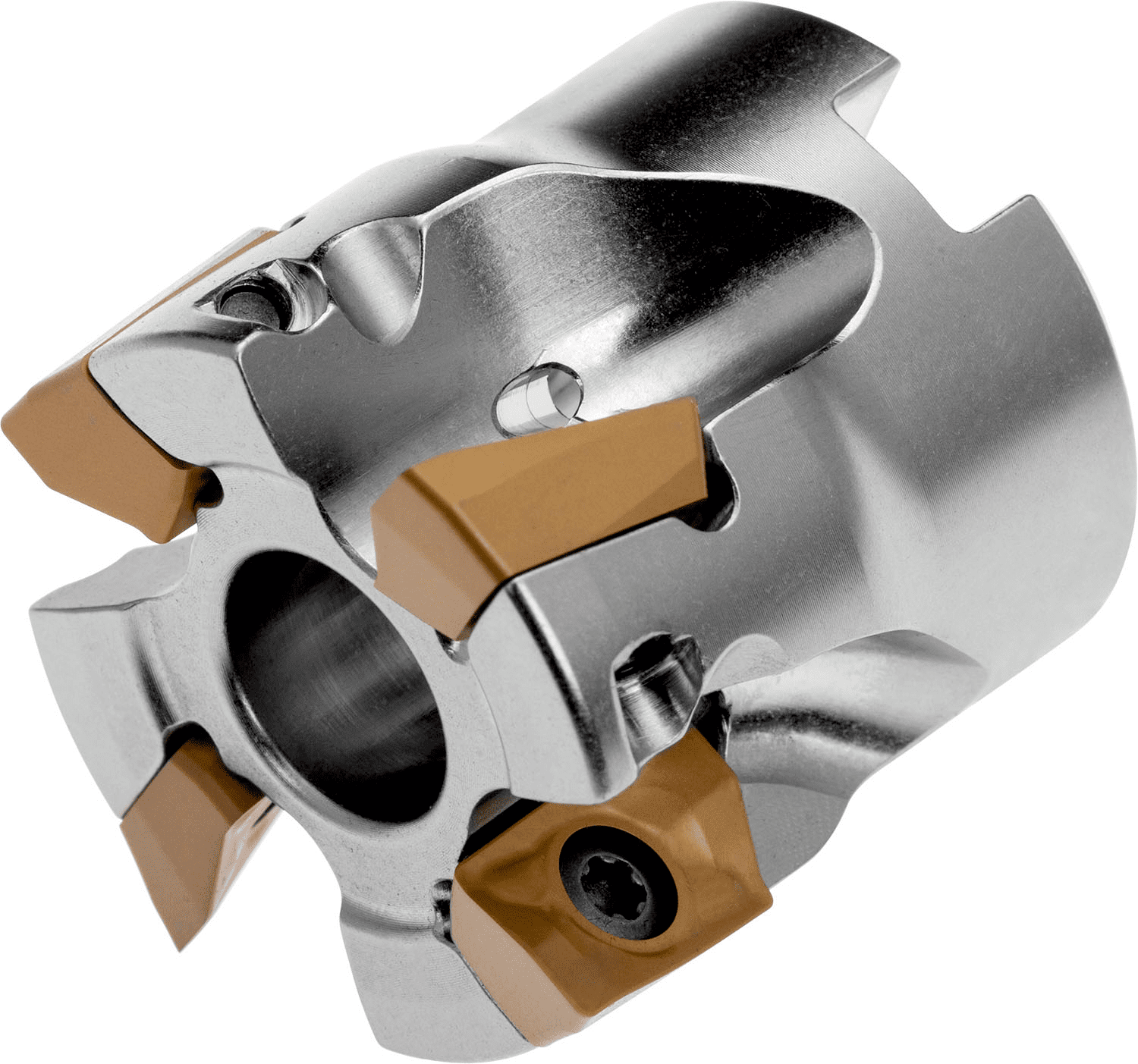

Shell Milling Cutter - Square Shoulder - 200A05R-IS90AD16E-C
