Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of .0787", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with high feed cutters SPD09
- Product Name ISO: PDKT 090530ER-FM:8215
- Ordering Code ANSI: PDKT 090530ER-FM:8215
- EDP Number: 6755683
- Coating: 8215
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

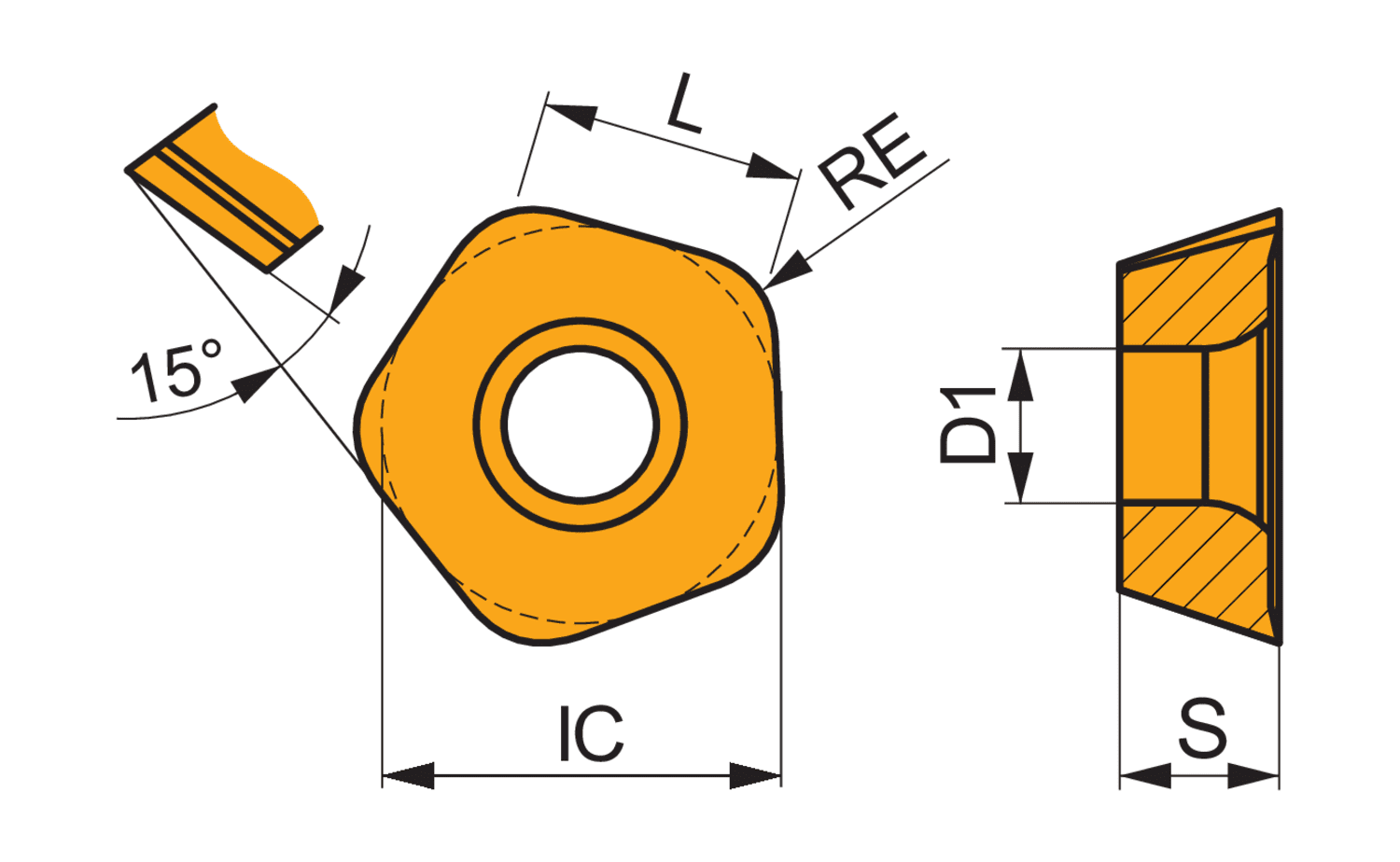

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 13.5 |
| Insert Thickness (Mm.) | 5.47 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | 8215 |
