Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of .0787", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with high feed cutters SPD09
- Product Name ISO: PDKT 090530ER-FM:M8345
- Ordering Code ANSI: PDKT 090530ER-FM:M8345
- EDP Number: 6756071
- Coating: M8345
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

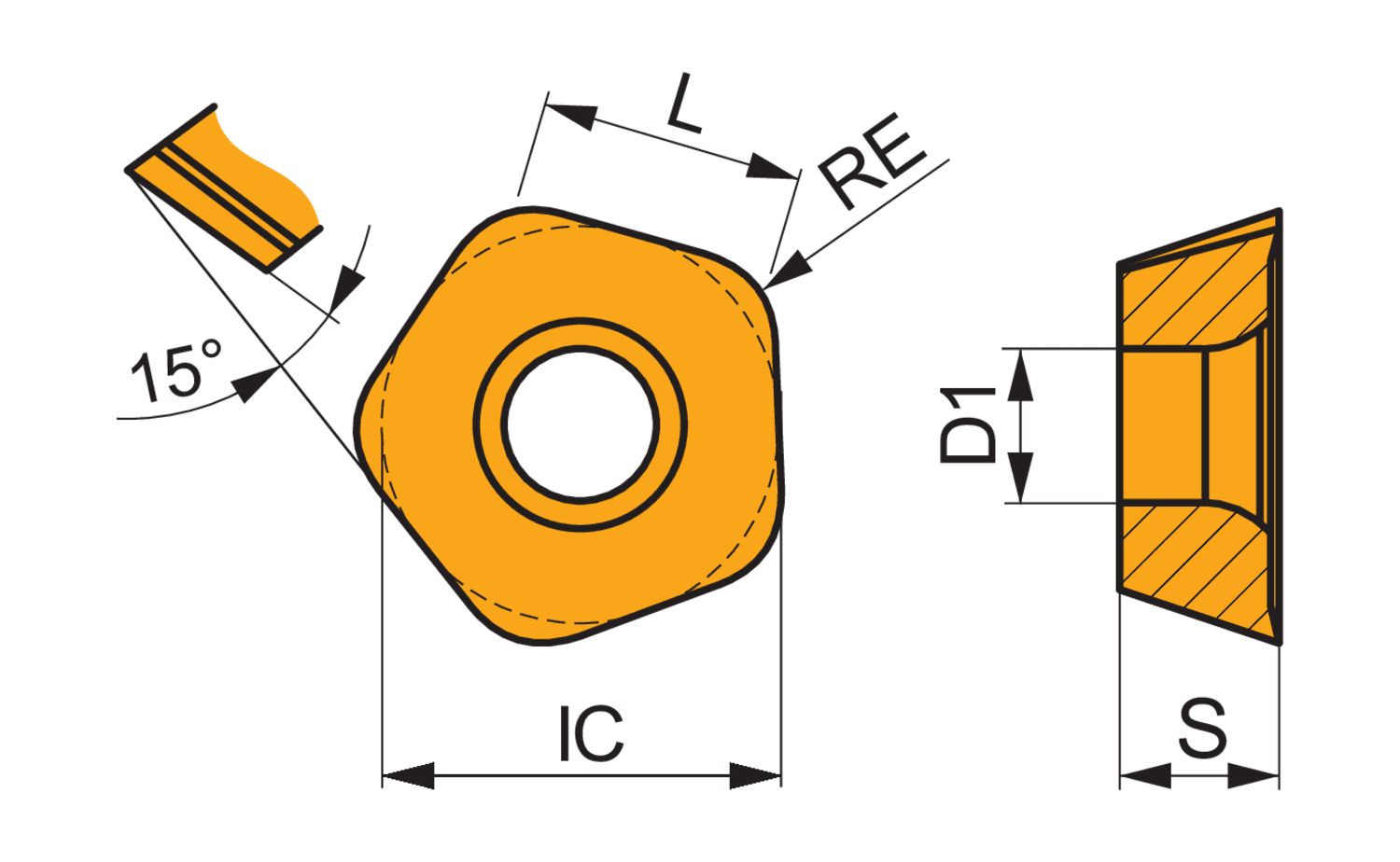

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 13.5 |
| Insert Thickness (Mm.) | 5.47 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8345 |
