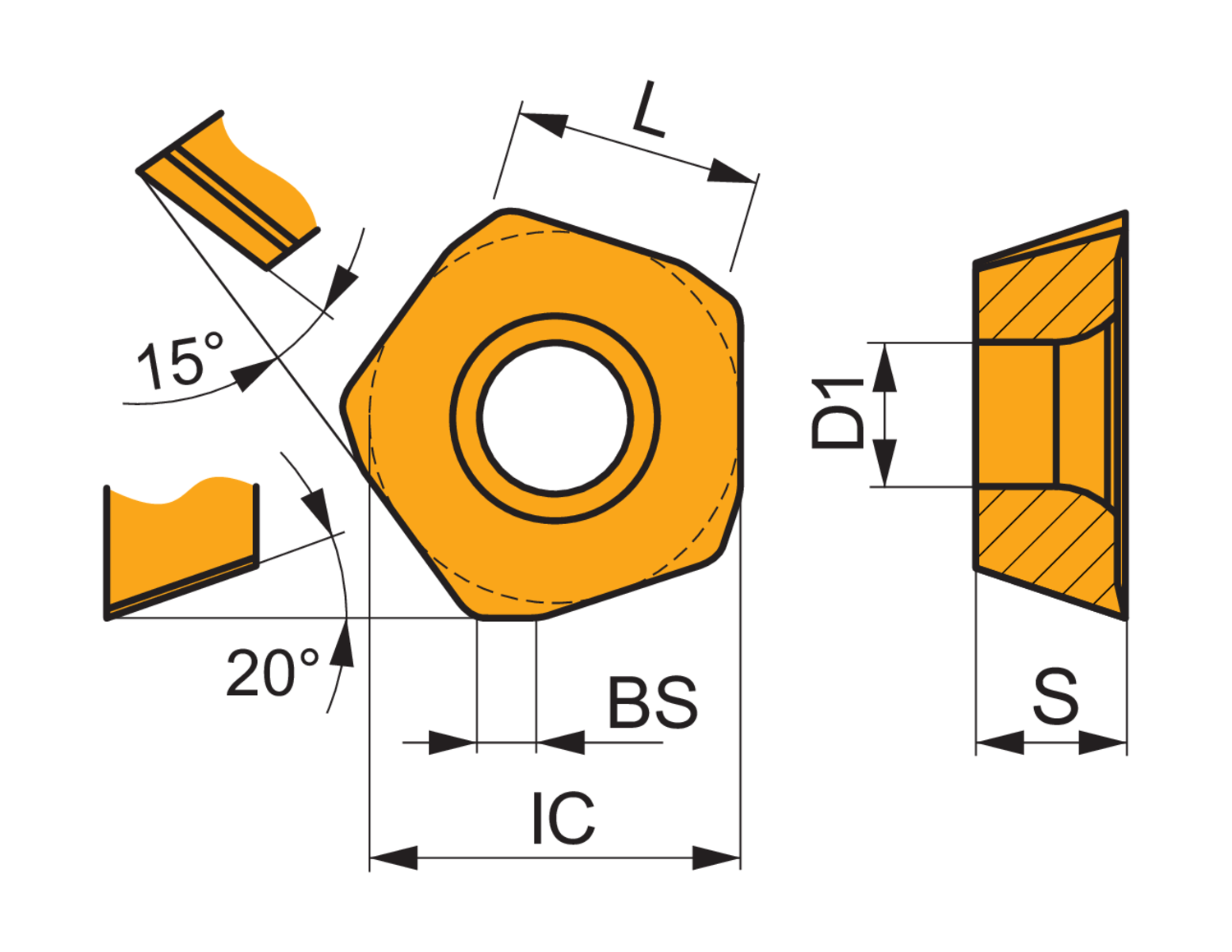

Single-sided milling insert PDKX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with high feed cutters SPD09
- Product Name ISO: PDKX 0905ZEER-FM:M9340
- Ordering Code ANSI: PDKX 0905ZEER-FM:M9340
- EDP Number: 6756073
- Coating: M9340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 2 |
Fixing Hole Diameter (Mm.) | 5.5 |
Inscribing Circle Dia. (Mm.) | 13.5 |
Insert Thickness (Mm.) | 5.47 |
Max Depth of Cut (In.) | 0.079 |
Coating | M9340 |
