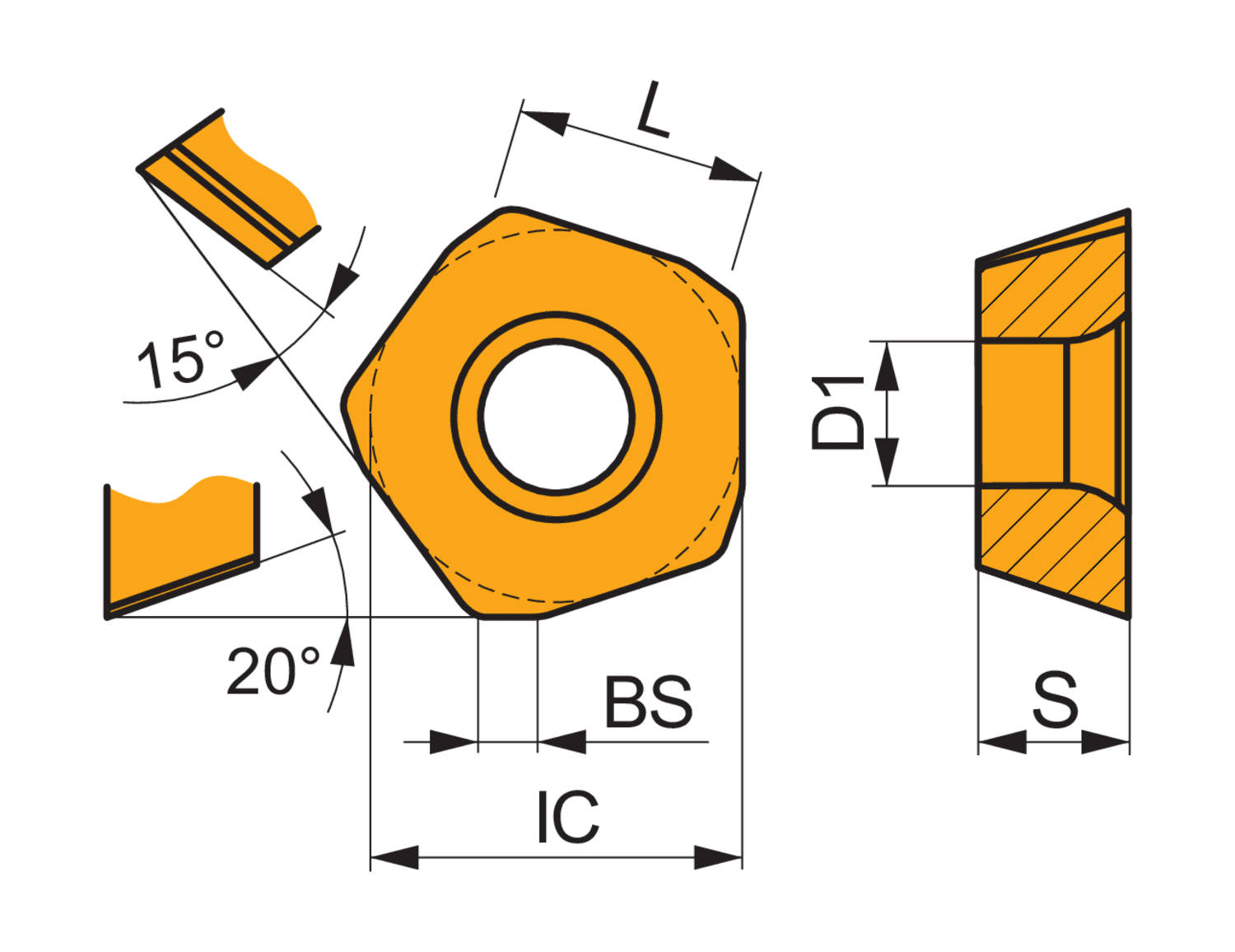

Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide for machining with high feed cutters SPD09
- Product Name ISO: PDMX 0905ZEER-M:8215
- Ordering Code ANSI: PDMX 0905ZEER-M:8215
- EDP Number: 6756188
- Coating: 8215
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 13.5 |
| Insert Thickness (Mm.) | 5.47 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | 8215 |
