Single-sided milling insert RDGT 0702 with chip-breakers, round for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy face mills SRD07
- Product Name ISO: RDGT 0702MOT:M8345
- Ordering Code ANSI: RDGT 0702MOT:M8345
- EDP Number: 6755946
- Coating: M8345
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

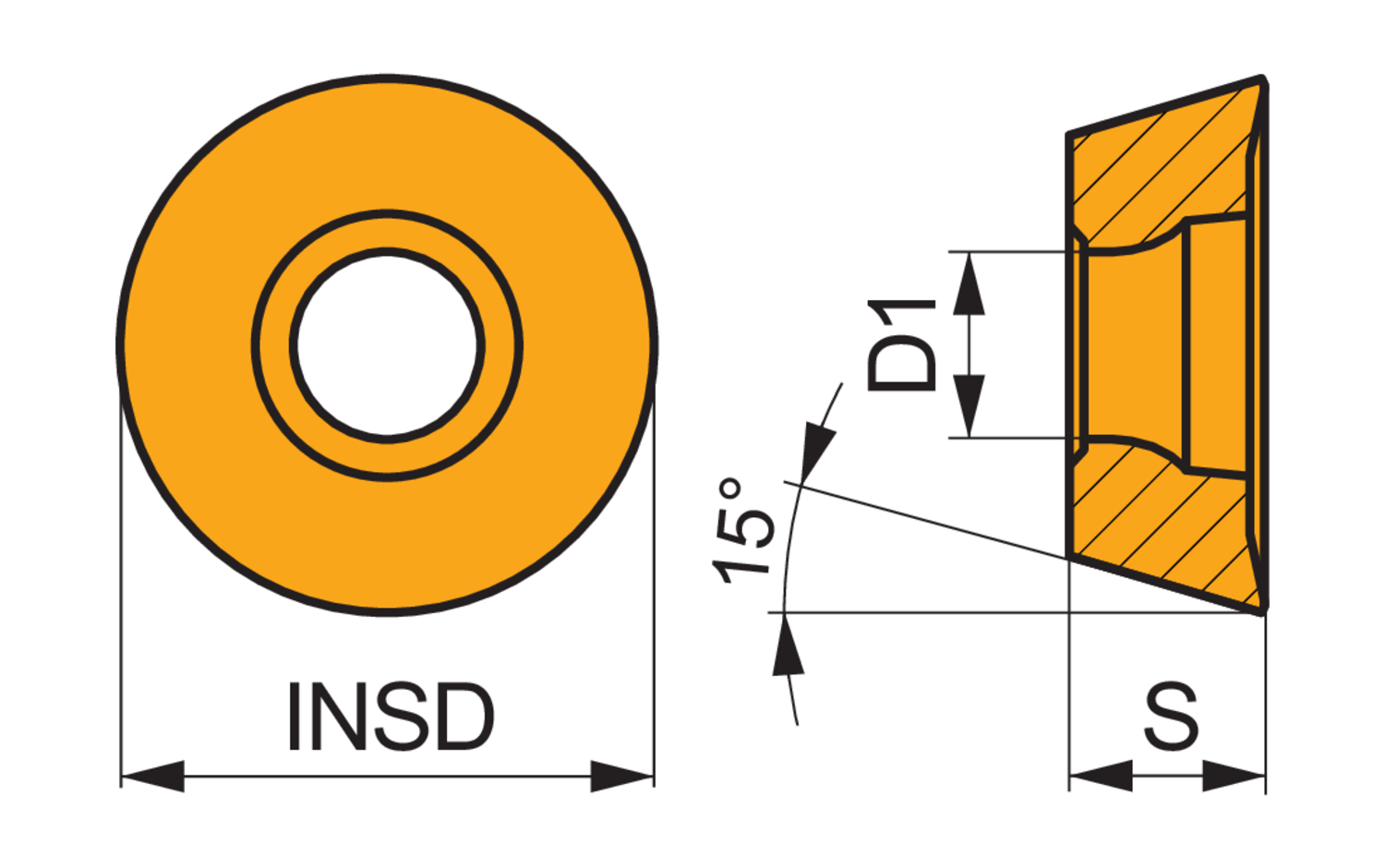

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Insert Dia. (Mm.) | 7 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8345 |
