Single-sided milling insert RDGT 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SRD10
- Product Name ISO: RDGT 1003MOT:M8325
- Ordering Code ANSI: RDGT 1003MOT:M8325
- EDP Number: 6756000
- Coating: M8325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

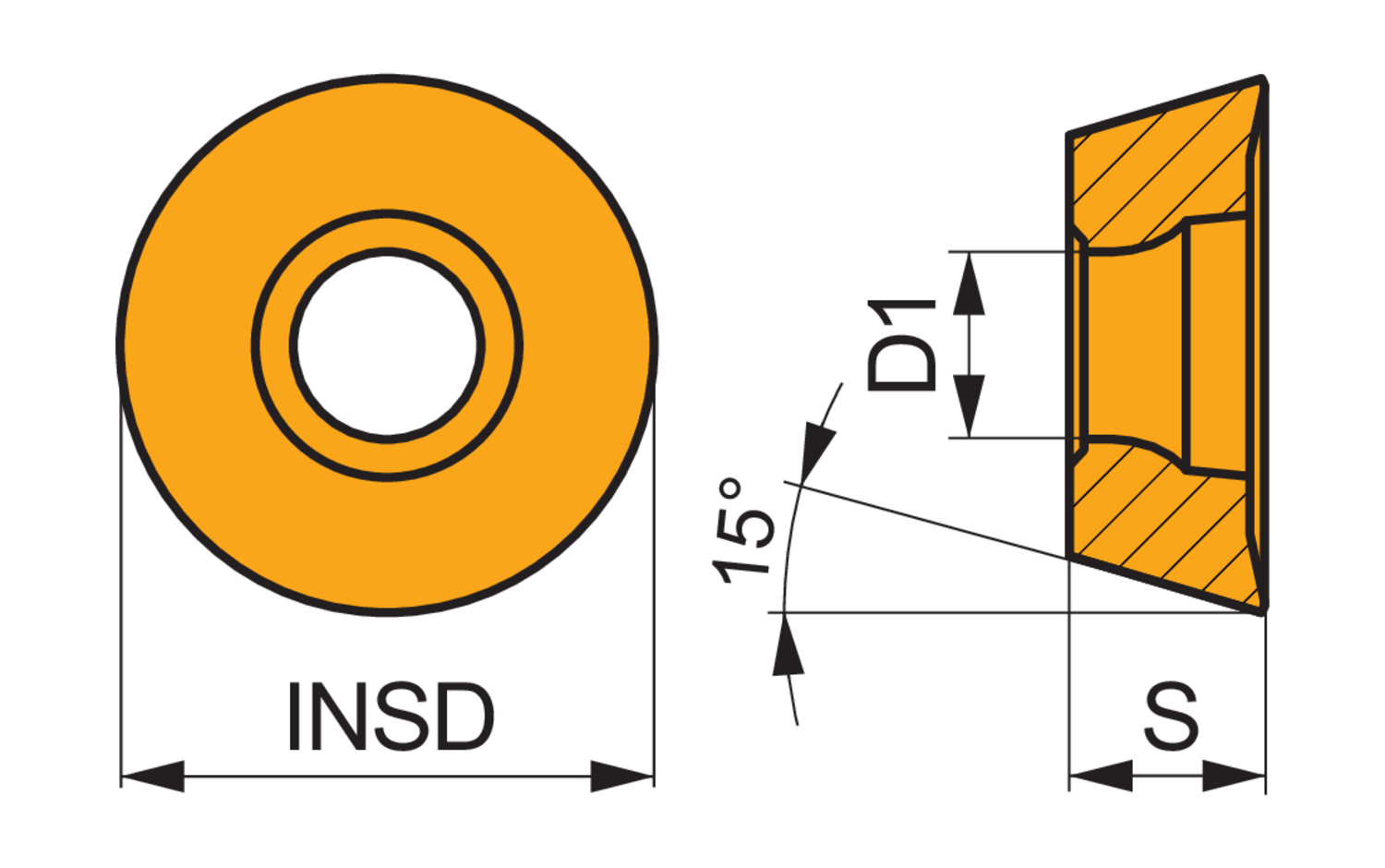

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | M8325 |
