Single-sided milling insert RDGT 1604 with chip-breakers, round for a maximum depth of cut of .1575", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy face mills SRD16
- Product Name ISO: RDGT 1604MOT:M8345
- Ordering Code ANSI: RDGT 1604MOT:M8345
- EDP Number: 6755964
- Coating: M8345
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

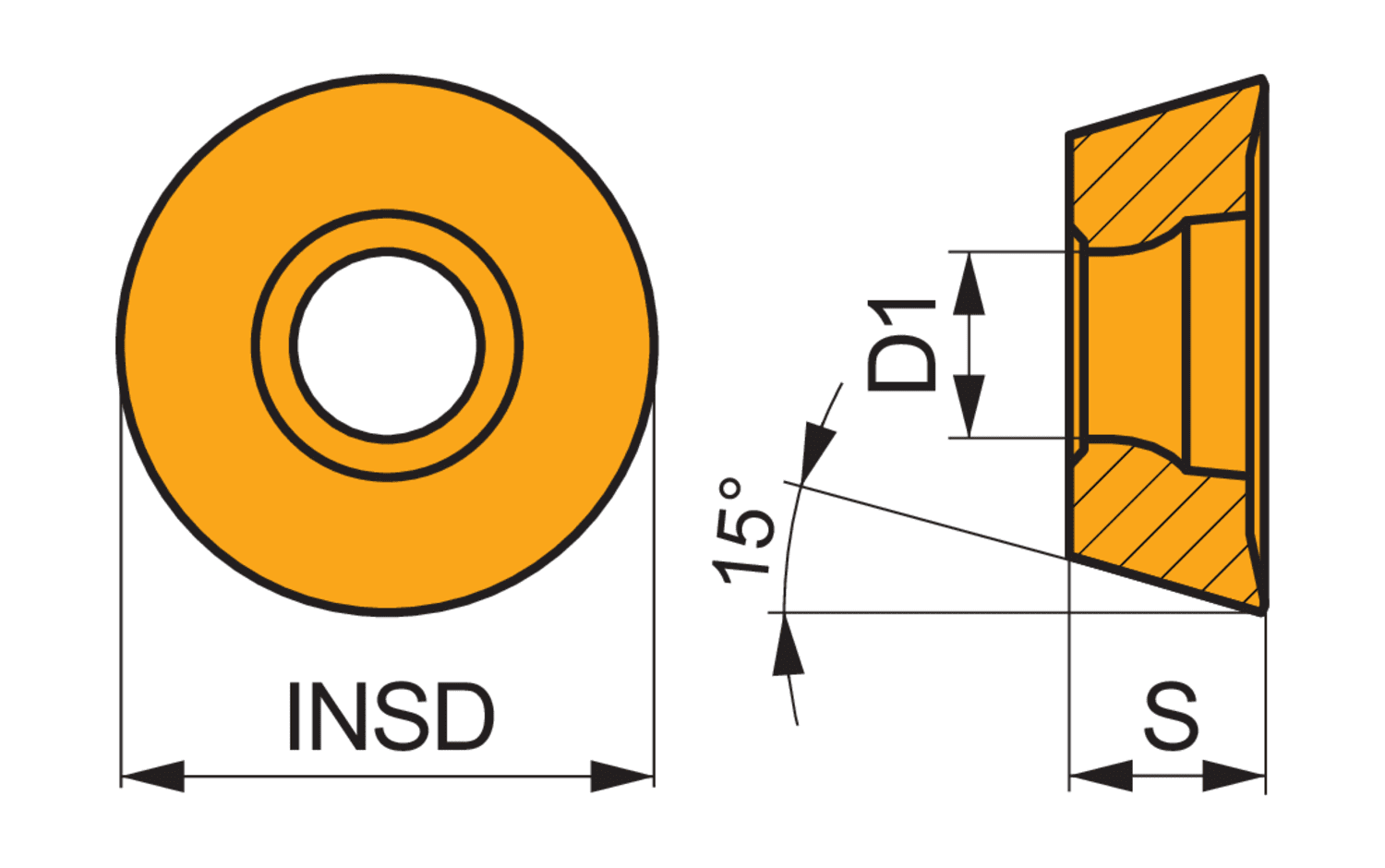

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | M8345 |
