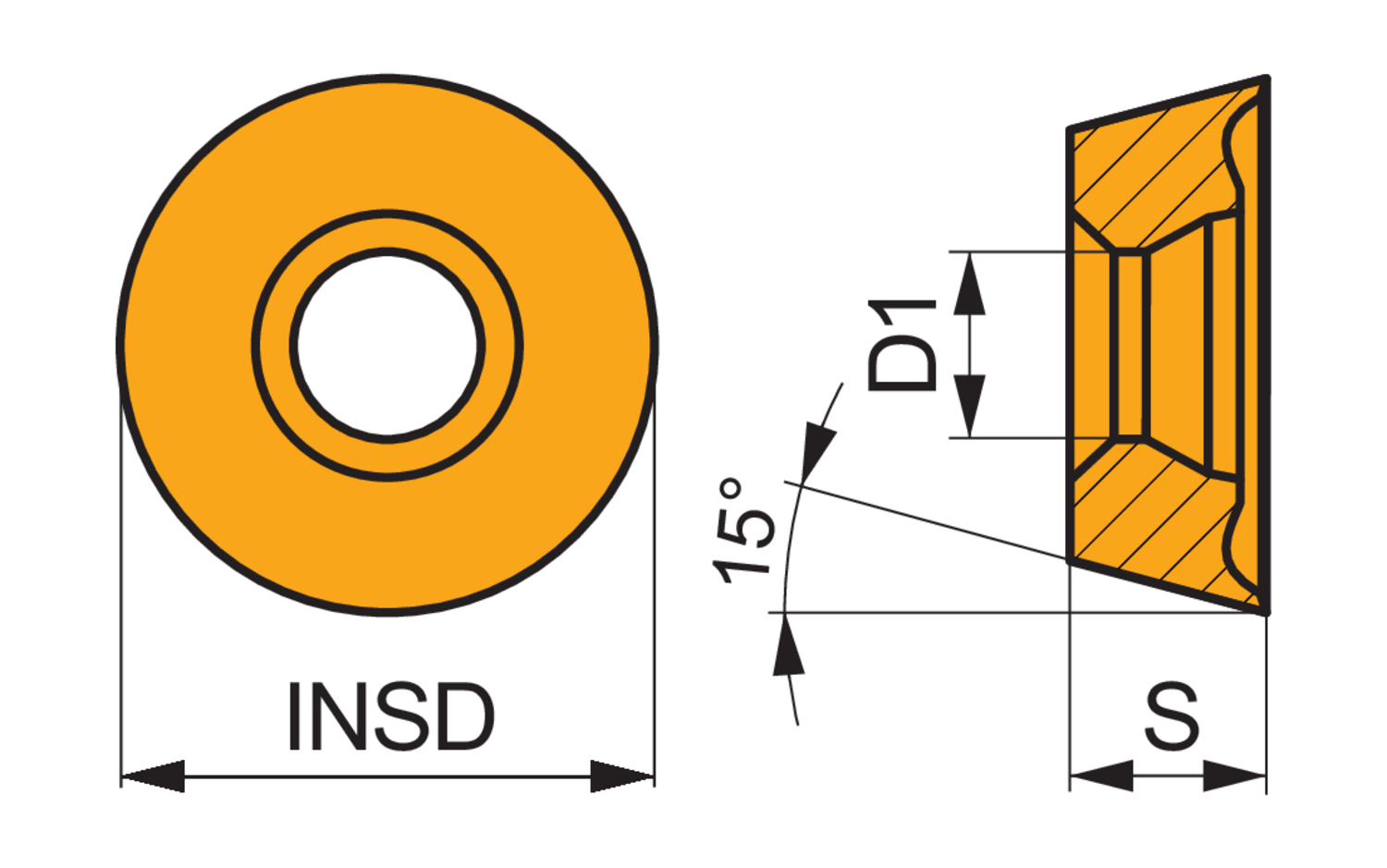

Single-sided milling insert RDHT 12T3 with chip-breakers, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with copy face mills SRD12
- Product Name ISO: RDHT 12T3MO-FA:HF7
- Ordering Code ANSI: RDHT 12T3MO-FA:HF7
- EDP Number: 6751852
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | HF7 |
