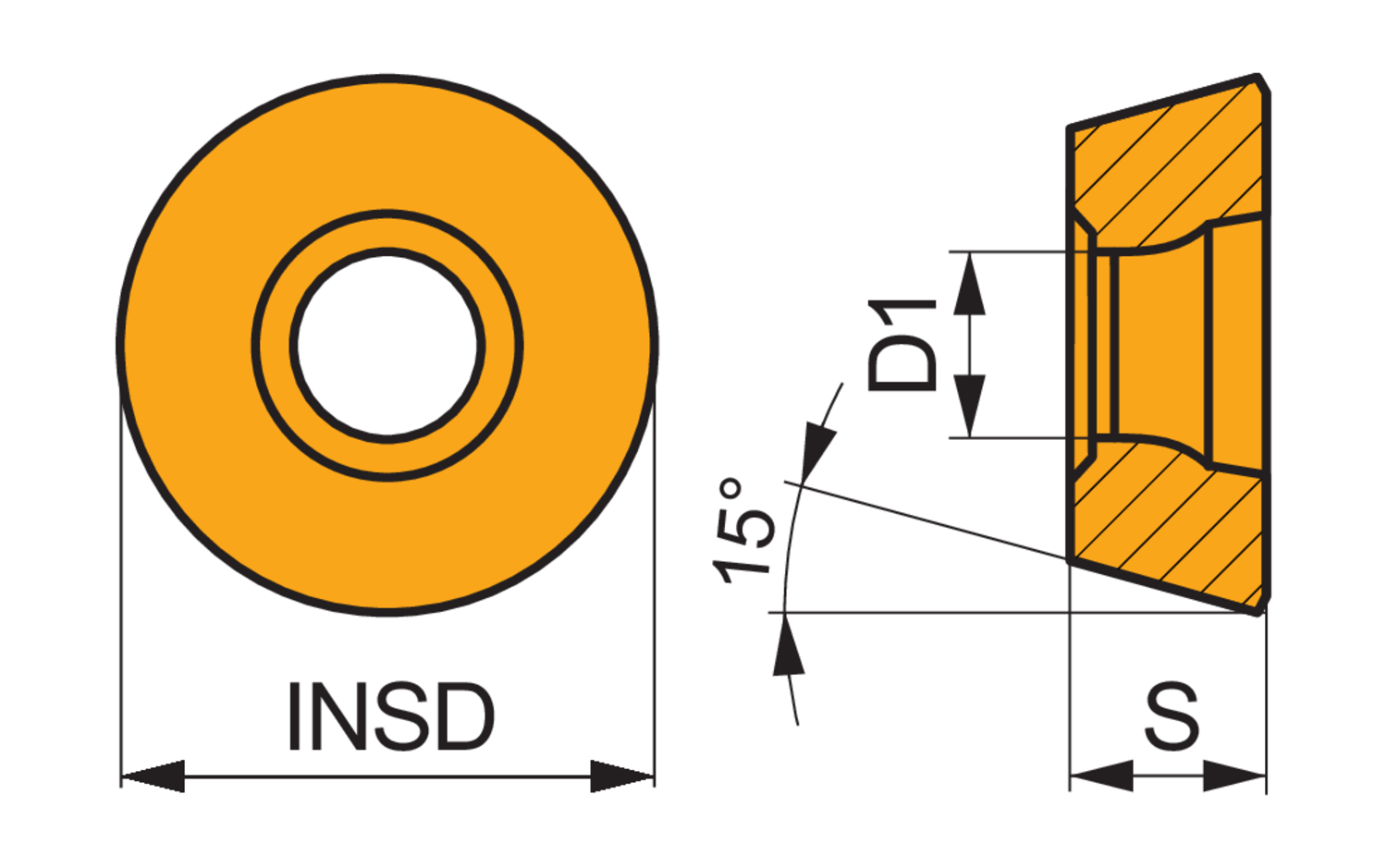

Single-sided milling insert RDHX 0702, round for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide for machining with copy face mills SRD07
- Product Name ISO: RDHX 0702MOT:M8325
- Ordering Code ANSI: RDHX 0702MOT:M8325
- EDP Number: 6756003
- Coating: M8325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Insert Dia. (Mm.) | 7 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | M8325 |
