Single-sided milling insert RDHX 1003, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8345 PVD coated WC-Co carbide for machining with copy face mills SRD10
- Product Name ISO: RDHX 1003MOT:M8345
- Ordering Code ANSI: RDHX 1003MOT:M8345
- EDP Number: 6755965
- Coating: M8345

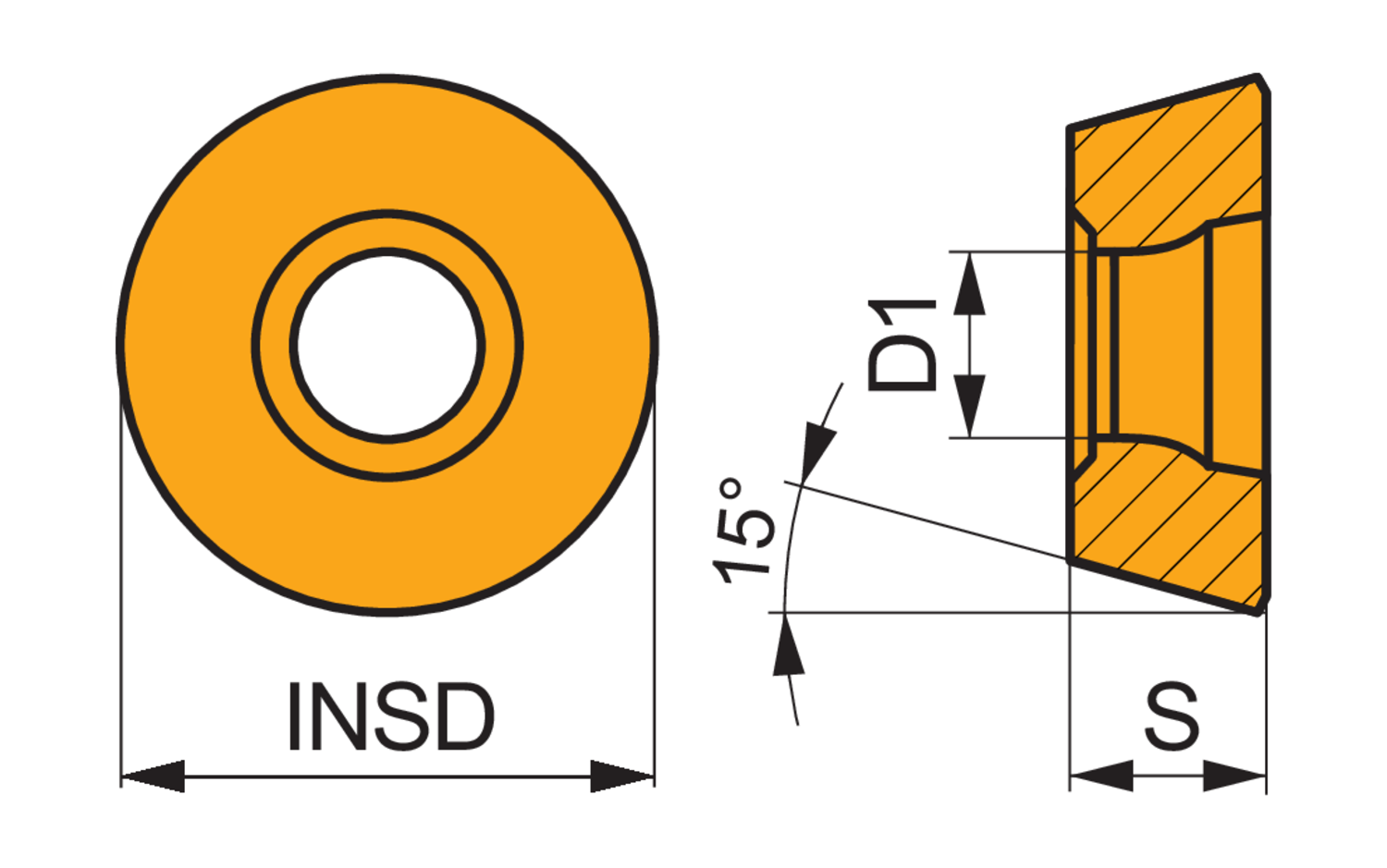

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | M8345 |
