Single-sided milling insert RDHX 12T3, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8345 PVD coated WC-Co carbide for machining with copy face mills SRD12
- Product Name ISO: RDHX 12T3MOT:M8345
- Ordering Code ANSI: RDHX 12T3MOT:M8345
- EDP Number: 6755966
- Coating: M8345
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |

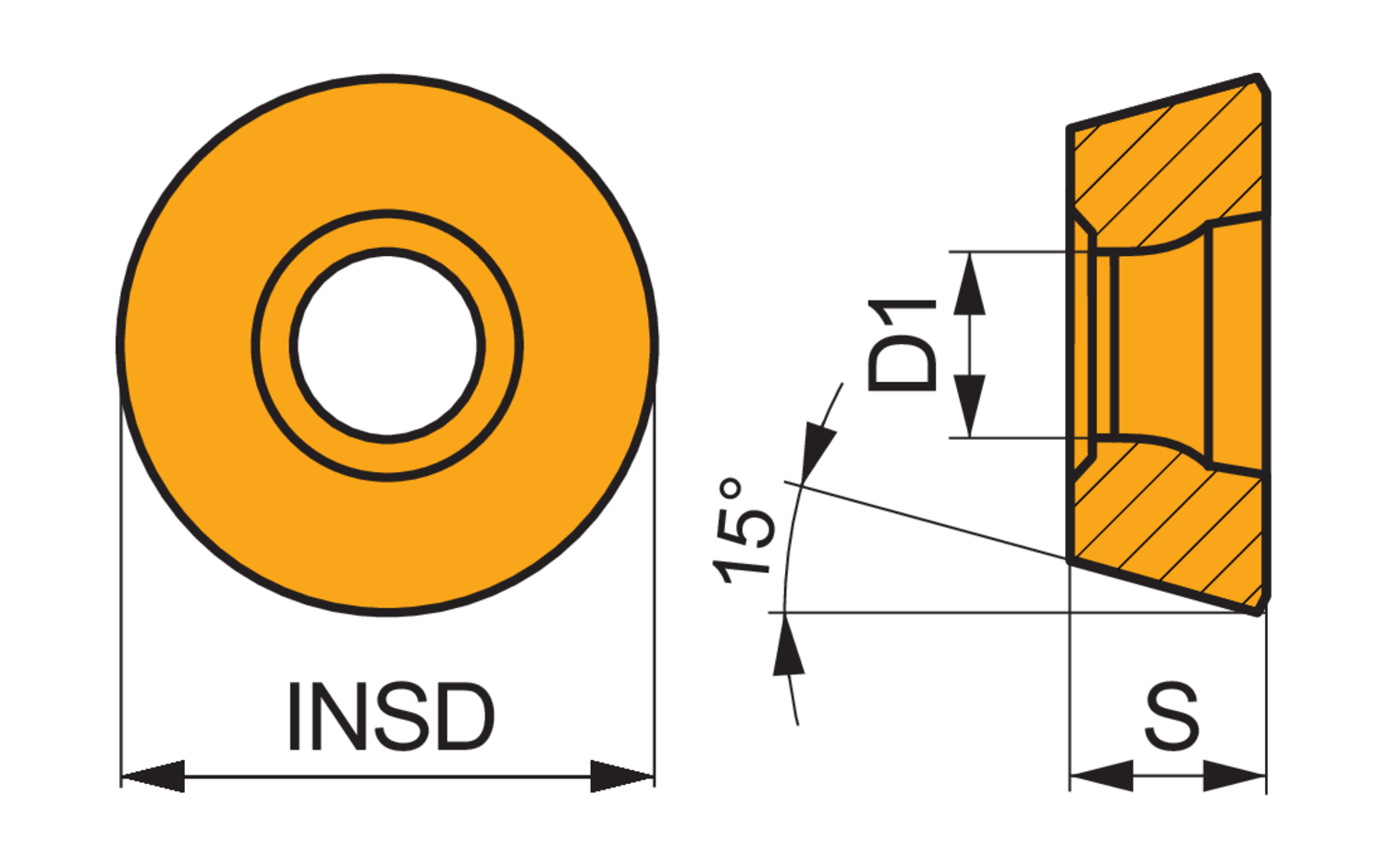

| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8345 |
