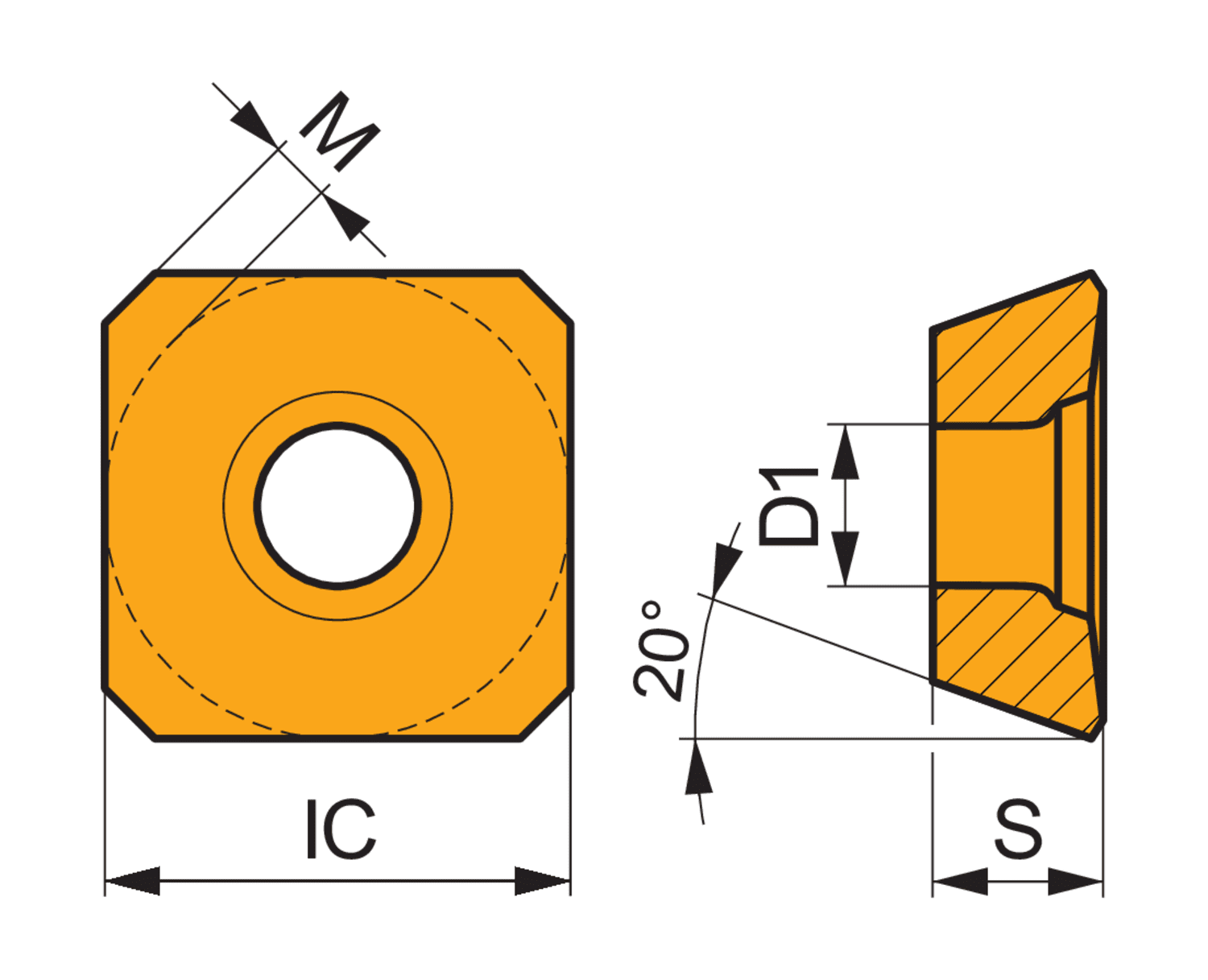

Single-sided milling insert SEET 1204 with chip-breakers, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide
- Product Name ISO: SEET 1204AFSN:8215
- Ordering Code ANSI: SEET 1204AFSN:8215
- EDP Number: 6753407
- Coating: 8215
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6.5 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.256 |
| Coating | 8215 |
