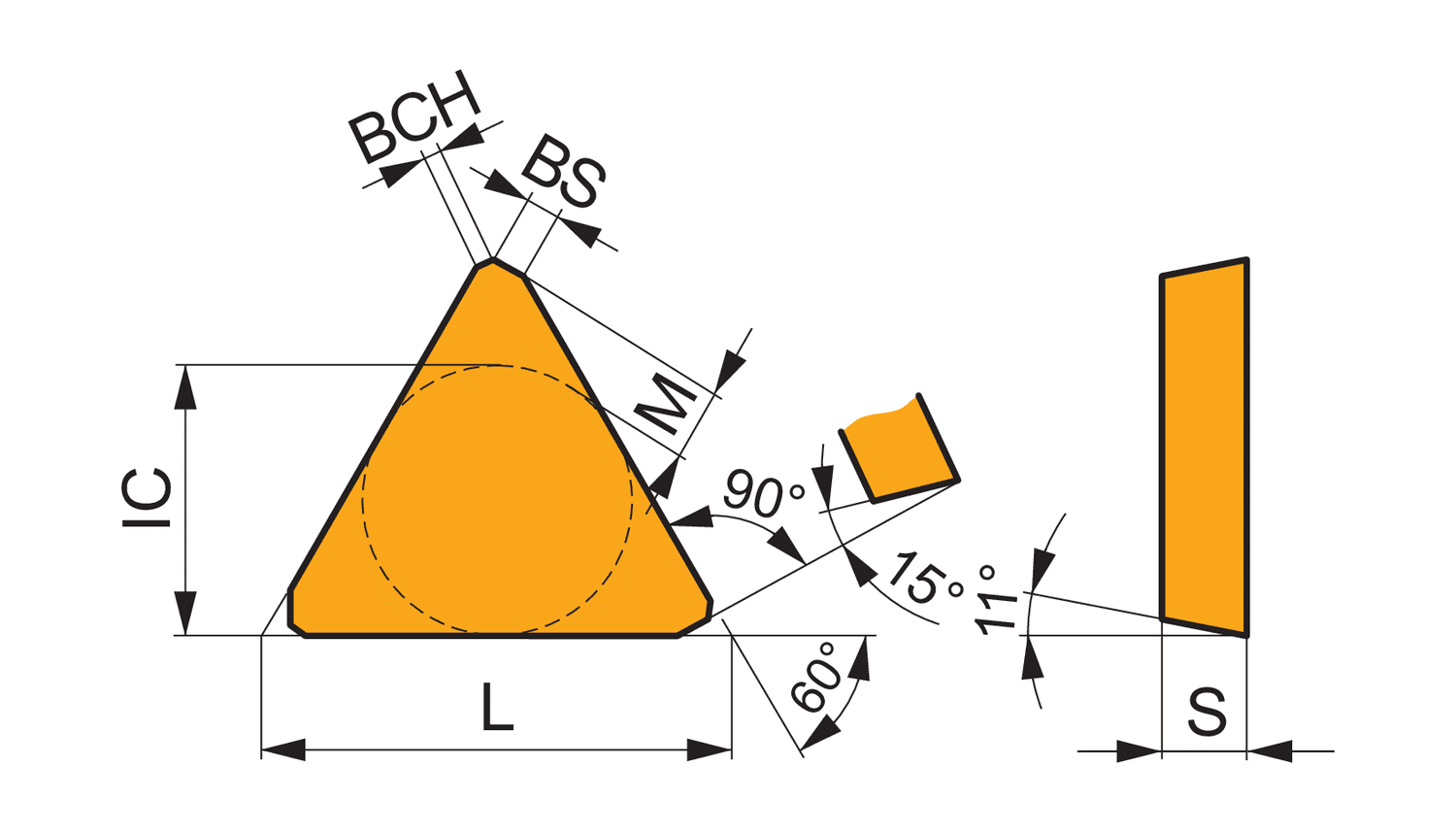

Single-sided milling insert TPKN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: TPKN 1603PDSR:S26
- Ordering Code ANSI: TPKN 32PDSR:S26
- EDP Number: 6751622
- Coating: S26
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Inscribing Circle Dia. (Mm.) | 9.53 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | S26 |
