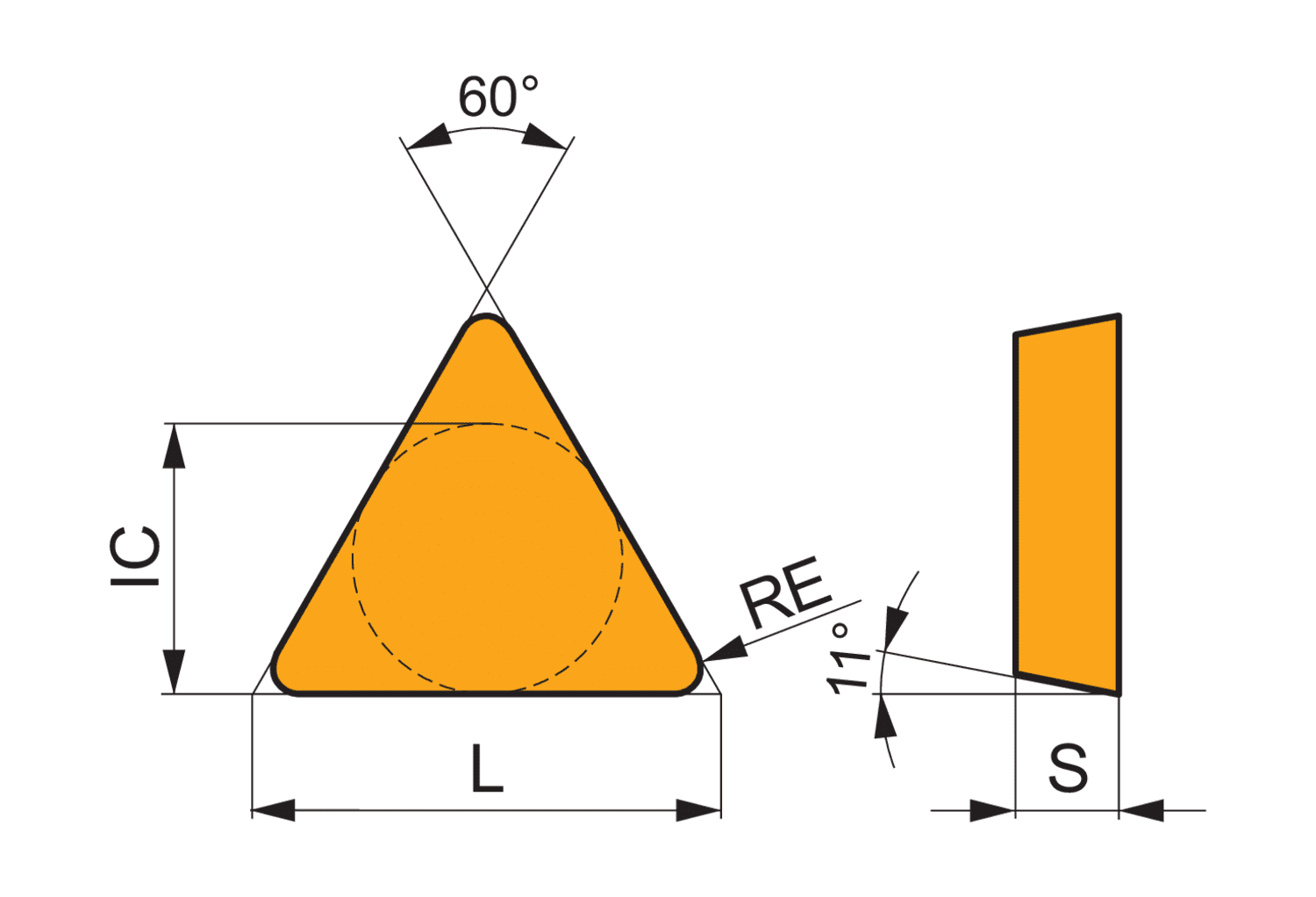

Single-sided milling insert TPUN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-U, H10 uncoated WC-Co carbide within ISO-grade range K15-K30 for machining of cast-iron
- Product Name ISO: TPUN 160304:H10
- Ordering Code ANSI: TPU 321:H10
- EDP Number: 6751783
- Coating: H10
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | H10 |
