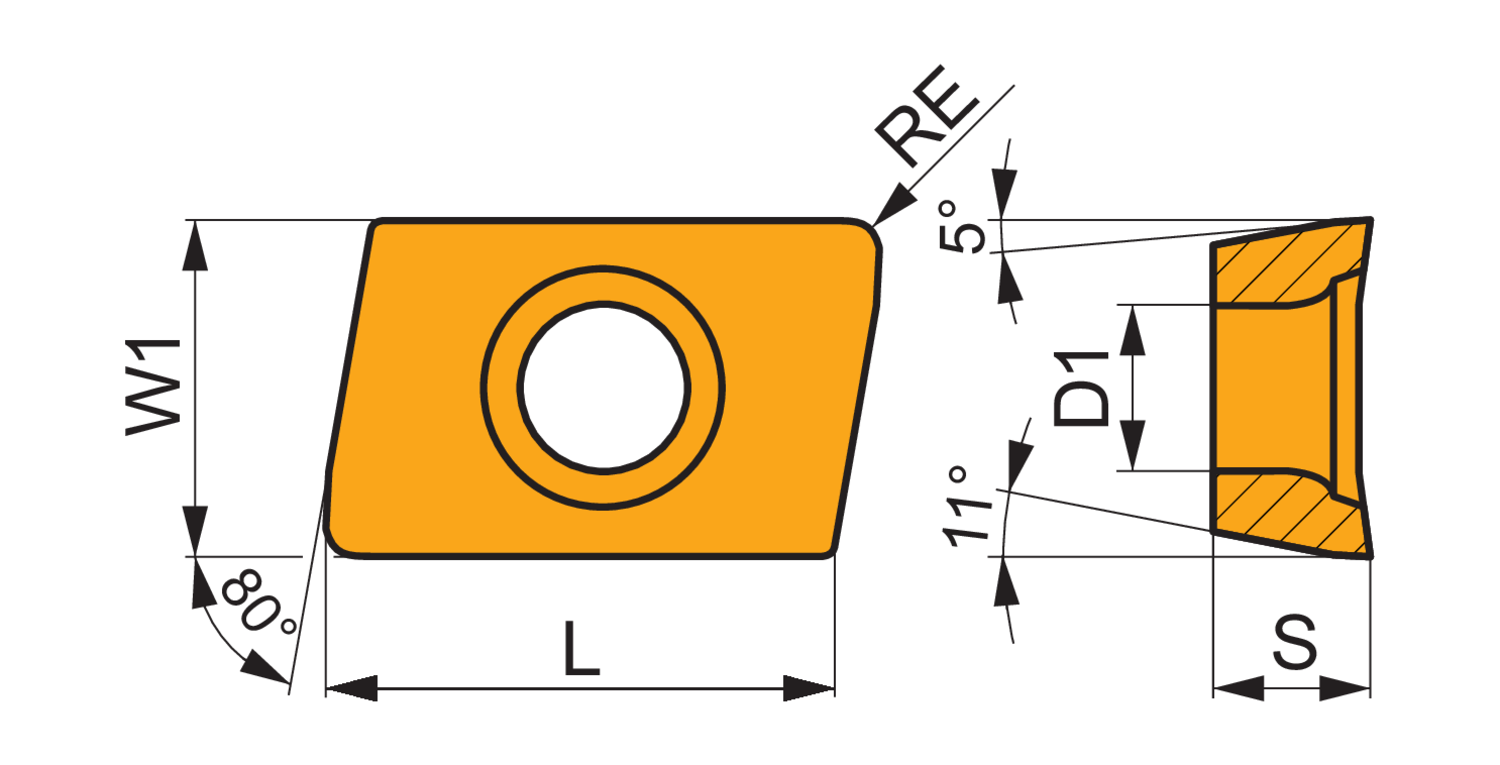

Single-sided milling insert XPHT 1604 with chip-breakers, 80° rhomboid for a maximum depth of cut of .5906", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide for machining with chamfer mills J(T)-SXP16
- Product Name ISO: XPHT 160412E:8215
- Ordering Code ANSI: XPHT 160412E:8215
- EDP Number: 6753426
- Coating: 8215
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 15 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.591 |
| Coating | 8215 |
