Single-sided milling insert ZDEW 1204 with a plane rake surface, special shape and high-feed design for a maximum depth of cut of .063", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with high feed cutters SZD12
- Product Name ISO: ZDEW 120408:M8310
- Ordering Code ANSI: ZDEW 120408:M8310
- EDP Number: 6756271
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

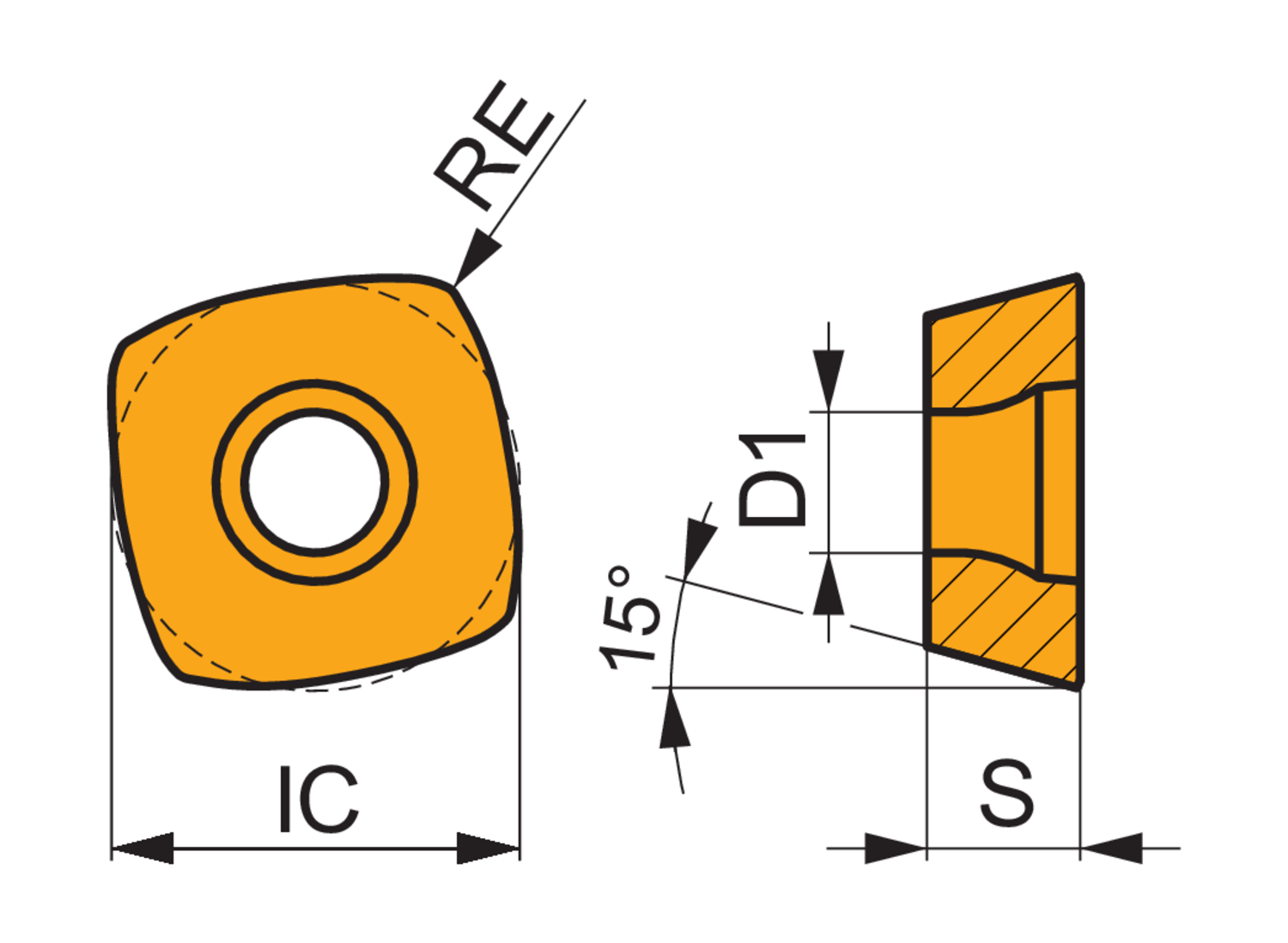

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.063 |
| Coating | M8310 |
