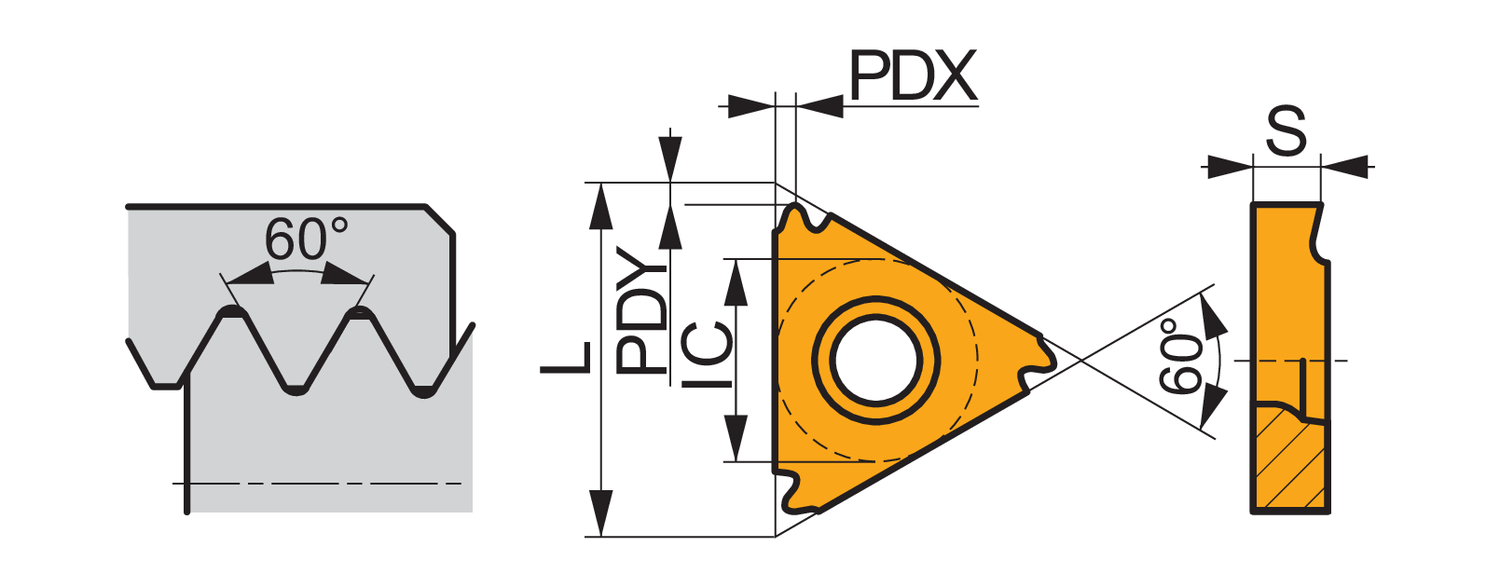

Single-sided threading insert, triangular with an inscribed circle diameter of .375", for left hand cutting partial profile of ISO-metric and UN external threads with 0.5 to 3" pitch and 48 to 8TPI, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
- Product Name ISO: TN 16ELAG60:T8010
- Ordering Code ANSI: TN 16ELAG60:T8010
- EDP Number: 7575319
- Coating: T8010
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Inscribing Circle Dia. (Mm.) | 9.525 |
Insert Thickness (Mm.) | 3.47 |
Coating | T8010 |
