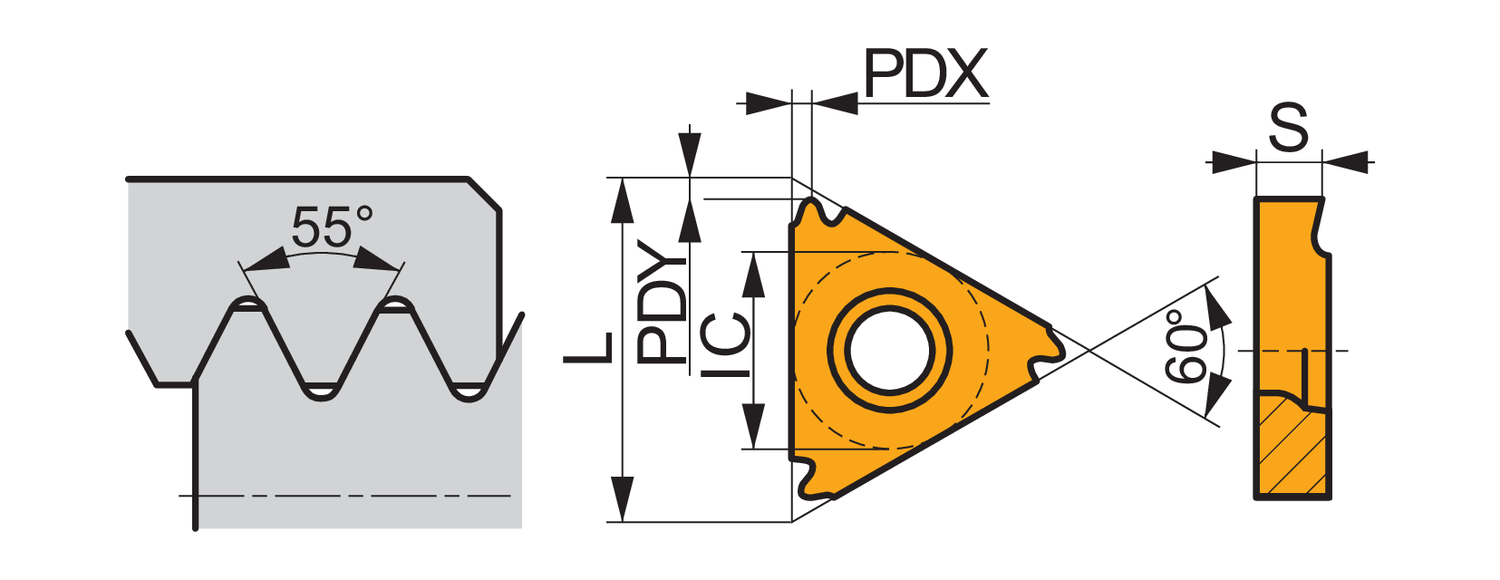

Single-sided threading insert, triangular with an inscribed circle diameter of .375", for right hand cutting partial profile of British Standard external threads with 48 to 8TPI, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
- Product Name ISO: TN 16ERAG55:T8010
- Ordering Code ANSI: TN 16ERAG55:T8010
- EDP Number: 7575316
- Coating: T8010
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Inscribing Circle Dia. (Mm.) | 9.525 |
Insert Thickness (Mm.) | 3.47 |
Coating | T8010 |
