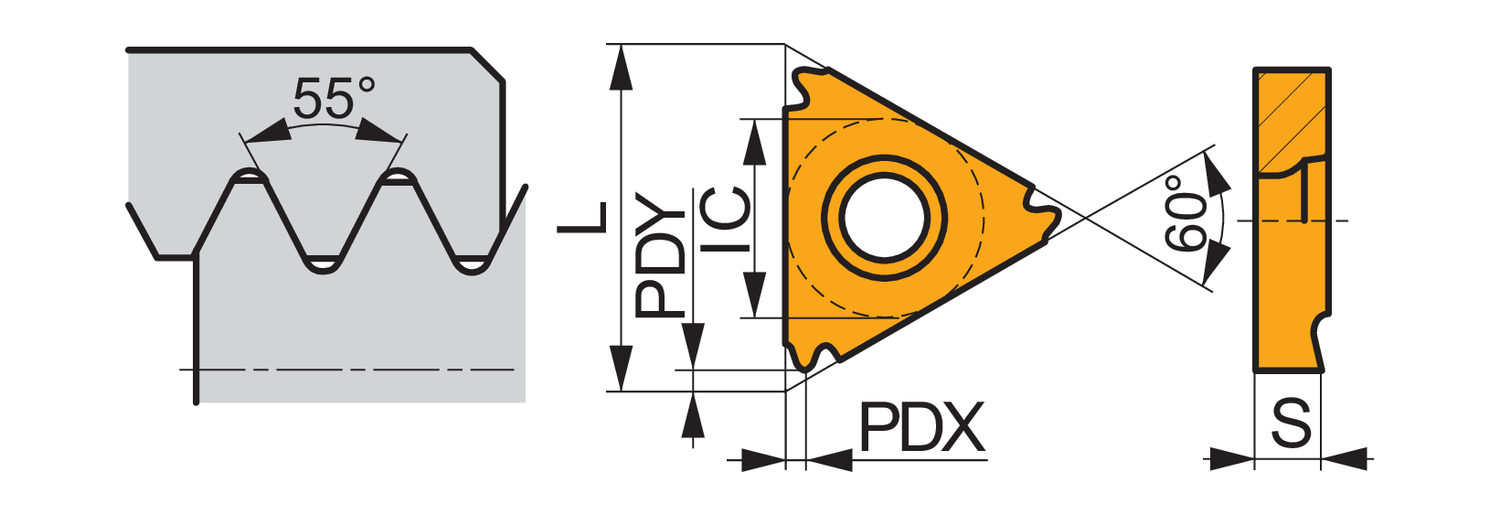

Single-sided threading insert, triangular with an inscribed circle diameter of .375", for right hand cutting partial profile of British Standard internal threads with 48 to 8TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
- Product Name ISO: TN 16NRAG55:T8030
- Ordering Code ANSI: TN 16NRAG55:T8030
- EDP Number: 6755528
- Coating: T8030
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Inscribing Circle Dia. (Mm.) | 9.525 |
Insert Thickness (Mm.) | 3.47 |
Coating | T8030 |
