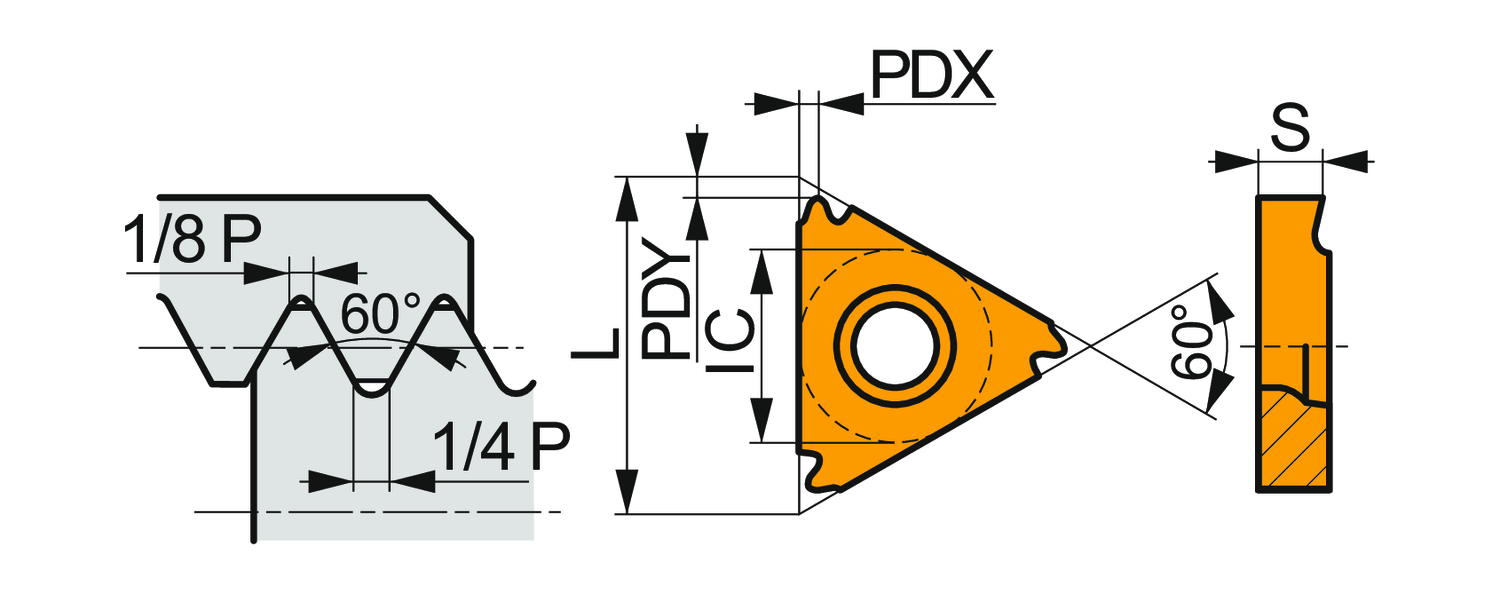

Single-sided threading insert, triangular with an inscribed circle diameter of .500", for right hand cutting of ISO-metric external threads with 4" pitch, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
- Product Name ISO: TN 22ER400M:T8010
- Ordering Code ANSI: TN 22ER400M:T8010
- EDP Number: 7575388
- Coating: T8010
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Inscribing Circle Dia. (Mm.) | 12.7 |
Insert Thickness (Mm.) | 4.71 |
Thread Pitch (In.) | 0.157 |
Coating | T8010 |
