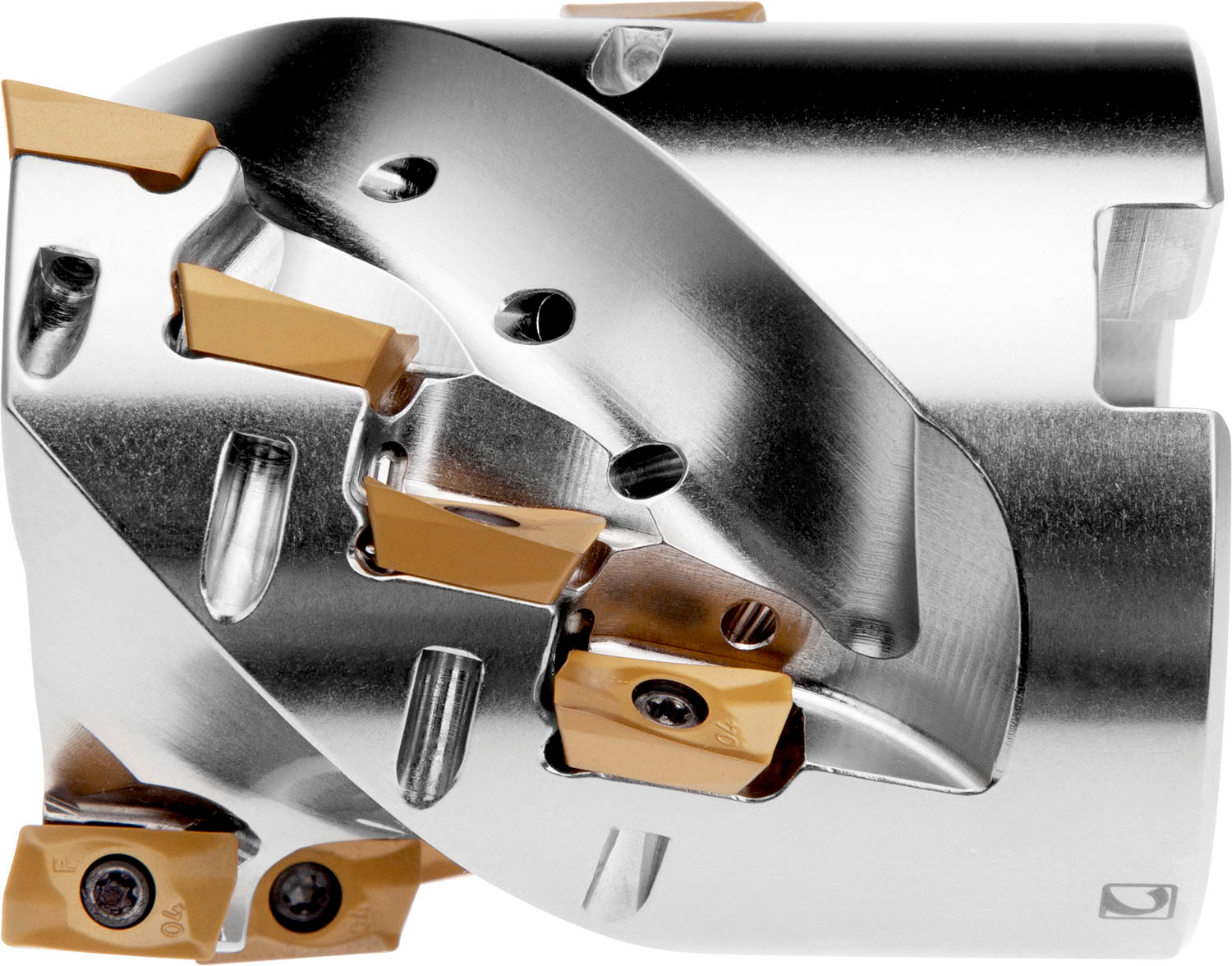

Shoulder mill with positve/negative geometry which utilises 12 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 2.000'' with 90° approach angle and .750'' connection bore according to DIN 8030, 1.457'' functional and 2.362'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling
- Product Name ISO: 200T03R-IS90AD11E146-C
- Ordering Code ANSI: 200T03R-IS90AD11E146-C
- EDP Number: 6790023
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 50.8 |
| Cutting Diameter (In.) | 2 |
| Connection Diameter (Mm.) | 19.1 |
| Max Depth of Cut (In.) | 1.457 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 – Helical Mill |
| Flute Count | 3 |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
