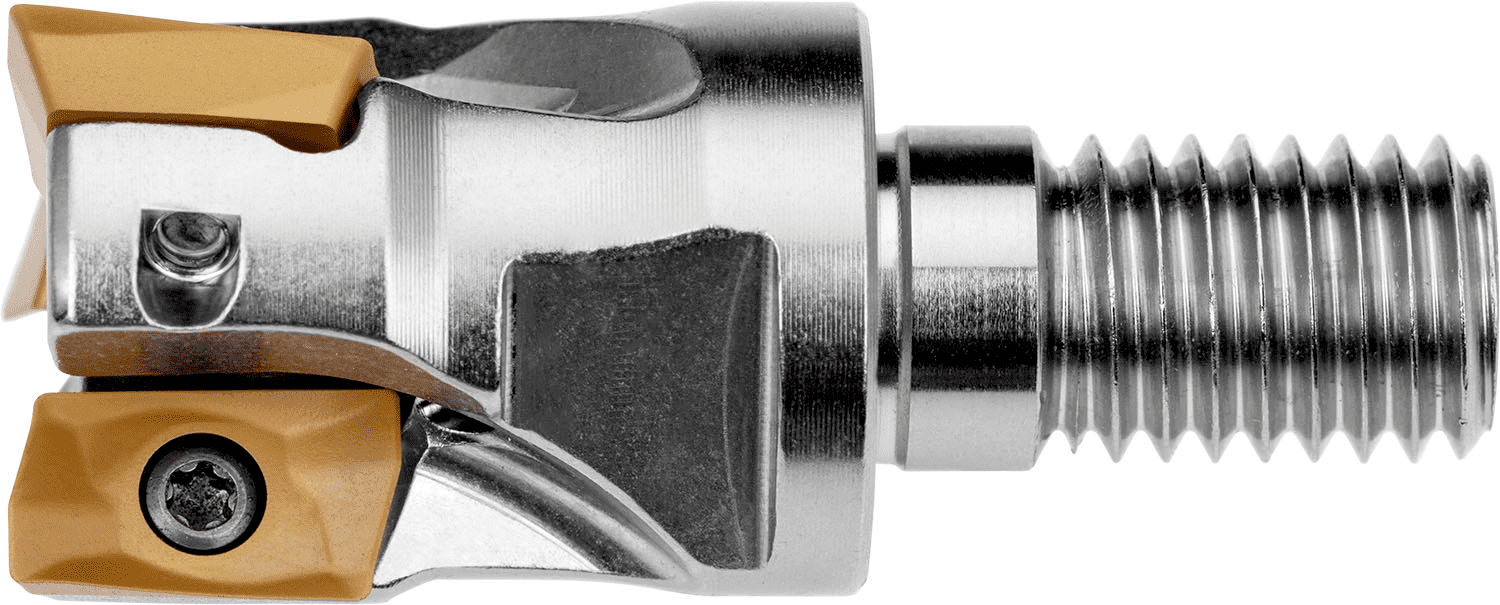

Shoulder mill with positve/negative geometry which utilises 2 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter .625'' with 90° approach angle and M8 threaded shank for standard modular tool-holders, .945'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
- Product Name ISO: 062A2R094M08-ISAD11E-C
- Ordering Code ANSI: 062A2R094M08-ISAD11E-C
- EDP Number: 6790624
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

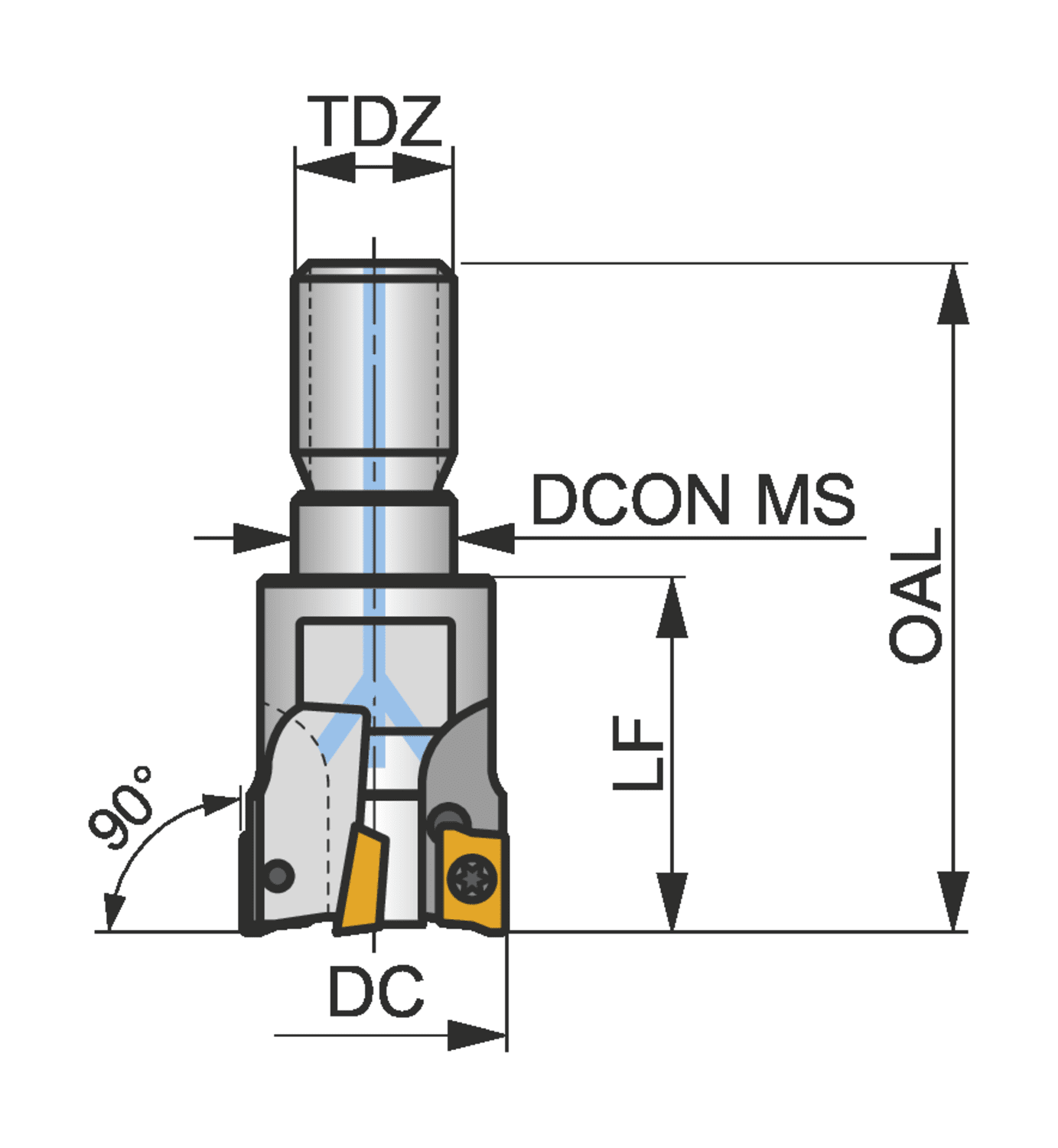

Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 15.9 |
Cutting Diameter (In.) | 0.625 |
Connection Diameter (Mm.) | 8.5 |
Overall Length (Mm.) | 38 |
Connection Diameter (In.) | 0.335 |
Overall Length (In.) | 1.496 |
Shank | Threaded Coupling |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
Thread Diameter Size | M8 |
