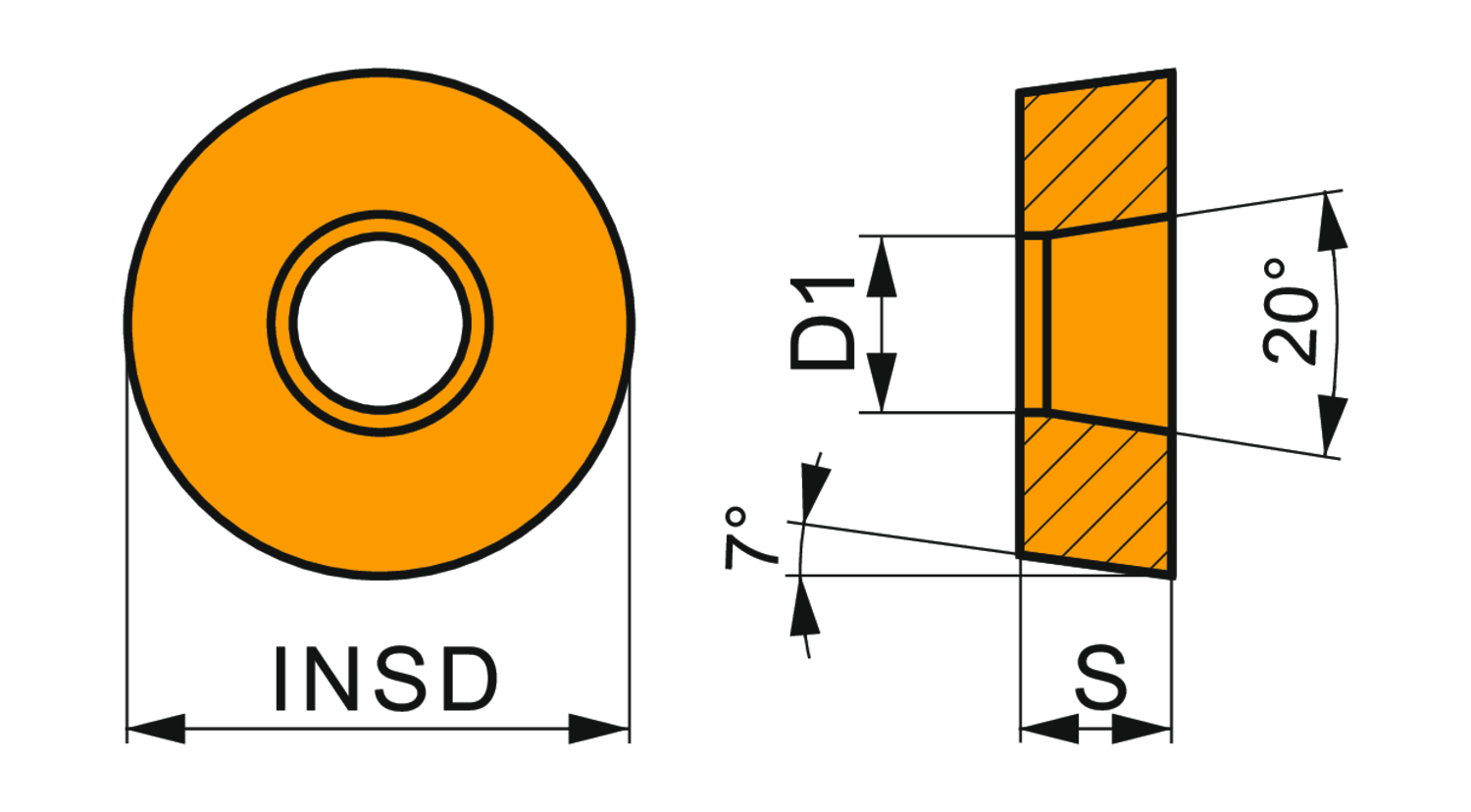

Special design positive turning insert, round with 7° clearance, a diameter of 20mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 341 with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels
- Product Name ISO: RCMX 2006MOS-341:6630
- Ordering Code ANSI: RCMX 2006MOS-341:6630
- EDP Number: 6751662
- Coating: 6630
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Fixing Hole Diameter (Mm.) | 6.5 |
| Insert Dia. (Mm.) | 20 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | 6630 |
