Special design negative turning insert, square with inscribed circle diameter of 19.05mm, 11mm thick, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges with facet, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to medium machining of steels
- Product Name ISO: SNMX 191140SN-RF:T9315
- Ordering Code ANSI: SNMX 191140SN-RF:T9315
- EDP Number: 6753322
- Coating: T9315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

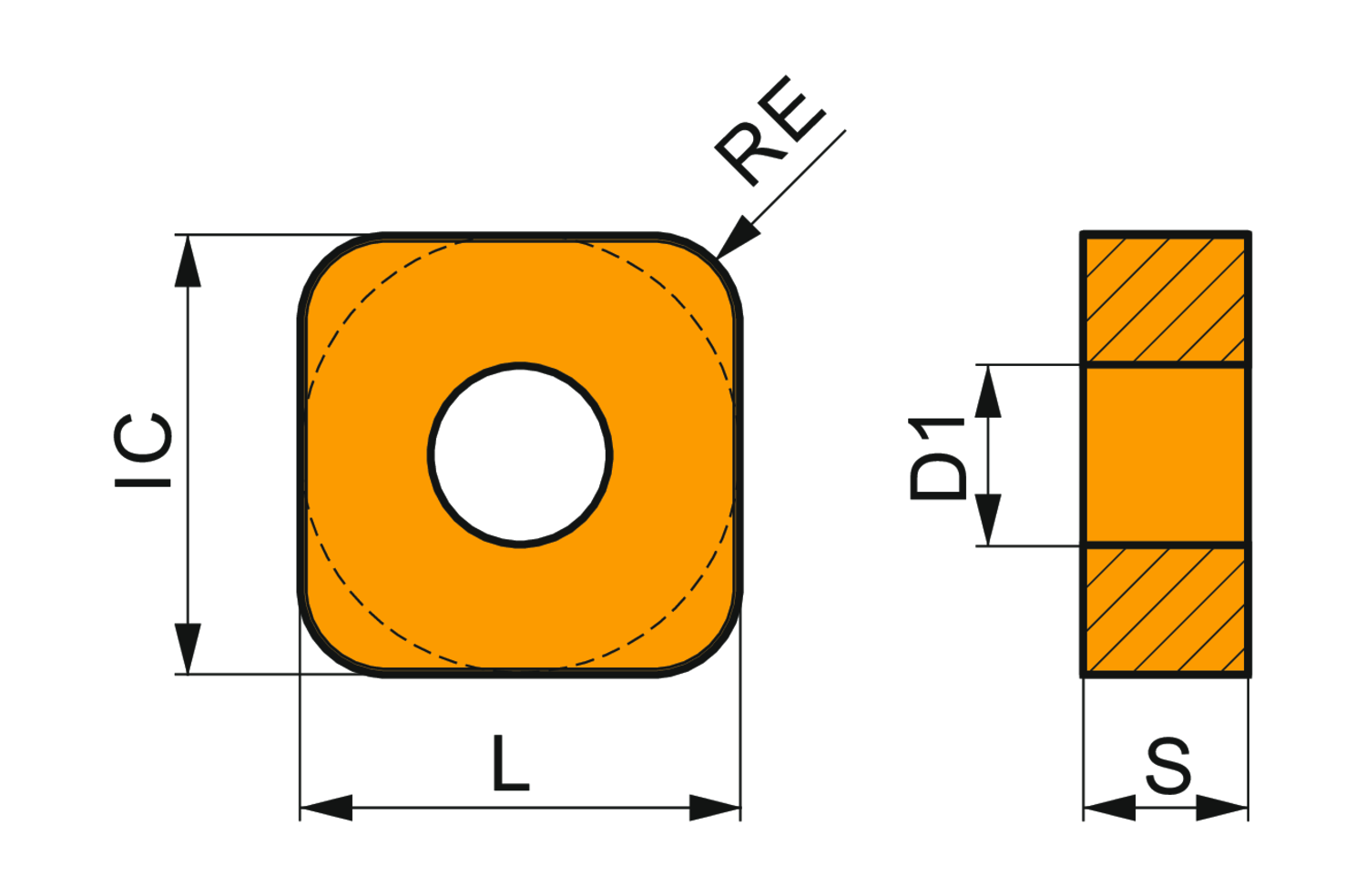

| Depth of Cut Maximum (Mm.) | 7 |
| Corner Radius (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 7.75 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 11 |
| Max Depth of Cut (In.) | 0.276 |
| Coating | T9315 |
