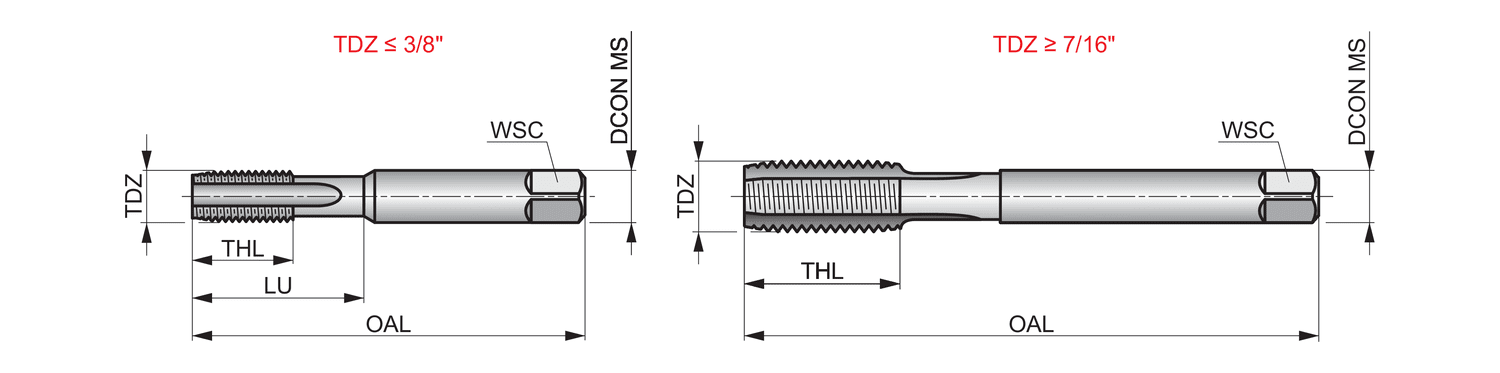

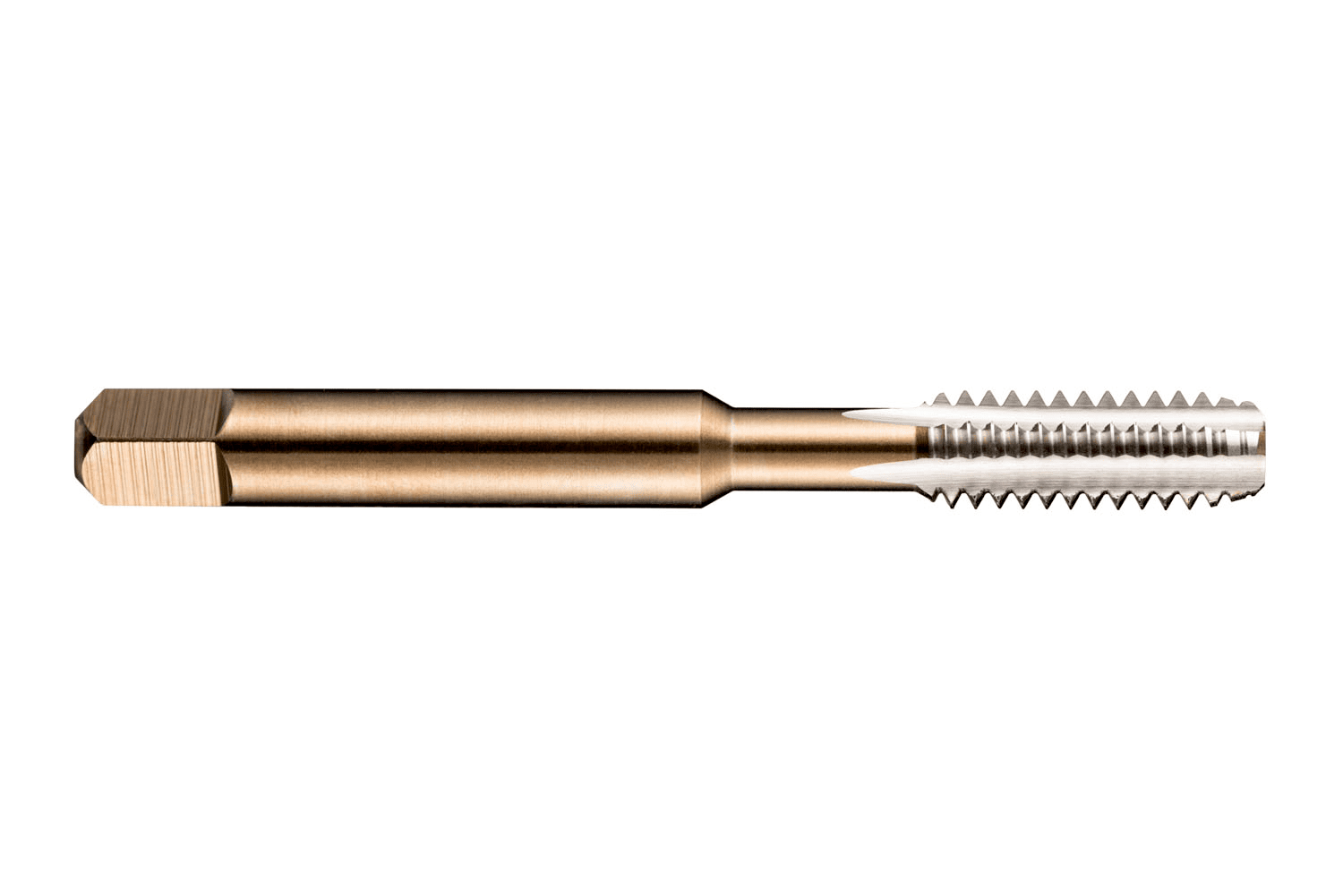

Straight flute hand tap NO1 with a 6-8xP taper lead, for Unified National Fine thread UNF 5/16" with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3180" shank and 0.2380" square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
- Product Name ISO: E0715/16NO1
- Ordering Code ANSI:E0715/16NO1
- EDP Number: 0349625
- Coating: Bright
- Material Code (BMC): HSS
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 8.08 |
| Overall Length (Mm.) | 69.06 |
| Threads Per Inch | 24 |
| Connection Diameter (In.) | 0.318 |
| Overall Length (In.) | 2.7188 |
| Material Code | HSS |
| Coating | Bright |
| Shank | Cylindrical Shank with Square |
| Flute Count | 4 |
| Tap Application | Through or Blind Hole |
| Thread Form | UNF - Unified Fine |
| Flute Geometry | Straight Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 5/16 |
