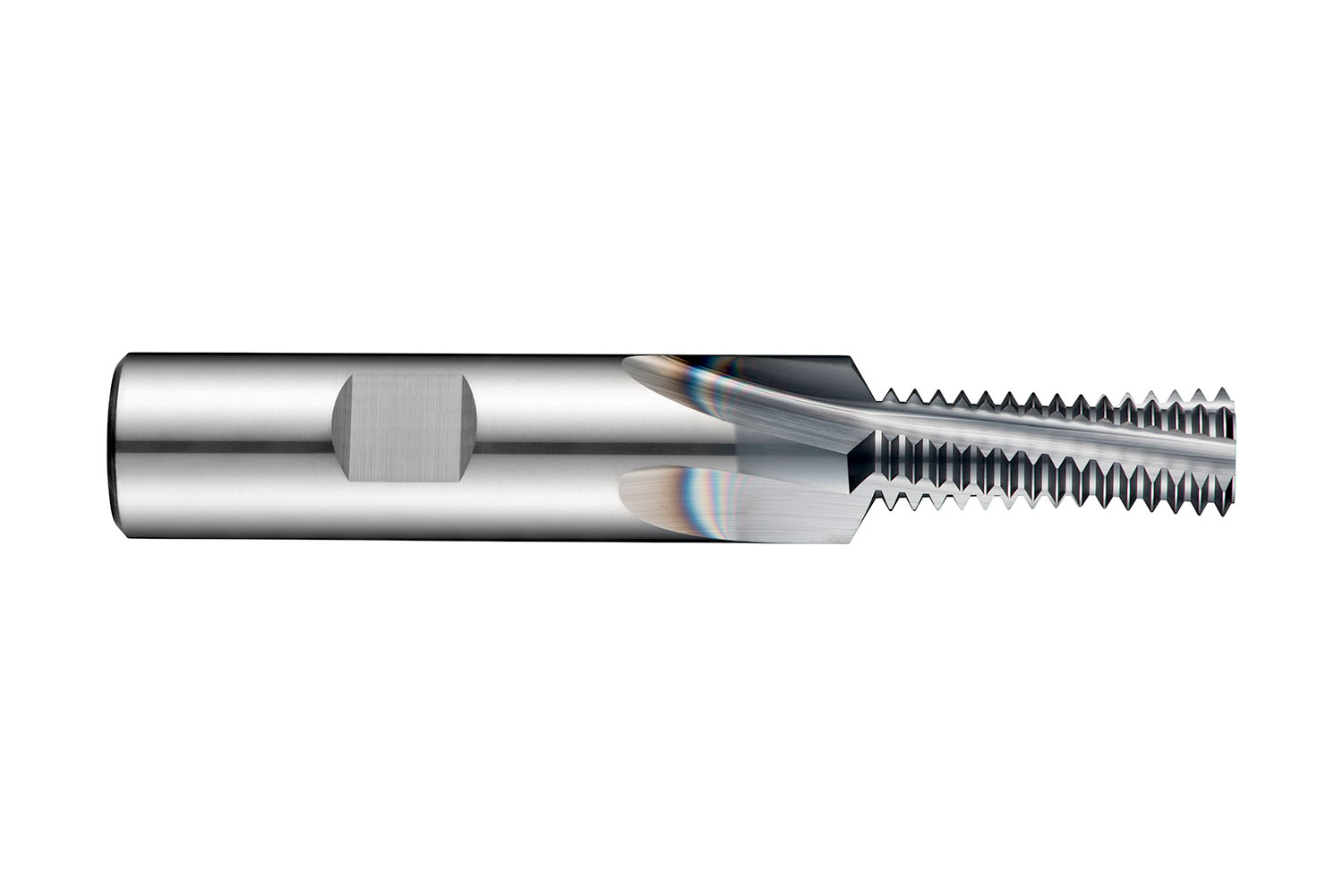

Thread and chamfer milling cutter, for ISO-Metric thread = M10 with 1.50 mm pitch, dimensions according to DORMER standard with 3 flutes, 8.2mm cutting diameter and 12mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 21mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys
- Product Name ISO: J2058.2X1.50
- Ordering Code ANSI: J2058.2X1.50
- EDP Number: 46821298
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |

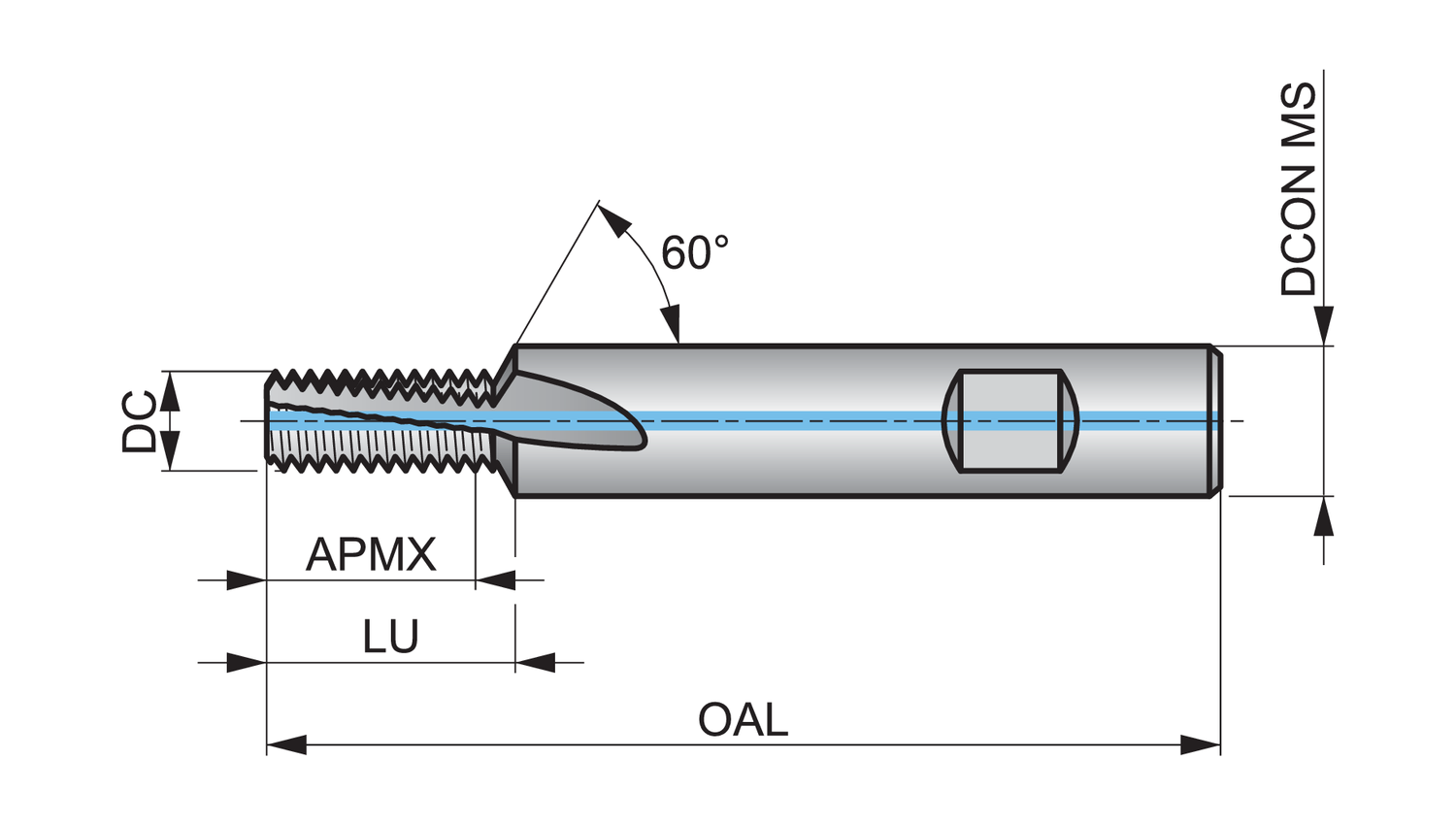

Cutting Diameter (Mm.) | 8.2 |
Cutting Diameter (In.) | 0.3228 |
Depth of Cut Maximum (Mm.) | 21 |
Connection Diameter (Mm.) | 12 |
Overall Length (Mm.) | 83 |
Usable Length (Mm.) | 22.8 |
Connection Diameter (In.) | 0.4724 |
Overall Length (In.) | 3.2677 |
Material Code | HM |
Coating | Alcrona Pro |
Shank | Cylindrical Shank DIN 6535 HB |
Flute Count | 3 |
Thread Form | M - Metric Coarse |
Flute Geometry | Spiral Flute Geometry |
Cutting Direction | Right |
Cooling | 1 |
Thread Diameter Size | M10 |
